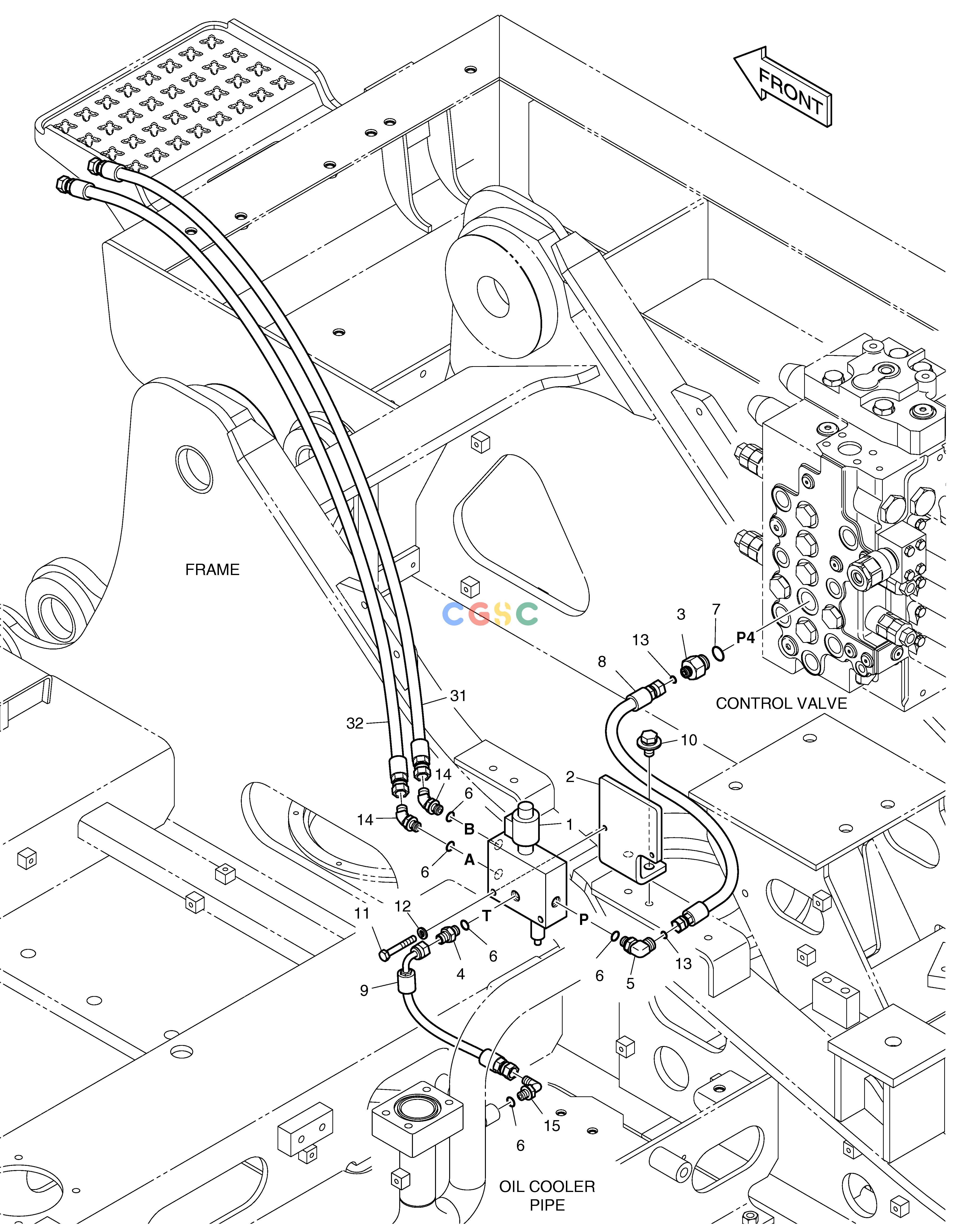

斗山零件查询MAIN PIPING - QUICK FIT DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
630 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1016147A
|
[-] |
MAIN PIPING;QUICK FIT
|
|
| 1. |
426-00287
|
[1] |
VALVE;QUICK-FIT
|
|
| 10. |
DS0025019
|
[2] |
BOLT
|
|
| 11. |
S0556466
|
[2] |
BOLT
|
|
| 12. |
S5102503
|
[2] |
. WASHER
|
|
| 13. |
S8030041
|
[2] |
O-RING
|
|
| 14. |
2181-2419D1
|
[2] |
ELBOW
|
|
| 15. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 2. |
K1013581
|
[1] |
BRACKET
|
|
| 3. |
DS2232127
|
[1] |
ADAPTER
|
|
| 31. |
DS2094122
|
[1] |
HOSE
|
|
| 31. |
2184-1026D253
|
[1] |
HOSE
|
|
| 32. |
DS2094122
|
[1] |
HOSE
|
|
| 32. |
2184-1026D253
|
[1] |
HOSE
|
|
| 4. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 5. |
DS2304009
|
[1] |
ELBOW
|
|
| 6. |
S8000111
|
[5] |
O-RING
|
|
| 7. |
S8000181
|
[1] |
O-RING
|
|
| 8. |
DS2011602
|
[1] |
HOSE
|
|
| 9. |
DS2093130
|
[1] |
HOSE
|
|
