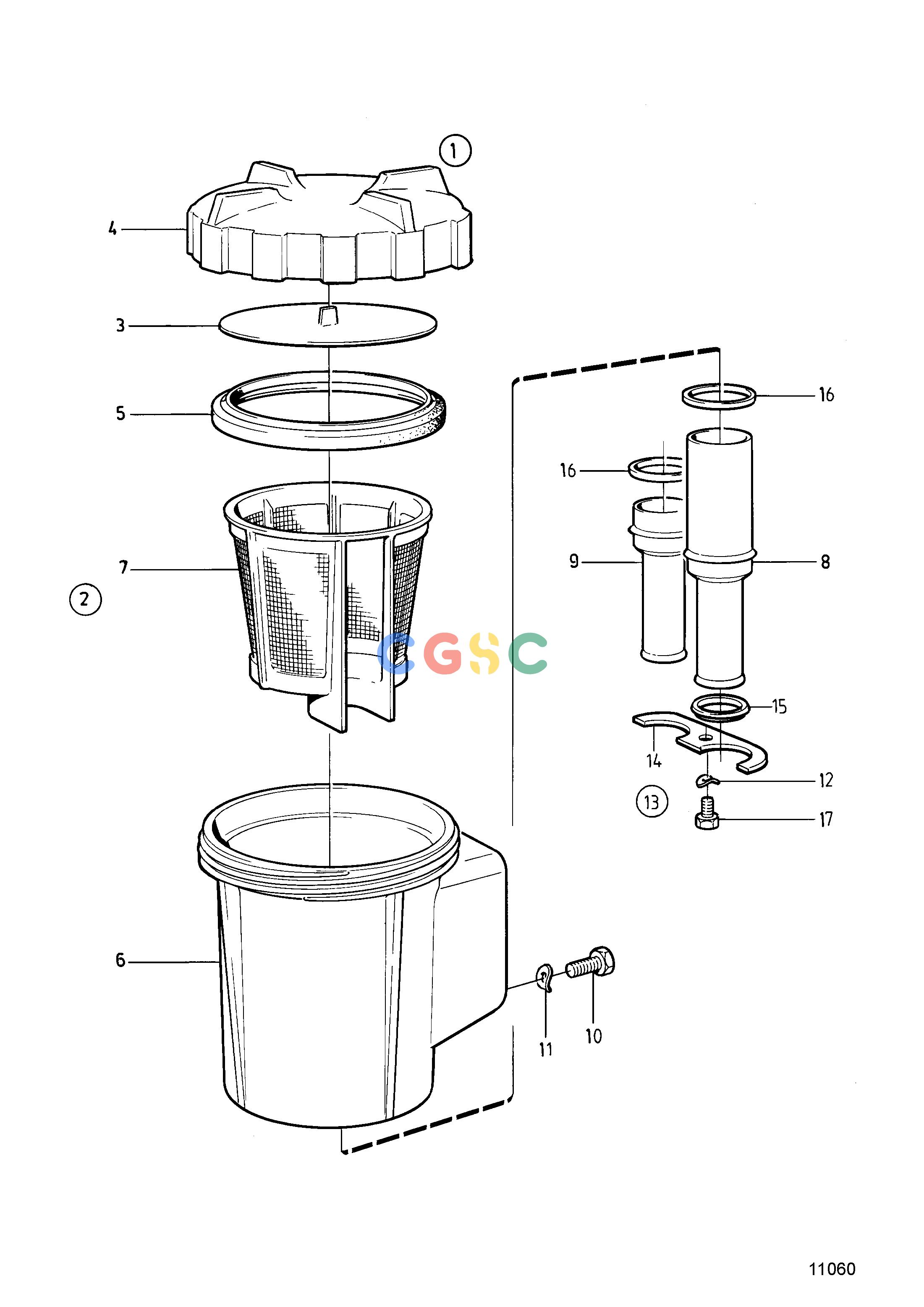

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentSeawater FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
158 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829711
|
[1] |
Coolant filter
|
|
| 2. |
842924
|
[1] |
Strainer
|
|
| 3. |
842982
|
[1] |
Pressure plate
|
|
| 4. |
842722
|
[1] |
Cover
|
|
| 5. |
842724
|
[1] |
Seal
|
|
| 6. |
|
|
|
|
| 7. |
842723
|
[1] |
Strainer
|
|
| 8. |
829689
|
[1] |
Connecting pipe
|
|
| 9. |
829690
|
[1] |
Connecting pipe
|
|
| 10. |
955296
|
[4] |
Hexagon screw
|
|
| 11. |
941907
|
[4] |
Spring washer
|
|
| 12. |
941906
|
[1] |
Spring washer
|
|
| 13. |
860833
|
[1] |
Retainer
|
(829691)
|
| 14. |
21211745
|
[1] |
Retainer
|
|
| 15. |
847108
|
[2] |
Pipe retainer
|
|
| 16. |
858986
|
[2] |
Sealing ring
|
|
| 17. |
965175
|
[1] |
Flange screw
|
L=12mm
|
| 17. |
955270
|
[1] |
Hexagon screw
|
L=14mm, for 829691
|
