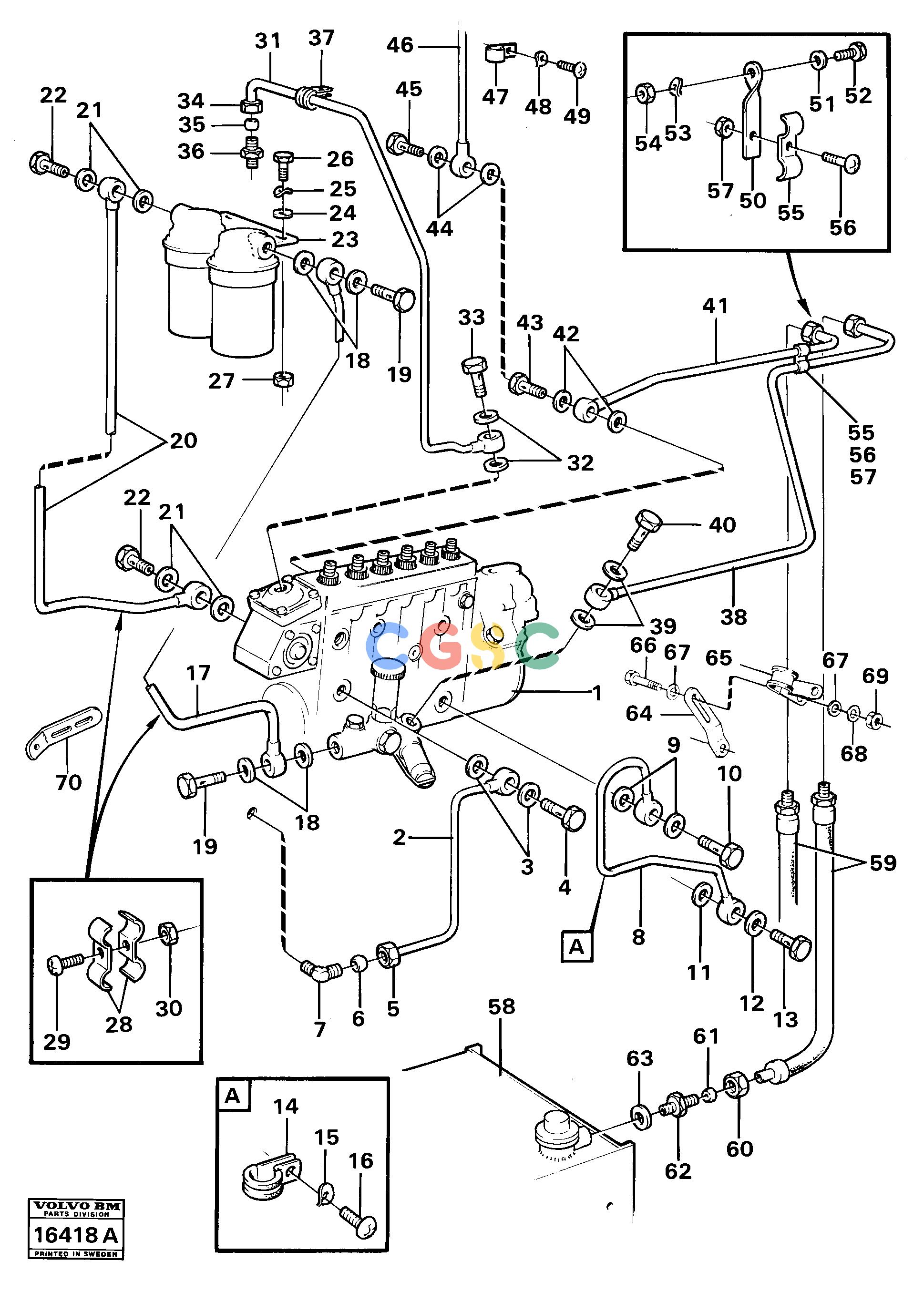

沃尔沃零件查询5350 Fuel system5350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
562 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE954356
|
[0001] |
Fitting nut
|
|
| 47. |
VOE7121563
|
[0001] |
Clamp
|
|
| 48. |
VOE13941906
|
[0001] |
Washer
|
|
| 49. |
VOE950044
|
[0001] |
Cross recessed screw
|
|
| 50. |
|
[0002] |
Bracket
|
|
| 51. |
VOE13940097
|
[0002] |
Washer
|
|
| 52. |
VOE13940115
|
[0002] |
Screw
|
|
| 53. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 54. |
VOE13955827
|
[0002] |
Nut
|
|
| 55. |
VOE7402404
|
[0004] |
Clamp
|
|
| 56. |
VOE950048
|
[0003] |
Cross recessed screw
|
|
| 6. |
VOE954364
|
[0001] |
Ferrule
|
|
| 57. |
VOE955825
|
[0003] |
Hexagon nut
|
|
| 58. |
|
[0001] |
Fuel tank
|
|
| 59. |
VOE4737702
|
[0002] |
Fuel hose
|
|
| 60. |
VOE956983
|
[0002] |
Fitting nut
|
|
| 61. |
VOE980781
|
[0002] |
Ferrule
|
|
| 62. |
VOE941754
|
[0002] |
Nipple
|
|
| 63. |
VOE957178
|
[0002] |
Gasket
|
|
| 64. |
VOE414692
|
[0001] |
Bracket
|
MO 136395 -
|
| 65. |
VOE18387
|
[0001] |
Clamp
|
MO 136395 -
|
| 66. |
VOE950047
|
[0001] |
Cross recessed screw
|
MO 136395 -
|
| 7. |
VOE329638
|
[0001] |
Elbow nipple
|
|
| 67. |
VOE955893
|
[0002] |
Plain washer
|
MO 136395 -
|
| 68. |
VOE13941906
|
[0001] |
Washer
|
MO 136395 -
|
| 69. |
VOE955825
|
[0001] |
Hexagon nut
|
MO 136395 -
|
| 70. |
|
[0001] |
Bracket
|
MO 136395-
|
| 8. |
VOE466499
|
[0001] |
Tube
|
|
| 9. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 1. |
|
[0001] |
Injcection pump
|
|
| 10. |
VOE60113509
|
[0001] |
Hollow screw
|
|
| 11. |
VOE13947624
|
[0001] |
Plane gasket
|
|
| 12. |
VOE13947621
|
[0001] |
Plane gasket
|
|
| 13. |
VOE942007
|
[0001] |
Hollow screw
|
|
| 14. |
VOE18387
|
[0001] |
Clamp
|
|
| 15. |
VOE13941906
|
[0001] |
Washer
|
|
| 16. |
VOE950045
|
[0001] |
Cross recessed screw
|
|
| 17. |
VOE4771084
|
[0001] |
Fuel pipe
|
|
| 18. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| 19. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 2. |
VOE466663
|
[0001] |
Tube
|
|
| 20. |
VOE4771083
|
[0001] |
Fuel pipe
|
|
| 21. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| 22. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 23. |
VOE4785801
|
[0001] |
Filter
|
|
| 24. |
VOE955896
|
[0002] |
Plain washer
|
|
| 25. |
VOE13941909
|
[0002] |
Washer
|
|
| 26. |
VOE13940134
|
[0002] |
Screw
|
|
| 3. |
VOE957173
|
[0002] |
Gasket
|
|
| 27. |
VOE940157
|
[0002] |
Nut
|
|
| 28. |
VOE7402404
|
[0002] |
Clamp
|
|
| |
VOE404279
|
[0001] |
Clamp
|
MO 136395 -
|
| 29. |
VOE950048
|
[0001] |
Cross recessed screw
|
|
| |
VOE950047
|
[0001] |
Cross recessed screw
|
MO 136395 -
|
| 30. |
VOE955825
|
[0001] |
Hexagon nut
|
|
| |
VOE955825
|
[0001] |
Hexagon nut
|
MO 136395 -
|
| 31. |
VOE466498
|
[0001] |
Tube
|
|
| 32. |
VOE13947282
|
[0002] |
Gasket
|
|
| 33. |
VOE968178
|
[0001] |
Hollow screw
|
|
| 34. |
VOE954357
|
[0001] |
Nut
|
|
| 35. |
VOE954365
|
[0001] |
Olive
|
|
| 36. |
VOE949554
|
[0001] |
Nipple
|
|
| 4. |
VOE7048634
|
[0001] |
Hollow screw
|
|
| 37. |
VOE942400
|
[0001] |
Clamp
|
|
| 38. |
VOE4771223
|
[0001] |
Fuel pipe
|
|
| 39. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 40. |
VOE60113509
|
[0001] |
Hollow screw
|
|
| 41. |
VOE4771224
|
[0001] |
Fuel pipe
|
|
| 42. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 43. |
VOE7016496
|
[0001] |
Hollow screw
|
|
| 44. |
VOE947620
|
[0002] |
Gasket
|
|
| 45. |
VOE7074033
|
[0001] |
Hollow screw
|
|
| 46. |
VOE11030618
|
[0001] |
Leak-off Line
|
|
