沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentTachometer Kit w Alternator ConnectionEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
505 次

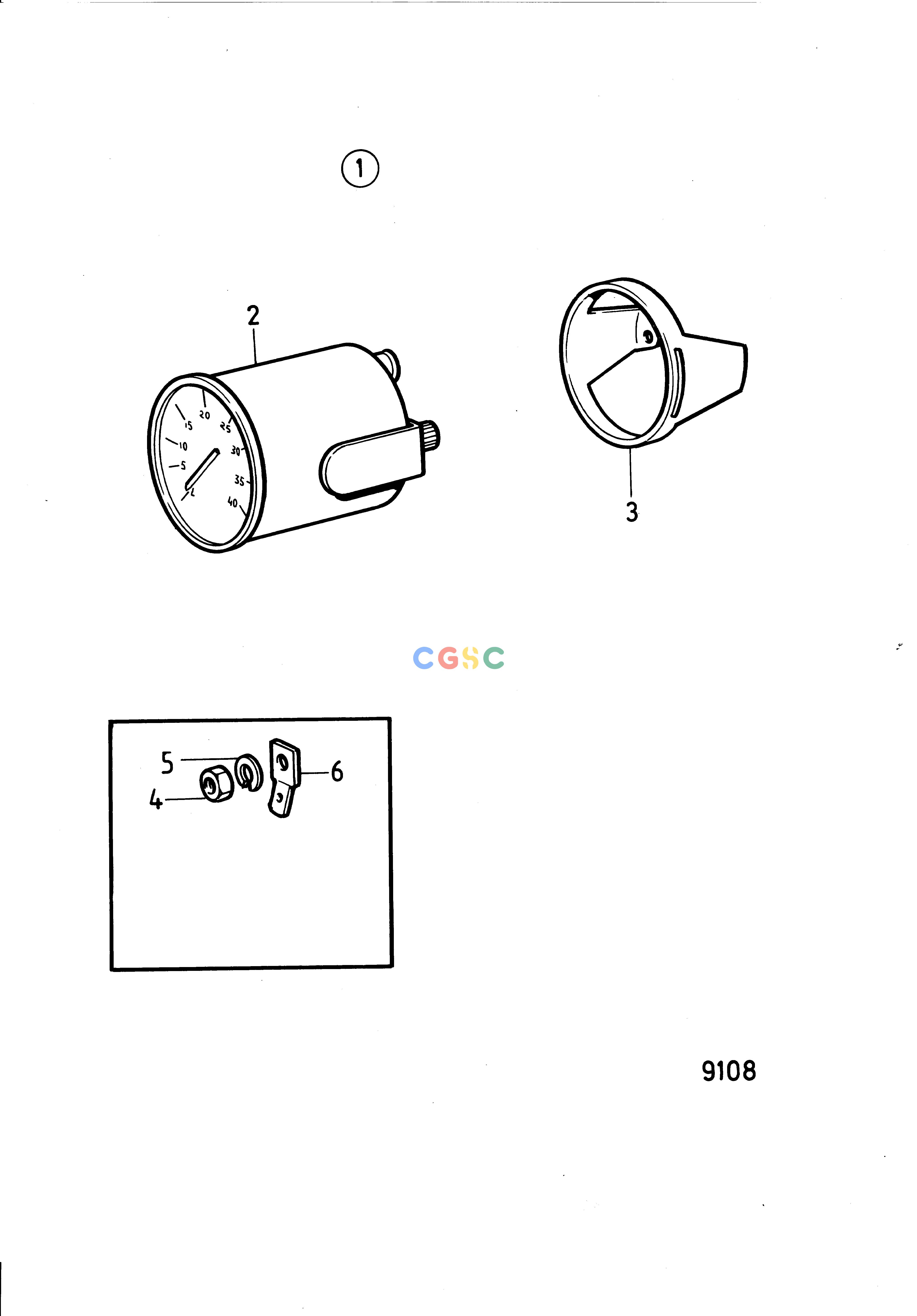

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858557
|
[1] |
Tachometer kit
|
|
| 2. |
872037
|
[1] |
Tachometer
|
|
| 3. |
828558
|
[1] |
Attaching ring
|
|
| 4. |
955779
|
[1] |
Hexagon nut
|
To be mounted on the alternator's output marked W.
|
| 5. |
941904
|
[1] |
Spring washer
|
To be mounted on the alternator's output marked W.
|
| 6. |
941881
|
[1] |
Cable terminal
|
To be mounted on the alternator's output marked W.
|
