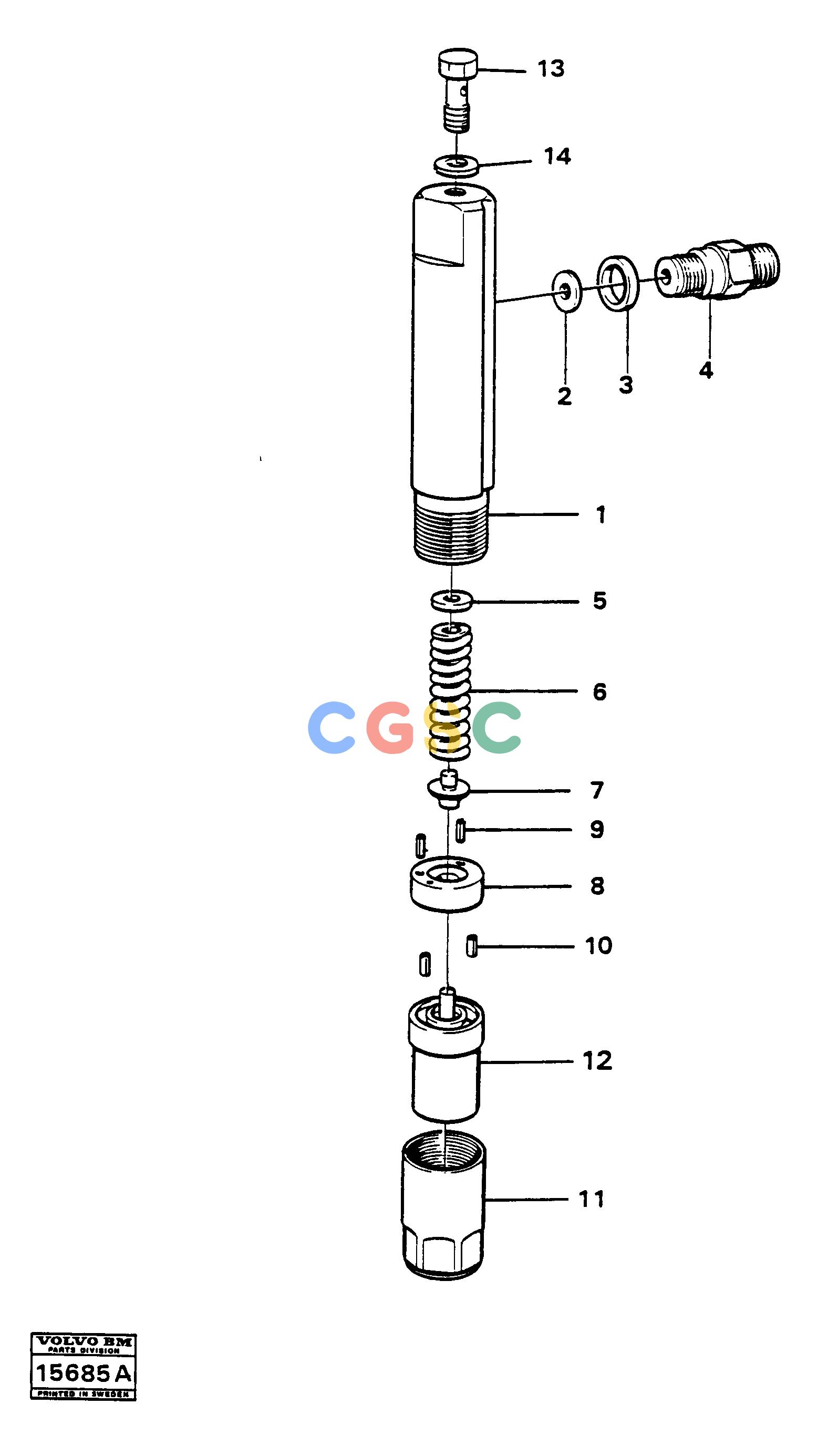

沃尔沃零件查询5350 Injector5350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
435 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE11998059
|
[0001] |
Pipe connection
|
|
| 5. |
VOE11700654
|
[REQ] |
Shim
|
THICK = 1,0
|
| |
VOE11701280
|
[REQ] |
Shim
|
THICK=1,05
|
| |
VOE11701085
|
[REQ] |
Shim
|
THICK = 1,1
|
| |
VOE3094408
|
[REQ] |
Shim
|
THICK=1,15
|
| |
VOE11701282
|
[REQ] |
Shim
|
THICK = 1,2
|
| |
VOE11700776
|
[REQ] |
Shim
|
THICK=1,25
|
| |
VOE6212419
|
[REQ] |
Shim
|
THICK = 1,3
|
| |
VOE11700831
|
[REQ] |
Shim
|
THICK=1,35
|
| |
VOE466891
|
[0001] |
Injector
|
|
| |
VOE244800
|
[REQ] |
Shim
|
THICK = 1,4
|
| |
VOE11700690
|
[REQ] |
Shim
|
THICK=1,45
|
| |
VOE11701783
|
[REQ] |
Shim
|
THICK = 1,5
|
| |
VOE11700653
|
[REQ] |
Shim
|
THICK=1,55
|
| |
VOE11700835
|
[REQ] |
Shim
|
THICK = 1,6
|
| |
VOE11701162
|
[REQ] |
Shim
|
THICK=1,65
|
| |
VOE11700126
|
[REQ] |
Shim
|
THICK = 1,7
|
| |
VOE6213408
|
[REQ] |
Shim
|
THICK=1,75
|
| |
VOE11701050
|
[REQ] |
Shim
|
THICK = 1,8
|
| |
VOE244808
|
[REQ] |
Shim
|
THICK=1,85
|
| |
VOE466514
|
[0001] |
Nozzle retainer
|
|
| |
VOE6213409
|
[REQ] |
Shim
|
THICK = 1,9
|
| 6. |
VOE244820
|
[0001] |
Compression spring
|
|
| 7. |
VOE6212145
|
[0001] |
Bolt
|
|
| 8. |
VOE1698513
|
[0001] |
Washer
|
|
| 9. |
VOE844339
|
[0002] |
Pin
|
|
| 1. |
|
[0001] |
Nozzle retainer
|
|
| 10. |
VOE244447
|
[0002] |
Pin
|
|
| 11. |
VOE3092030
|
[0001] |
Nut
|
|
| 12. |
VOE11000234
|
[0001] |
Nozzle
|
MO -123550
|
| |
VOE11000234
|
[0001] |
Nozzle
|
MO 123550-
|
| 2. |
VOE844294
|
[0001] |
Gasket
|
|
| 3. |
VOE844295
|
[0001] |
Gasket
|
|
