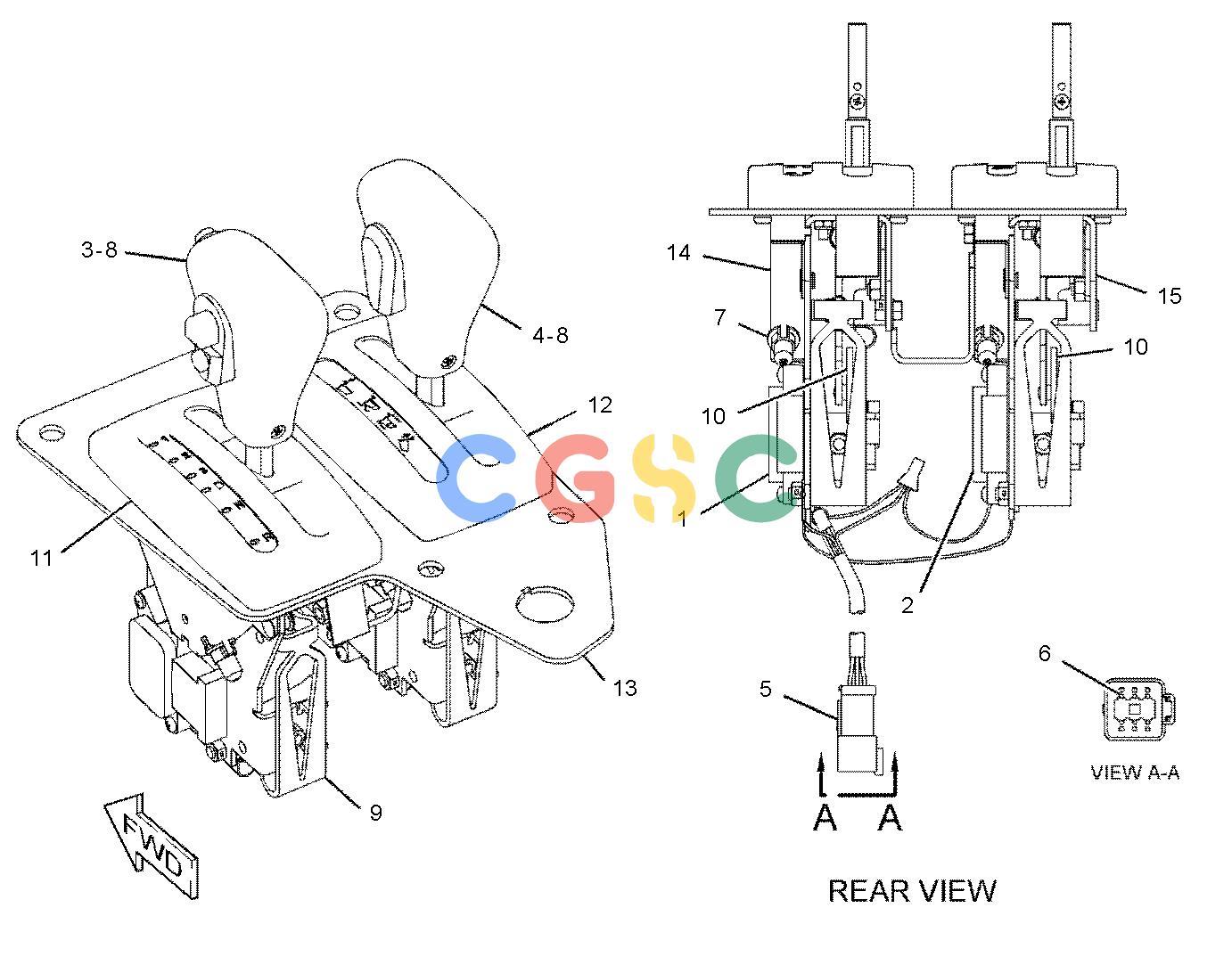

卡特零件查询（725） 300-6860: CONTROL GP-XMSN & HOIST
广数供应链运营团队, 14 02月, 2025，浏览：
622 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 257-2533 | [1] | SENSOR GP-POSITION(TRANSMISSION) | |
| 2. | 257-2531 | [1] | SENSOR GP-POSITION(HOIST) | |
| 3. | 145-0875 | [1] | HANDLE GP-MODULAR(TRANSMISSION) | |
| 4. | 145-0874 | [1] | HANDLE GP-MODULAR(HOIST) | |
| 5. | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN)(CONTROL PANEL) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 6. | 8T-8729 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 7. | 7N-5876 | [2] | LAMP(24-VOLT, 0.2-AMPERE) | |
| 8. | 150-1293M | [4] | SCREW-BUTTON HEAD(M4X0.7X12-MM) | |
| 9. | 300-6857 | [2] | KIT-SPRING(SHIFTER) | |
| | | | (EACH INCLUDES SPRING AS) |
| 10. | 200-5965 | [2] | LEVER AS | |
| 11. | 190-8436 | [1] | INDICATOR(TRANSMISSION SPEED) | |
| 12. | 190-8438 | [1] | INDICATOR(BODY POSITION) | |
| 13. | 190-8439 | [1] | PLATE-MOUNTING | |
| 14. | 301-0083 | [1] | CONTROL GP-ELECTROHYDRAULIC(TRANSMISSION) | |
| | 257-2533 | [1] | SENSOR GP-POSITION(TRANSMISSION) | |
| 15. | 301-0084 | [1] | CONTROL GP-ELECTROHYDRAULIC(HOIST) | |
| | 257-2531 | [1] | SENSOR GP-POSITION(HOIST CONTROL) | |
| | M | | METRIC PART |
