| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

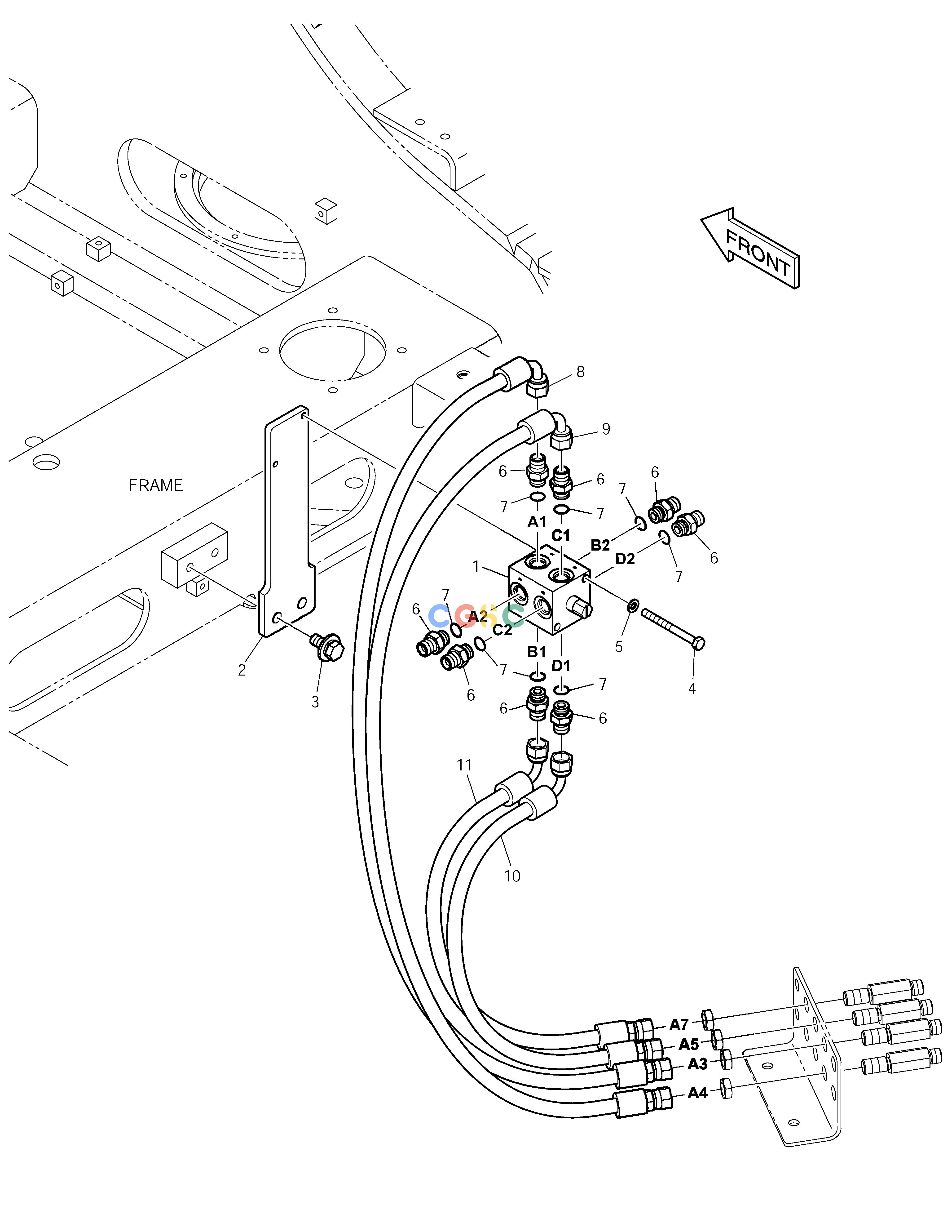

| -. | K1025173A | [-] | PILOT PIPING;PATTERN CHANGE | |
| 1. | K1014874 | [1] | VALVE;SELECTOR | |
| 10. | DS2093001 | [1] | HOSE | |
| 11. | DS2093001 | [1] | HOSE | |
| 2. | K1014921 | [1] | PLATE | |
| 3. | DS0025018 | [2] | BOLT | |
| 4. | S0557066 | [2] | BOLT | |
| 5. | S5100503 | [2] | WASHER | |
| 6. | 2181-1126D7 | [8] | ADAPTER | |
| 7. | S8000141 | [8] | O-RING | |
| 8. | DS2093368 | [1] | HOSE | |
| 9. | DS2093368 | [1] | HOSE |
