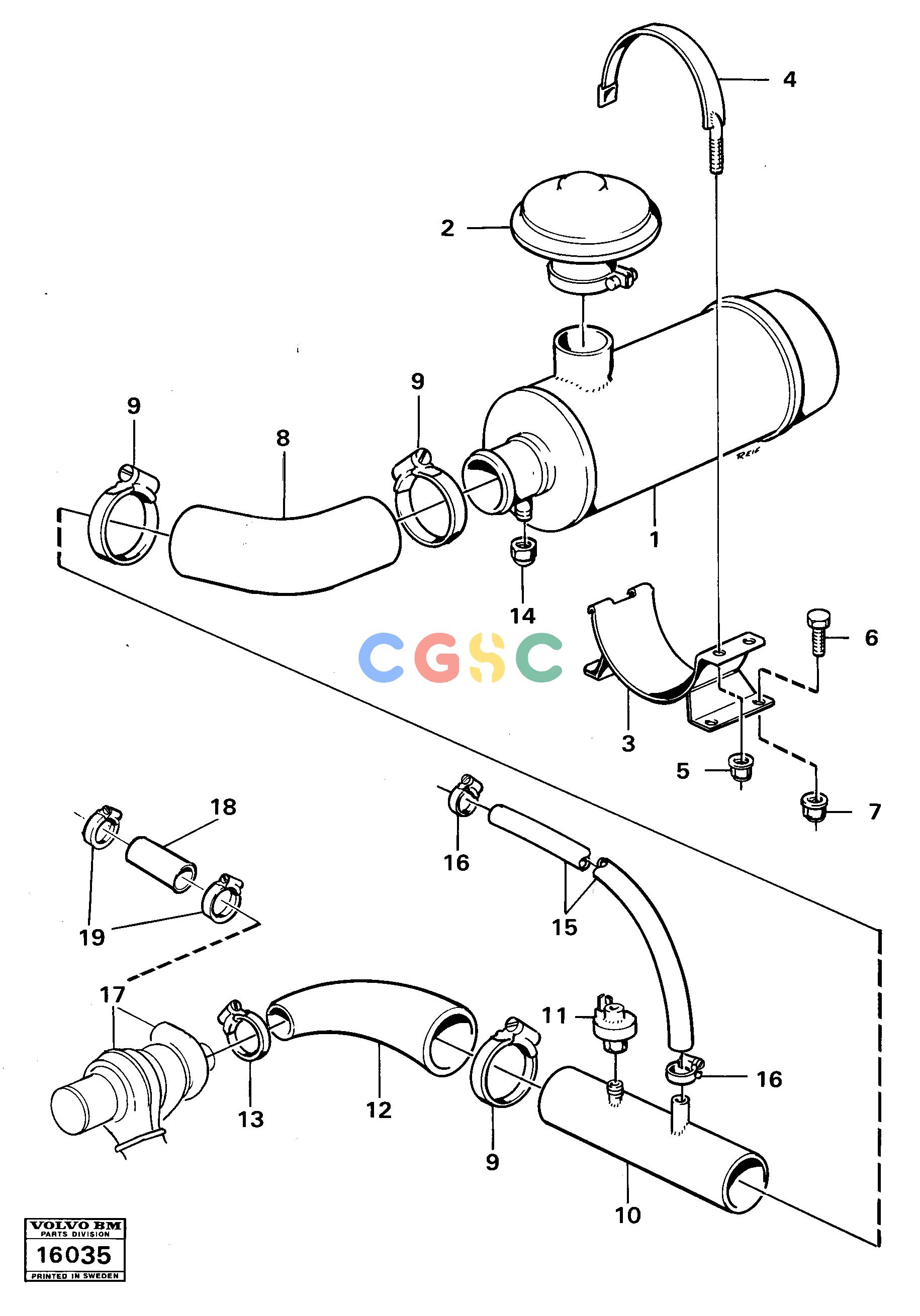

沃尔沃零件查询5350 Inlet system5350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
559 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13971098
|
[0002] |
Flange nut
|
|
| 6. |
VOE13945444
|
[0004] |
Screw
|
|
| 7. |
VOE13945408
|
[0004] |
Nut
|
|
| 8. |
VOE4737212
|
[0001] |
Connector
|
|
| 9. |
VOE943485
|
[0003] |
Hose clamp
|
|
| 1. |
|
[0001] |
Air cleaner
|
|
| 10. |
VOE4737213
|
[0001] |
Inlet manifold
|
|
| 11. |
VOE4785473
|
[0001] |
Pressure drop indicator
|
|
| 12. |
VOE4737214
|
[0001] |
Connector
|
|
| 13. |
VOE943481
|
[0001] |
Hose clamp
|
|
| 14. |
VOE7092496
|
[0001] |
Cap nut
|
|
| 15. |
VOE927660
|
[REQ] |
Rubber hose
|
SER NO -1616
|
| 16. |
VOE13943474
|
[0002] |
Hose clamp
|
SER NO -1616
|
| 17. |
|
[0001] |
Throttle housing
|
|
| 18. |
VOE466327
|
[0001] |
Hose
|
|
| 19. |
VOE943479
|
[0002] |
Hose clamp
|
|
| 2. |
VOE11707307
|
[0001] |
Cover
|
|
| 3. |
VOE4737211
|
[0001] |
Anchorage
|
|
| 4. |
VOE7191977
|
[0002] |
Suspension
|
|
