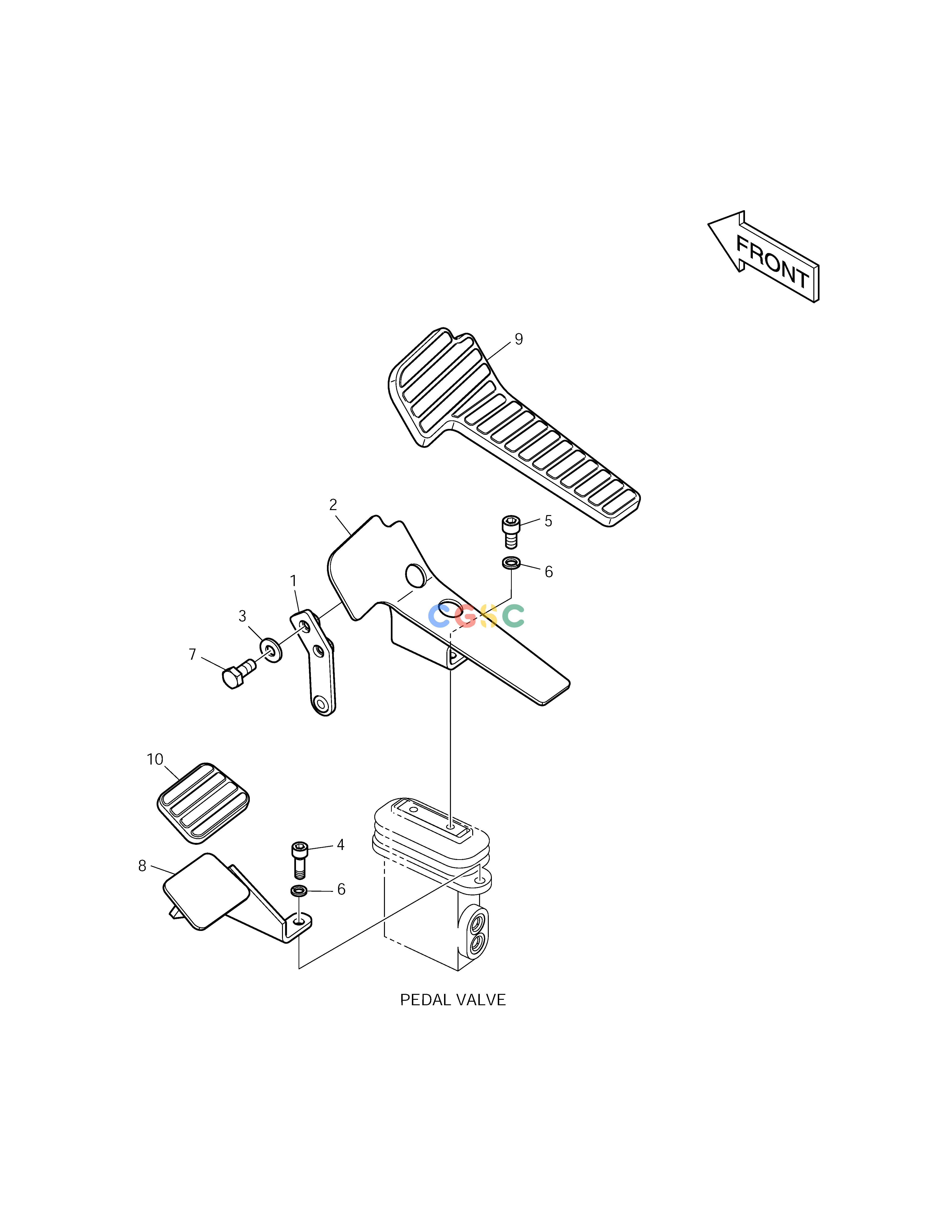

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1024568 | [-] | SINGLE PEDAL | |
| 1. | K1001871B | [1] | PLATE | |
| 10. | K1006656 | [1] | RUBBER,PEDAL | |
| 2. | 195-01684A | [1] | BRACKET;PEDAL(L.H) | |
| 3. | S5102603 | [2] | . WASHER | |
| 4. | S2212266 | [2] | BOLT | |
| 5. | S2211866 | [2] | BOLT | |
| 6. | S5110603 | [4] | WASHER | |
| 7. | S0512066 | [2] | . BOLT | |
| 8. | K1003948A | [1] | FOOT REST | |
| 9. | 161-00382 | [1] | RUBBER;PEDAL(L.H) |
