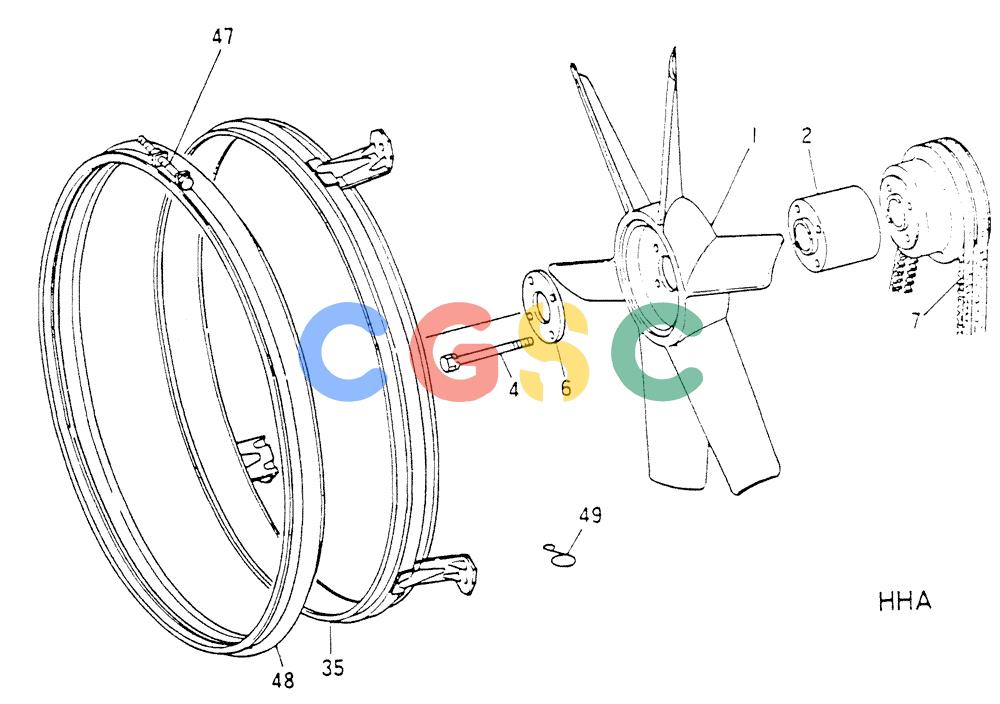

神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (02-008) - FAN & PULLEY Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
201 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3084815500 | [1] | FAN | KOBFAN,SUCTION TYPE PP D=580 |
| 2. | VAME047301 | [1] | SPACER,FAN L=85 | |
| 4. | VAMH000738 | [4] | BOLT.W/WSR 10X115 | |
| 6. | VAME020731 | [1] | PLATE | KOBPLATE,WSR |
| 7. | VAME902742 | [1] | BELT | KOBV-BELT, 2 BELTS SET B. L=1090 |
| 35. | VAME047291 | [1] | SHROUD,FAN | |
| 47. | VAMC012771 | [1] | CLAMP,SEAL | |
| 48. | VAMC015990 | [1] | SEAL,SHROUD | |
| 49. | VA3184391100 | [1] | CLAMP CLAMP | CLAMP CLAMP |
