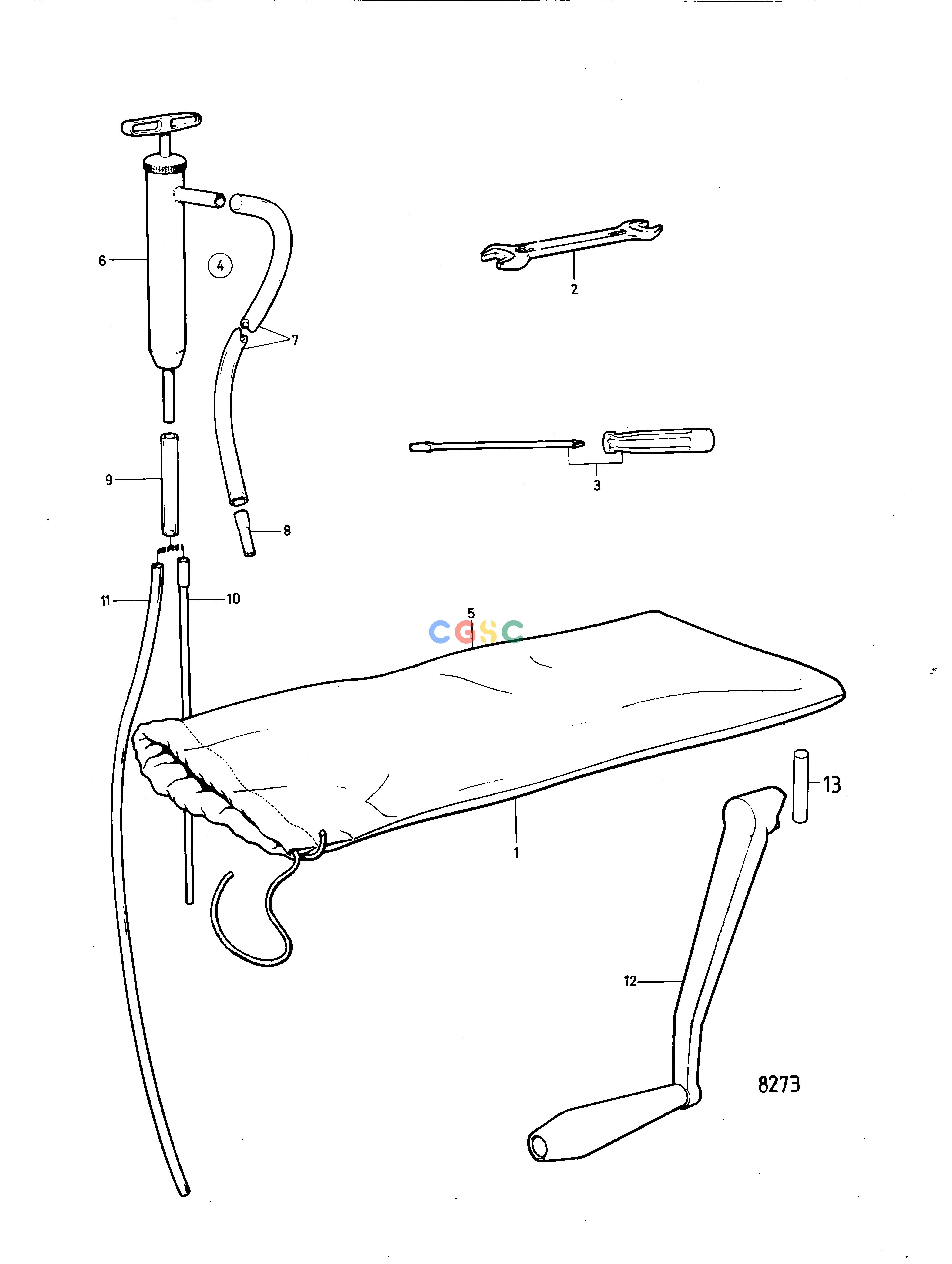

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentTools. Oil Bilge Pump. Starting CrankEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
713 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
844642
|
[1] |
Tool bag
|
|
| 2. |
843929
|
[1] |
Open-end spanner
|
8-10mm
|
| 2. |
962053
|
[1] |
Open-end spanner
|
13-17mm
|
| 3. |
963929
|
[1] |
Combination screwdri
|
|
| 4. |
875117
|
[1] |
Oil bilge pump
|
|
| 5. |
844642
|
[1] |
Tool bag
|
|
| 6. |
|
|
|
|
| 7. |
806282
|
[1] |
Plastic hose
|
L=1000mm
|
| 8. |
841046
|
[1] |
Rubber hose
|
|
| 9. |
941405
|
[1] |
Hose
|
L=100mm
|
| 10. |
835964
|
[1] |
Oil bilge pipe
|
L=711mm
|
| 11. |
841527
|
[1] |
Oil bilge pipe
|
L=1000mm
|
| 12. |
840915
|
[1] |
Starting handle cran
|
|
| 13. |
|
|
|
See Timing gear casing and gears group 2A.
|
