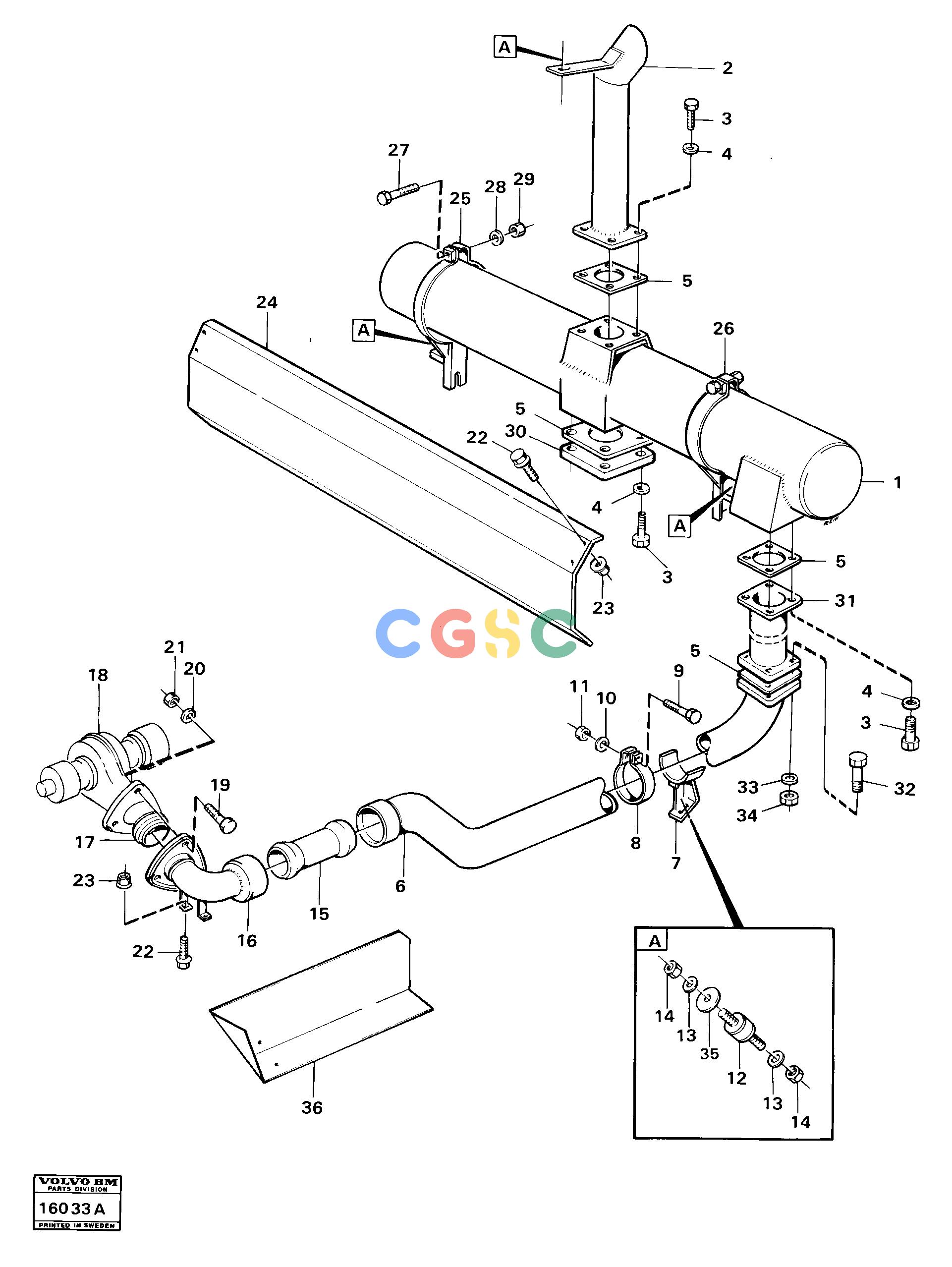

沃尔沃零件查询5350 Exhaust system tillv nr -14595350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
638 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4770880
|
[0004] |
Gasket
|
|
| 6. |
VOE4821492
|
[0001] |
Exhaust pipe
|
|
| 7. |
VOE4821172
|
[0002] |
Clamp
|
|
| 8. |
VOE4751184
|
[0002] |
Clamp
|
|
| 9. |
VOE13970950
|
[0002] |
Hexagon screw
|
|
| 1. |
VOE4771459
|
[0001] |
Silencer
|
|
| 10. |
VOE976945
|
[0002] |
Washer
|
|
| 11. |
VOE13971074
|
[0002] |
Hexagon nut
|
|
| 12. |
VOE7324842
|
[0006] |
Rubber cushion
|
|
| 13. |
VOE955898
|
[0012] |
Washer
|
|
| 14. |
VOE14102830
|
[0012] |
Nut
|
|
| 15. |
VOE4776383
|
[0001] |
Expansion joint
|
|
| 16. |
VOE4940573
|
[0001] |
Pipe elbow
|
|
| 17. |
VOE364727
|
[0001] |
Sealing ring
|
|
| 18. |
|
[0001] |
Throttle housing
|
|
| 19. |
VOE13971019
|
[0003] |
Screw
|
|
| 2. |
VOE4737526
|
[0001] |
End pipe
|
|
| 20. |
VOE976945
|
[0003] |
Washer
|
|
| 21. |
VOE13971074
|
[0003] |
Hexagon nut
|
|
| 22. |
VOE13946173
|
[0006] |
Screw
|
|
| 23. |
VOE13945408
|
[0006] |
Nut
|
|
| 24. |
VOE4821765
|
[0001] |
Protecting plate
|
|
| 25. |
VOE4821171
|
[0001] |
Clamp
|
|
| 26. |
VOE4821153
|
[0001] |
Clamp
|
|
| 27. |
VOE13970950
|
[0002] |
Hexagon screw
|
|
| 28. |
VOE976945
|
[0002] |
Washer
|
|
| 29. |
VOE13971074
|
[0002] |
Hexagon nut
|
|
| 3. |
VOE13971019
|
[0012] |
Screw
|
|
| 30. |
VOE4771464
|
[0001] |
Plate
|
|
| 31. |
VOE4821490
|
[0001] |
Exhaust pipe
|
|
| 32. |
VOE13970950
|
[0004] |
Hexagon screw
|
|
| 33. |
VOE976945
|
[0004] |
Washer
|
|
| 34. |
VOE13971074
|
[0004] |
Hexagon nut
|
|
| 35. |
VOE11053667
|
[0002] |
Gasket
|
|
| 36. |
VOE4864323
|
[0001] |
Protecting plate
|
|
| 4. |
VOE976945
|
[0012] |
Washer
|
|
