神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (02-012) - OIL STRAINER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
677 次

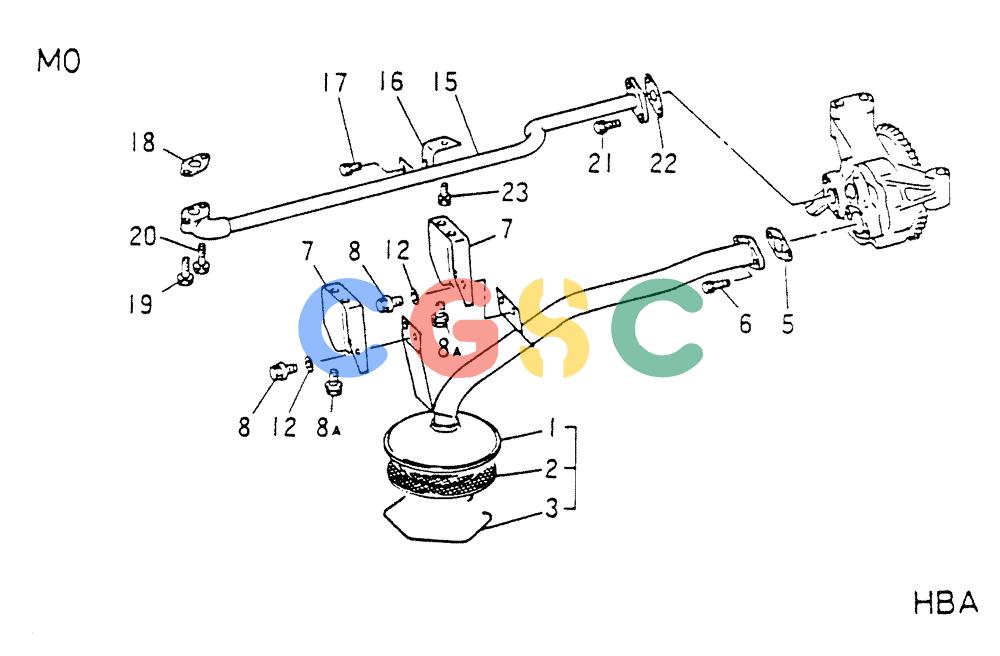

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-3. | VAME047140 | [1] | OIL STRAINER ASSY | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONSTRAINER,OIL |
| 2. | VAME044000 | [1] | STRAINER PLATE,STRAINER | STRAINER PLATE,STRAINER |
| 3. | VAME044001 | [1] | SPRING SPRING | SPRING SPRING |
| 5. | VAME034033 | [1] | GASKET | KOBGASKET Superseded by part number: VAME074485 |
| 6. | VAMF140225 | [2] | BOLT | KOBBOLT, FLANGE 8X20 |
| 7. | VAME047142 | [2] | STAY | KOBSTAY |
| 8. | VAMF140223 | [4] | BOLT | KOBBOLT,FLANGE 8X16 |
| 8A. | VAMF140221 | [4] | BOLT | KOBBOLT,FLANGE 8X12 |
| 12. | VAMH005003 | [4] | WASHER | KOBWASHER Superseded by part number: 135079A1 |
| 15. | VAME034027 | [1] | OIL PIPE PIPE,OIL | OIL PIPE PIPE,OIL |
| 16. | VAMH023365 | [1] | STAY STAY | STAY STAY |
| 17. | VAMF140221 | [1] | BOLT | KOBBOLT,FLANGE 8X12 |
| 18. | VAMH035089 | [1] | GASKET | KOBGASKET Superseded by part number: VAME074486 |
| 19. | VAMF140229 | [1] | BOLT | KOBBOLT,FLANGE 8X30 |
| 20. | VAMF140233 | [1] | BOLT | KOBBOLT,FLANGE 8X40 |
| 21. | VAMF140225 | [2] | BOLT | KOBBOLT,FLANGE 8X20 |
| 22. | VAME020663 | [1] | GASKET | KOBGASKET Superseded by part number: VAME074111 |
| 23. | VAMF140223 | [1] | BOLT | KOBBOLT,FLANGE 8X16 |
