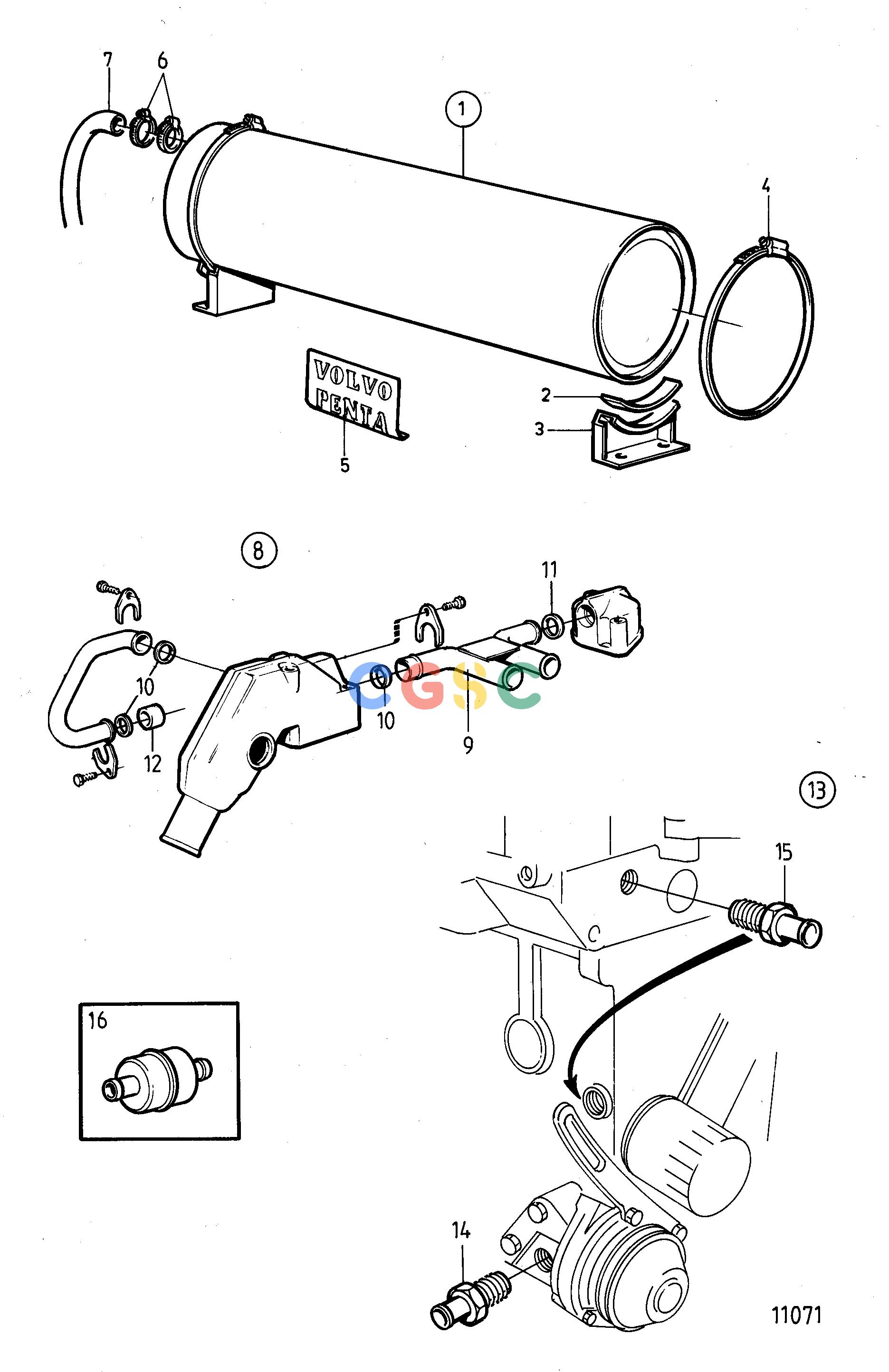

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentWater Heater Kit, Hot Water Outlet and Extra ThermostatEPC Volvo Penta Parts ca
广数供应链运营团队, 14 02月, 2025，浏览：
307 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1144069
|
[1] |
Water heater
|
|
| 2. |
1144070
|
[2] |
Spacer
|
|
| 3. |
842767
|
[2] |
Bracket
|
|
| 4. |
1144071
|
[2] |
Hose clamp
|
|
| 5. |
827259
|
[1] |
Decal
|
|
| 6. |
961665
|
[1] |
Hose clamp
|
For 952968
|
| 6. |
961666
|
[1] |
Hose clamp
|
For 952969
|
| 7. |
952968
|
[1] |
Hose
|
D=12,7mm
|
| 7. |
952969
|
[1] |
Hose
|
D=15,9mm
|
| 8. |
840775
|
[1] |
Hot water outlet
|
For sea water cooled engine., 2002,2002B,2002D
|
| 8. |
840776
|
[1] |
Hot water outlet
|
For sea water cooled engine., 2003,2003B,2003D
|
| 9. |
840722
|
[1] |
T-pipe
|
2002,2002B,2002D
|
| 9. |
840723
|
[1] |
T-pipe
|
2003,2003B,2003D
|
| 10. |
418445
|
[3] |
Sealing ring
|
|
| 11. |
418411
|
[1] |
Sealing ring
|
|
| 12. |
840781
|
[1] |
Plug
|
|
| 13. |
858523
|
[1] |
Kit
|
For freshwater cooled engine, 2002,2002B, D,2003
|
| 13. |
|
|
|
2003B,D,2003TB
|
| 14. |
961653
|
[1] |
Hose nipple
|
|
| 15. |
479978
|
[1] |
Nipple
|
|
| 16. |
855877
|
[1] |
Thermostat kit
|
Thermostat for hot water outlet
|
