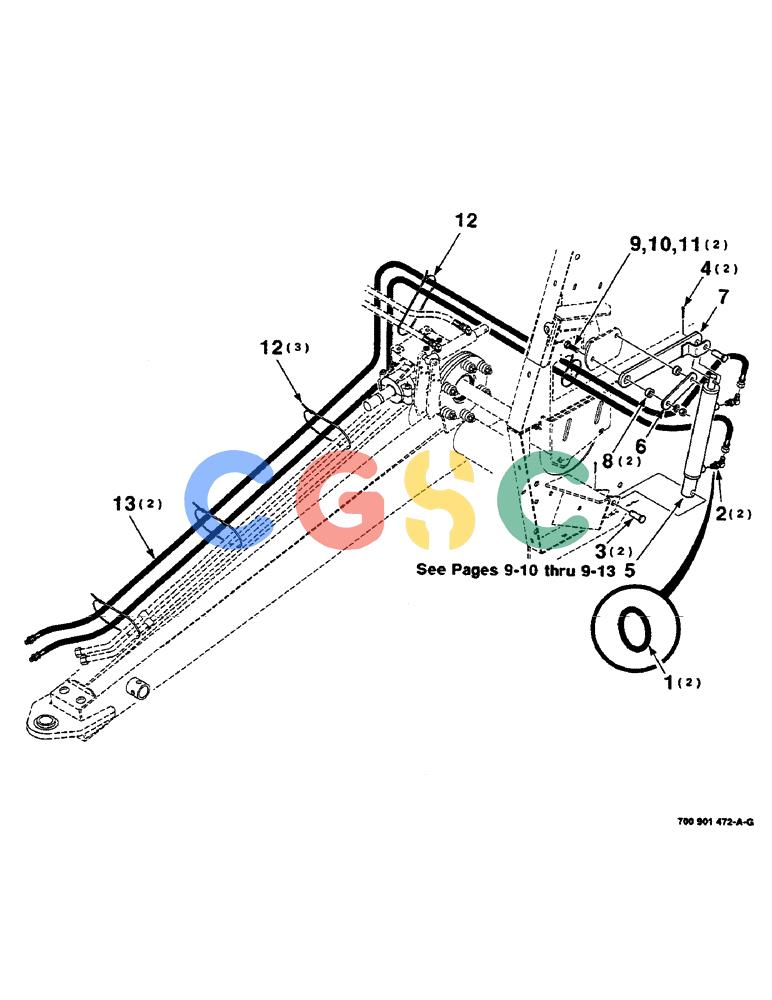

凯斯零件查询(8455) - CASE IH ROUND BALER (STANDARD) (1/92-12/99) (9-08) - PICKUP LIFT KIT (HYDRAULIC), (HK50446 PICKUP LIFT KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
980 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK50446
|
[1] |
ATTACHMENT
|
ATT
PICKUP LIFT KIT COMPLETE
|
| 1. |
738468
|
[2] |
O-RING
|
IH
|
| 2. |
218-5105
|
[2] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
90 DEGREES (Includes item 1) Superseded by part number: 76344, 72186128
|
| 3. |
63495
|
[2] |
CLIP
|
CAS
5/8 x 2-1/2 CLEVIS PIN
|
| 4. |
432-820
|
[2] |
COTTER PIN,1/8" x 1 1/4"
|
CAS
PIN, SPLIT (COTTER), 1/8" x 1-1/4" Superseded by part number: 87395, 87778232
|
| 5. |
700709416
|
[1] |
CYLINDER
|
CAS
ASSEMBLY - hydraulic, pickup Superseded by part number: 700712122
|
| . . |
700712122
|
[1] |
CYLINDER
|
CAS
ASSEMBLY - hydraulic, pickup
|
| 6. |
700116172
|
[1] |
PLATE
|
HFI
|
| 7. |
700116173
|
[1] |
LEVER
|
CAS
|
| 8. |
6287155
|
[2] |
SPACER
|
HFI
|
| 9. |
413-828
|
[2] |
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 9707516, 72187217
|
| 10. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 11. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 12. |
L18337
|
[4] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 13. |
700704624
|
[2] |
HOSE
|
CAS
- hydraulic
|
| 14. |
7702012
|
[2] |
SELF-TAP SCREW,3/8" - 16 x 1"
|
CAS
3/8-16 x 1 HWHTCTS
|
| 15. |
515-23159
|
[4] |
CLAMP,5/8", Insul, 3/8" Bolt
|
CAS
Hose 5/8", Insul, 3/8" Bolt Superseded by part number: 86594406
|
