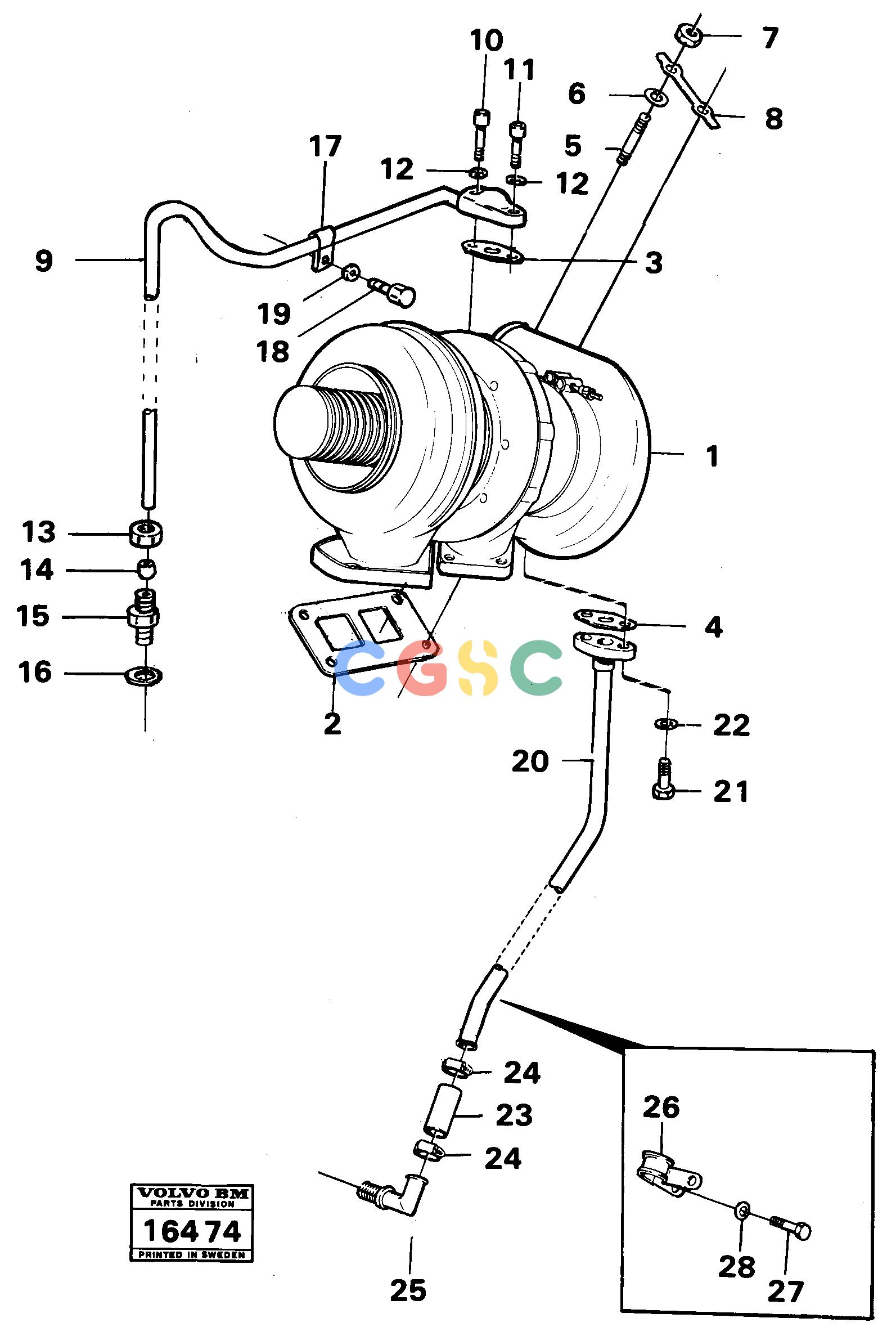

沃尔沃零件查询5350 Turbocharger with fitting parts5350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
948 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE953259
|
[0004] |
Stud
|
|
| 6. |
VOE13940097
|
[0004] |
Washer
|
|
| 7. |
VOE191894
|
[0004] |
Nut
|
|
| 8. |
VOE942167
|
[0002] |
Tab washer
|
|
| 9. |
VOE466662
|
[0001] |
Tube
|
|
| 1. |
VOE466730
|
[0001] |
Turbocharger
|
|
| 10. |
VOE956571
|
[0001] |
Hex. socket screw
|
|
| 11. |
VOE926323
|
[0001] |
Screw
|
|
| 12. |
VOE13941907
|
[0002] |
Washer
|
|
| 13. |
VOE956984
|
[0001] |
Fitting nut
|
|
| 14. |
VOE956970
|
[0001] |
Ferrule
|
|
| 15. |
VOE13963978
|
[0001] |
Nipple
|
|
| 16. |
VOE964114
|
[0001] |
O-ring
|
|
| 17. |
VOE13946834
|
[0001] |
Clamp
|
|
| 18. |
VOE13955523
|
[0001] |
Screw
|
|
| 19. |
VOE13941907
|
[0001] |
Washer
|
|
| 2. |
VOE420618
|
[0001] |
Gasket
|
|
| 20. |
VOE466664
|
[0001] |
Tube
|
|
| 21. |
VOE13940115
|
[0002] |
Screw
|
|
| 22. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 23. |
VOE466328
|
[0001] |
Hose
|
|
| 24. |
VOE13943474
|
[0002] |
Hose clamp
|
|
| 25. |
VOE479959
|
[0001] |
Nipple
|
|
| 26. |
VOE952626
|
[0001] |
Clamp
|
|
| 27. |
VOE950045
|
[0001] |
Cross recessed screw
|
|
| 28. |
VOE13941906
|
[0001] |
Washer
|
|
| 3. |
VOE420641
|
[0001] |
Gasket
|
|
| 4. |
VOE420642
|
[0001] |
Gasket
|
|
