卡特零件查询（725） 225-8758: LAMP GP-SIGNAL
广数供应链运营团队, 14 02月, 2025，浏览：
339 次

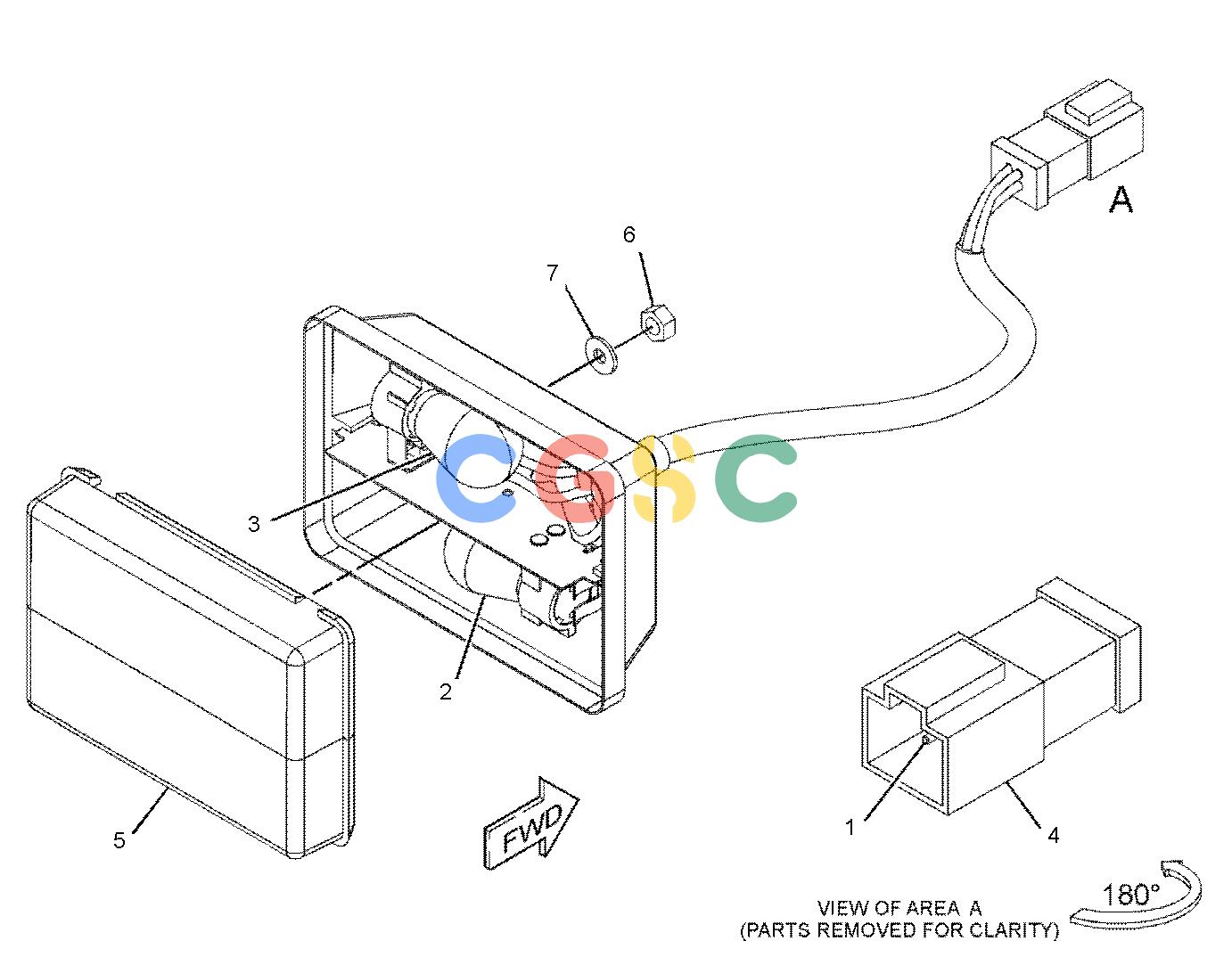

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 2. | 9X-4492 | [1] | LAMP-FLOOD(24-VOLT, 5-WATT)(STOP, TAIL) | |
| 3. | 9X-4493 | [1] | LAMP(24-VOLT, 21-WATT)(TURN SIGNAL) | |
| 4. | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 5. | 426-5377 | [1] | LAMP(STOP, TAIL, TURN) | |
| 6. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 7. | 2U-2453 | [2] | WASHER(5.6X12.6X1.22-MM THK) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | M | | METRIC PART |
