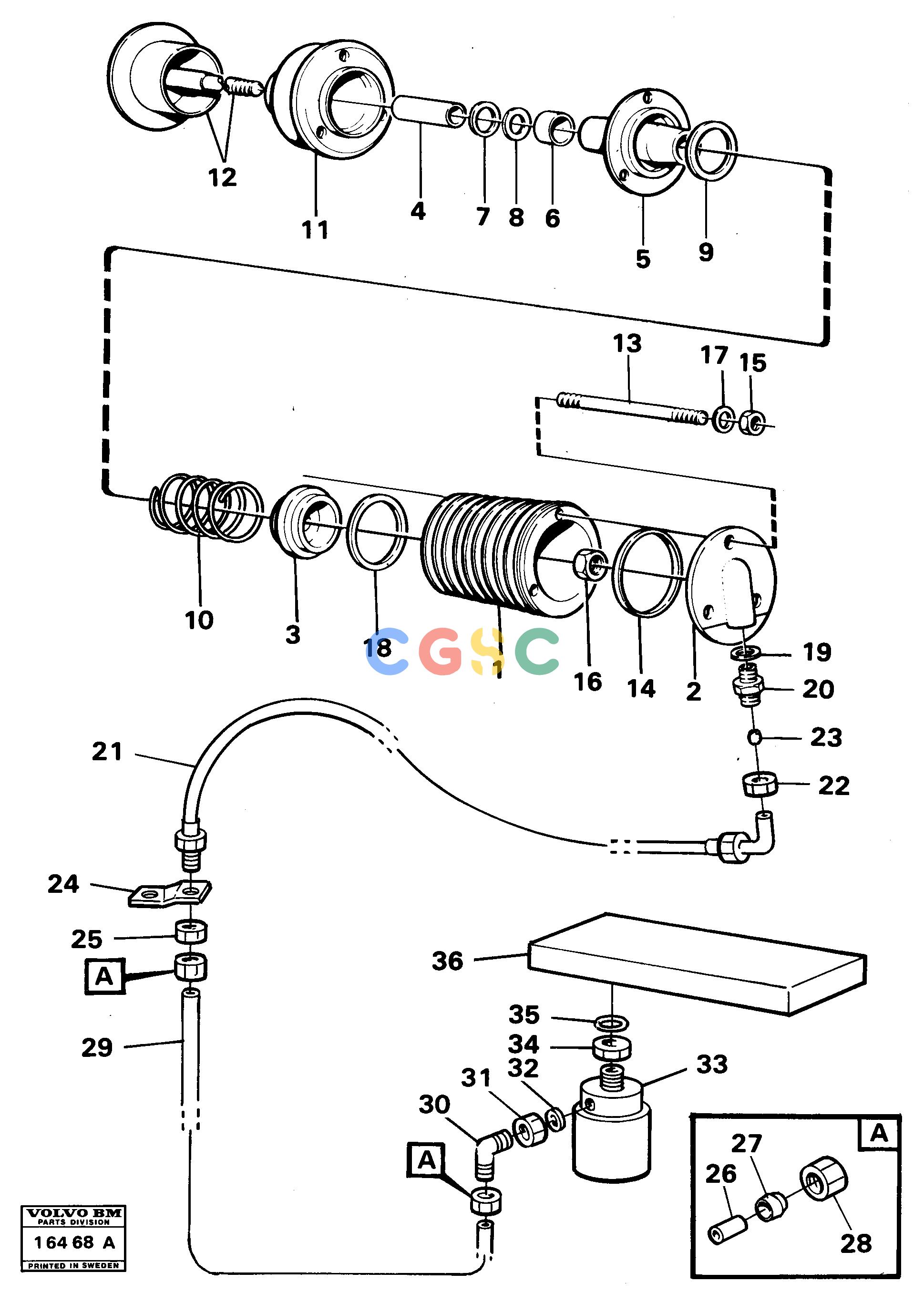

沃尔沃零件查询5350 Exhaust pressure regulator5350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
233 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
|
[0001] |
Piston
|
|
| 4. |
VOE467277
|
[0001] |
Piston rod
|
|
| 5. |
VOE467278
|
[0001] |
Bearing housing
|
|
| 6. |
VOE467280
|
[0002] |
Bushing
|
|
| 7. |
VOE467545
|
[0001] |
Stop ring
|
|
| |
VOE467808
|
[0001] |
Regulator
|
|
| 8. |
VOE467304
|
[0001] |
Scraper
|
|
| 9. |
VOE467281
|
[0001] |
Washer
|
|
| 10. |
VOE467282
|
[0001] |
Return spring
|
|
| 11. |
|
[0001] |
Shutter housing cover
|
|
| 12. |
VOE467807
|
[0001] |
Shutter
|
|
| 13. |
VOE945474
|
[3] |
Stud
|
|
| 14. |
VOE13945512
|
[1] |
O-ring
|
|
| 15. |
VOE955825
|
[3] |
Hexagon nut
|
|
| 16. |
VOE945467
|
[1] |
Lock nut
|
|
| 17. |
VOE955893
|
[3] |
Plain washer
|
|
| 18. |
VOE478712
|
[1] |
Sealing ring
|
|
| 19. |
VOE957173
|
[1] |
Gasket
|
|
| 20. |
VOE13945900
|
[1] |
Nipple
|
|
| 21. |
VOE948525
|
[1] |
Hose assembly
|
|
| 22. |
VOE954356
|
[1] |
Fitting nut
|
|
| 23. |
VOE954364
|
[1] |
Ferrule
|
|
| 24. |
VOE4821405
|
[1] |
Bracket
|
|
| 25. |
VOE192272
|
[1] |
Lock nut
|
|
| 26. |
VOE944717
|
[2] |
Sleeve
|
|
| 27. |
VOE954364
|
[0002] |
Ferrule
|
|
| 1. |
VOE478915
|
[0001] |
Cylinder
|
|
| 28. |
VOE954356
|
[0002] |
Fitting nut
|
|
| 29. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=3400 SER NO -1616
|
| |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=3800 SER NO 1800-
|
| 30. |
VOE945916
|
[0001] |
Elbow nipple
|
|
| 31. |
VOE945893
|
[0001] |
Hexagon nut
|
|
| 32. |
VOE945897
|
[0001] |
Gasket
|
|
| 33. |
VOE1576728
|
[0001] |
Solenoid valve
|
|
| |
VOE273308
|
[0001] |
Repair kit
|
|
| 34. |
VOE945895
|
[0001] |
Hexagon nut
|
|
| 35. |
VOE13949657
|
[0001] |
O-ring
|
|
| 36. |
|
[0001] |
Magnetic valve plate
|
SEE GROUP 41
|
| 2. |
VOE467275
|
[0001] |
Cylinder head
|
|
