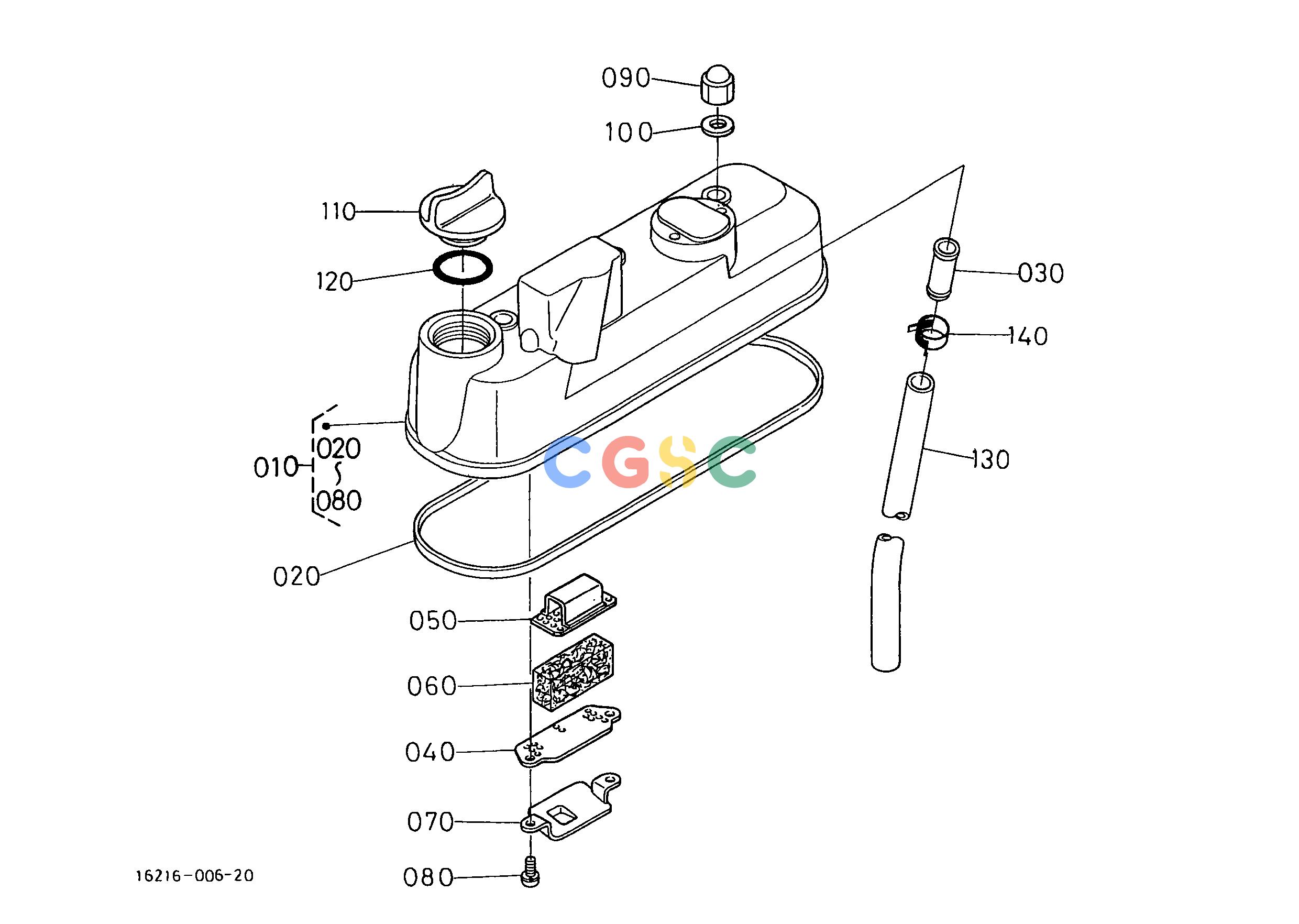

久保田零件查询000500 HEAD COVER ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
152 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1626114503
|
[1] |
COVER,HEAD,ASSY(CYLINDER)
|
1.7160(lbs); 0.780
|
| 020. |
1626114520
|
[1] |
GASKET(COVER,HEAD)
|
0.0220(lbs); 0.010
|
| 030. |
1624105550
|
[1] |
JOINT,BREATHER PIPE
|
0.0440(lbs); 0.020
|
| 040. |
1624105140
|
[1] |
PLATE,B/THER ELEMENT
|
0.0110(lbs); 0.005
|
| 050. |
1624105150
|
[1] |
PLATE,B/THER ELEMENT
|
0.0220(lbs); 0.010
|
| 060. |
1624105670
|
[1] |
ELEMENT(BREATHER)
|
0.0220(lbs); 0.010
|
| 070. |
1624105370
|
[1] |
OIL SHIELD,BREATHER
|
0.0220(lbs); 0.010
|
| 080. |
0302450510
|
[2] |
SCREW,SEMS(PAN HEAD)
|
0.0044(lbs); 0.002
|
| 090. |
1595292330
|
[3] |
NUT,CAP
|
0.0220(lbs); 0.010
|
| 100. |
1595196660
|
[3] |
PACKING
|
0.0022(lbs); 0.001
|
| 110. |
1585233140
|
[1] |
PLUG(OIL FILLER)
|
0.0836(lbs); 0.038
|
| 120. |
0481150300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
0481450300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
1627105510
|
[1] |
PIPE,BREATHER
|
0.1320(lbs); 0.060
|
| 140. |
1624133510
|
[1] |
BAND,PIPE
|
0.0110(lbs); 0.005
|
