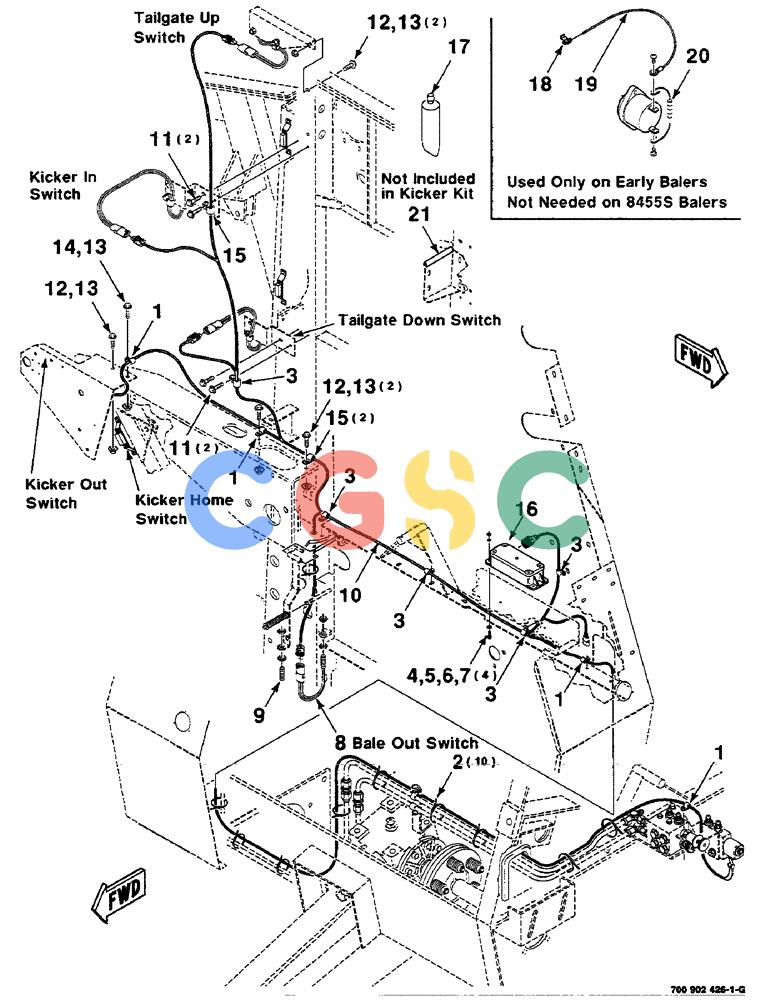

| 1. |
515-2295
|
[4] |
CLAMP,3/8", Insul, 5/16" Bolt
|
CAS
Superseded by part number: 86637978
|
| 2. |
L18337
|
[10] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 3. |
515-23190
|
[5] |
CLAMP,3/4", Insul, 3/8" Bolt
|
CAS
Line 3/4", Insul, 3/8" Bolt Superseded by part number: 86624005
|
| 4. |
700707203
|
[4] |
CAPTIVE WASHER SCREW
|
CAS
#12-24 x 3/4 HWHMS
|
| 5. |
27616R1
|
[4] |
WASHER,.281" x 5/8" x .075", HDN
|
IH
#12 PLAIN WASHER
|
| 6. |
492-11012
|
[4] |
LOCK WASHER,#12
|
CAS
WASHER, LOCK, #12
|
| 7. |
121743
|
[4] |
CHAIN,#12 - 24
|
NNA
#12-24 H GR2 Superseded by part number: 225-14112
|
| 8. |
700119161
|
[1] |
SWITCH
|
L
SENSOR "A"
|
| 9. |
700707354
|
[1] |
CONNECTION,ELECTRIC
|
IH
ACTUATOR
|
| 10. |
700709346
|
[1] |
HARNESS
|
CAS
- wire
|
| 11. |
172463
|
[4] |
SELF-TAP SCREW,Hex Hd, 5/16" x 1"
|
CAS
5/8-18 x 3/4 HWHTCTS
|
| 12. |
121-115
|
[5] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 13. |
231-5145
|
[6] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 14. |
121-108
|
[1] |
BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr
|
CAS
5/16-18 x 1 HWHMS
|
| 15. |
515-25127
|
[3] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Line 1/2", Insul, 1/2" Bolt Superseded by part number: 86632595
|
| 16. |
700709344
|
[1] |
TERMINAL BOX
|
CAS
BOX ASSEMBLY - electronic control
|
| 17. |
345-92
|
[1] |
GLUE
|
CAS
DIELECTRIC COMPOUND
|
| 18. |
700709784
|
[1] |
CONNECTOR, ELEC
|
CAS
SPLICELOCK
|
| 19. |
700709785
|
[1] |
ELECTRICAL WIRE
|
CAS
WIRE - electrical
|
| 20. |
700709553
|
[1] |
RESISTOR
|
IH
|
| 21. |
700120657
|
[1] |
ORNAMENTAL STRIP
|
HFI
GROMMET (Not included in Kicker kit)
|
