沃尔沃零件查询2001 2001B 2001AG 2001BG 2002 2002B 2002D 2002AG 2002BG 2003 2003B 2003D 2003AG 2003BG 2003T 2003TB 2003 SOLAS 2003B SOLAS 2003TSteering SystemSteering MechanismEPC Volvo Penta Parts catalog_沃尔沃遍达Volvo Penta_工程机械

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TSteering SystemSteering MechanismEPC Volvo Penta Parts catalog

广数供应链运营团队, 14 02月, 2025，浏览： 760 次

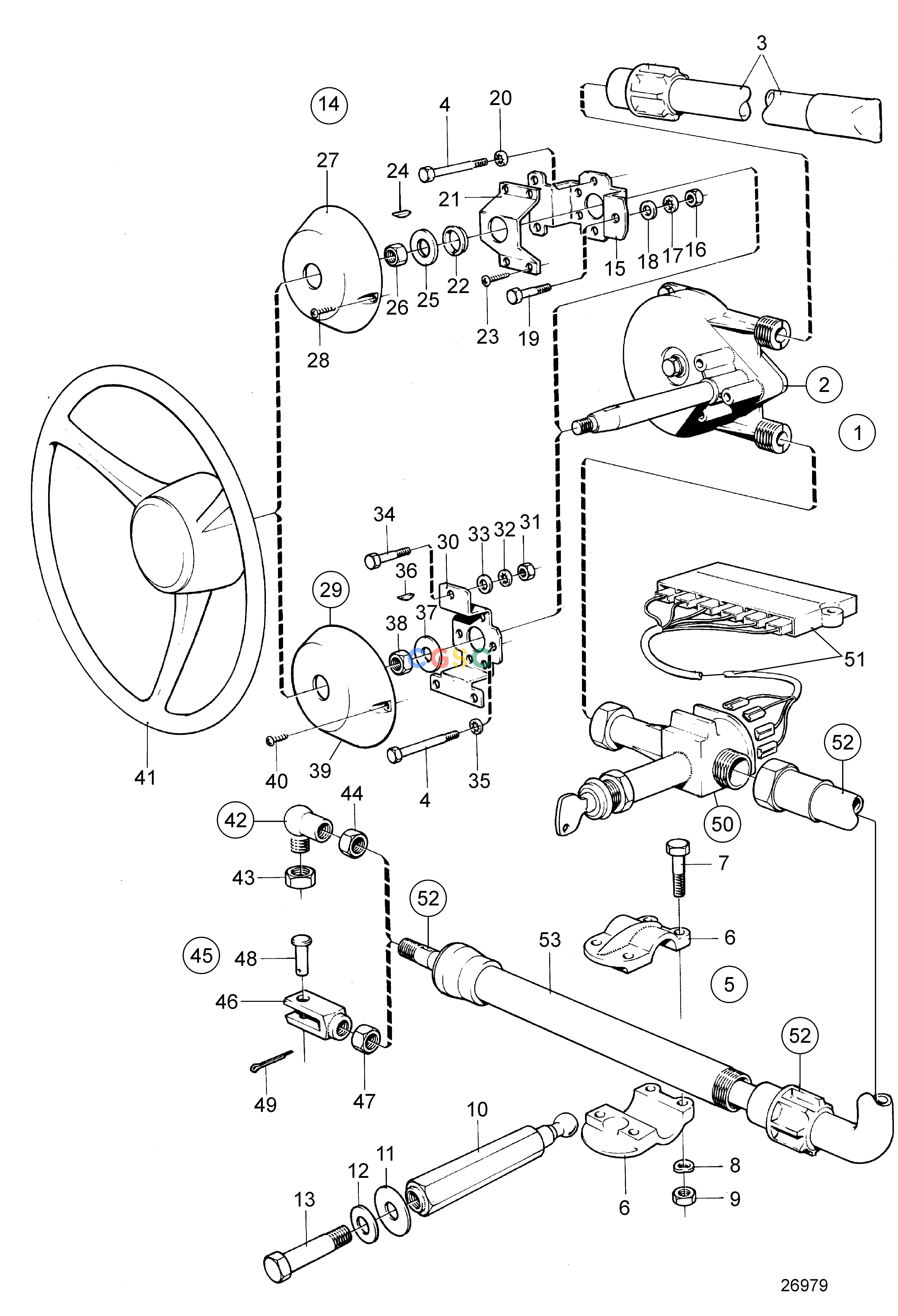

Pos.	Part No	Qty	Parts name	Comments
1.	828153	[1]	Steering head
2.
3.	839727	[1]	Plastic pipe
4.	955519	[3]	Screw	L=89mm
4.	959790	[3]	Screw	L=125mm
5.	814140	[1]	Anchorage
6.
7.
8.	941906	[4]	Spring washer
9.	955846	[4]	Hexagon nut
10.
11.	945544	[1]	Washer
12.	18702	[1]	Washer
13.	955714	[1]	Hexagon screw
14.	850024	[1]	Mounting kit	90°
15.
16.	955826	[3]	Hexagon nut
17.	955949	[3]	Toothed washer
18.	955894	[3]	Washer
19.	940161	[3]	Hexagon screw
20.	940155	[3]	Toothed washer
21.
22.	828159	[1]	Bushing
23.	958249	[4]	Cross recessed screw
24.	835059	[1]	Key
25.	960145	[1]	Washer
26.	940154	[1]	Hexagon nut
27.	828158	[1]	Cover
28.	955123	[2]	Cross recessed screw
29.	850025	[1]	Mounting kit	20°
30.
31.	955826	[3]	Hexagon nut
32.	955949	[3]	Toothed washer
33.	955894	[3]	Washer
34.	940161	[3]	Hexagon screw
35.	940155	[3]	Toothed washer
36.	835059	[1]	Key
37.	960145	[1]	Washer
38.	940154	[1]	Hexagon nut
39.	828157	[1]	Cover
40.	955123	[2]	Cross recessed screw
41.	850936	[1]	Steering wheel	(814138)
42.	814152	[1]	Ball joint
43.	950386	[1]	Lock nut
44.	940154	[1]	Hexagon nut
45.	814223	[1]	Fork kit
46.	942752	[1]	Fork
47.	940154	[1]	Hexagon nut
48.	913127	[1]	Clevis pin
49.	907824	[1]	Split pin
50.	839544	[1]	Steering lock
51.	839617	[1]	Extension cable	L=850mm
51.	828886	[1]	Steering cable	L=2000mm
51.	828887	[1]	Steering cable	L=2250mm
51.	828888	[1]	Steering cable	L=2500mm
51.	828889	[1]	Steering cable	L=2750mm
52.	850810	[1]	Steering cable	L=3000mm
52.	853185	[1]	Steering cable	L=3000mm
52.	853186	[1]	Steering cable	L=3250mm
52.	850811	[1]	Steering cable	L=3300mm
52.	853187	[1]	Steering cable	L=3500mm
52.	850812	[1]	Steering cable	L=3600mm
52.	853188	[1]	Steering cable	L=3750mm
52.	850813	[1]	Steering cable	L=3900mm
52.	853189	[1]	Steering cable	L=4000mm
52.	850814	[1]	Steering cable	L=4200mm
52.	853190	[1]	Steering cable	L=4250mm
52.	850815	[1]	Steering cable	L=4500mm
52.	853191	[1]	Steering cable	L=4500mm
52.	853192	[1]	Steering cable	L=4750mm
52.	850816	[1]	Steering cable	L=4800mm
52.	853193	[1]	Steering cable	L=5000mm
52.	850817	[1]	Steering cable	L=5100mm
52.	828863	[1]	Steering cable	L=5250mm
52.	850818	[1]	Steering cable	L=5500mm
52.	853194	[1]	Steering cable	L=5500mm
52.	828864	[1]	Steering cable	L=5750mm
52.	853195	[1]	Steering cable	L=6000mm
52.	850820	[1]	Steering cable	L=6100mm
52.	828865	[1]	Steering cable	L=6250mm
52.	853196	[1]	Steering cable	L=6500mm
52.	850822	[1]	Steering cable	L=6700mm
52.	828886	[1]	Steering cable	L=6750mm
52.	853197	[1]	Steering cable	L=7000mm
52.	853286	[1]	Steering cable	L=7500mm
52.	850826	[1]	Steering cable	L=7900mm
52.	853287	[1]	Steering cable	L=8000mm
52.	850828	[1]	Steering cable	L=8500mm
52.	853288	[1]	Steering cable	L=8500mm
52.	853289	[1]	Steering cable	L=9000mm
52.	828867	[1]	Steering cable	L=9750mm
52.	828868	[1]	Steering cable	L=10500mm
52.	828869	[1]	Steering cable	L=11250mm
52.	828874	[1]	Steering cable	L=12000mm
53.
