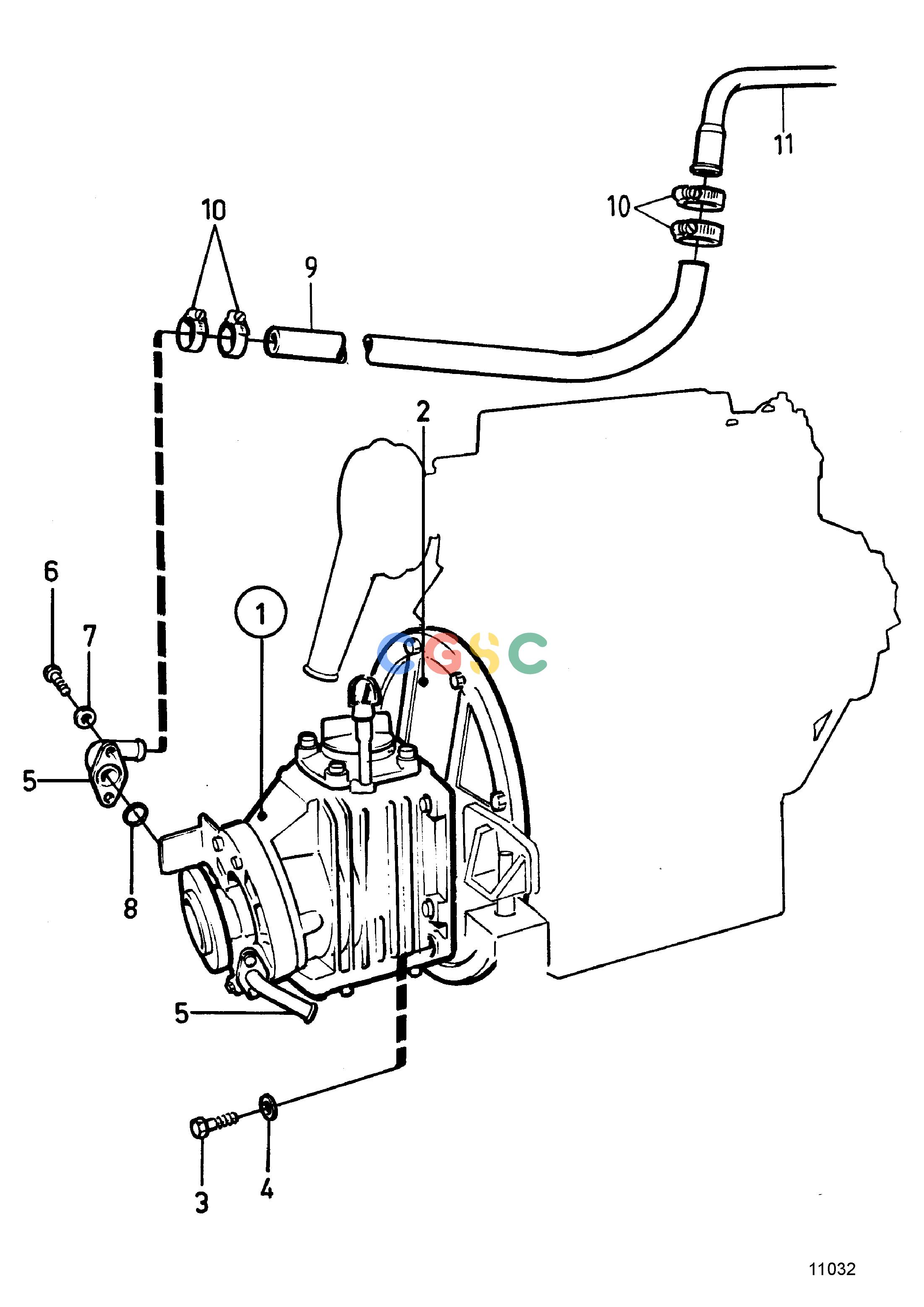

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TTransmissionsConnecting Components Reverse Gear MS2B-REPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
593 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Ratio 3,02:1
|
| 2. |
858364
|
[1] |
Cap
|
|
| 3. |
970950
|
[6] |
Hexagon screw
|
(955320)
|
| 4. |
941908
|
[6] |
Spring washer
|
|
| 5. |
840509
|
[2] |
Hose attachment
|
|
| 6. |
955270
|
[4] |
Hexagon screw
|
|
| 7. |
941906
|
[4] |
Spring washer
|
|
| 8. |
418445
|
[2] |
Sealing ring
|
|
| 9. |
952969
|
[1] |
Hose
|
|
| 10. |
961665
|
[4] |
Hose clamp
|
|
| 11. |
858711
|
[1] |
Coolant pipe
|
Reverse gear-expansion tank-sea water pump., See group 2B
|
