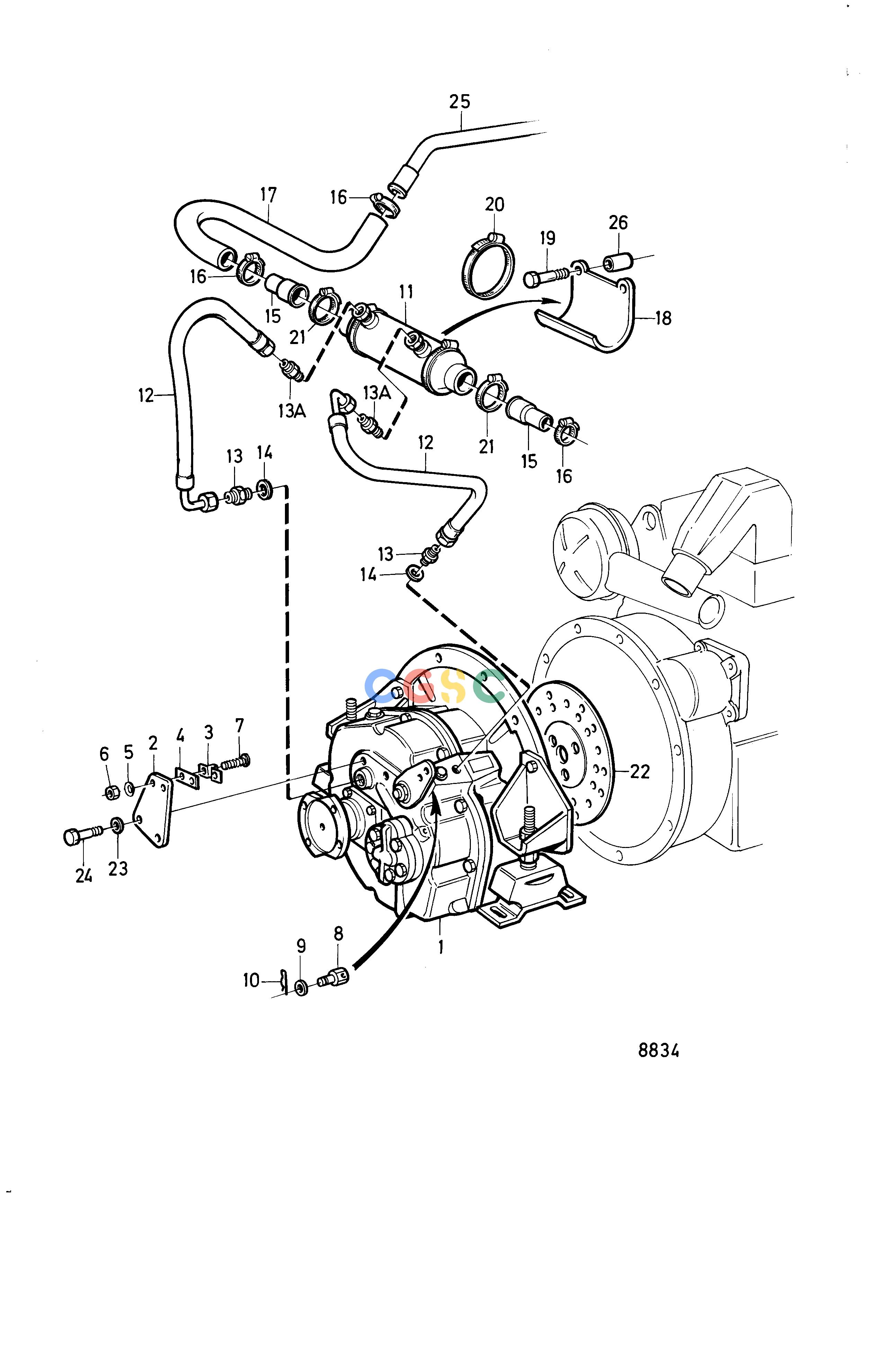

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TTransmissionsConnecting Components Reverse Gear PRM DeltaEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
679 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Ratio. 2,8
|
| 2. |
858598
|
[1] |
Bracket
|
|
| 3. |
21471054
|
[1] |
Bracket
|
|
| 4. |
819068
|
[1] |
Washer
|
|
| 5. |
940090
|
[2] |
Washer
|
|
| 6. |
946577
|
[2] |
Lock nut
|
|
| 7. |
955246
|
[2] |
Hexagon screw
|
|
| 8. |
833462
|
[1] |
Cube
|
|
| 9. |
955892
|
[1] |
Washer
|
|
| 10. |
17276
|
[1] |
Split pin
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 13A. |
|
|
|
|
| 14. |
957177
|
[2] |
Gasket
|
(957176)
|
| 15. |
858617
|
[2] |
Coolant pipe
|
|
| 16. |
961665
|
[4] |
Hose clamp
|
|
| 17. |
952969
|
[1] |
Hose
|
|
| 18. |
858797
|
[1] |
Bracket
|
For fly wheel casing 858196 and cover 858796., 2002,2002B
|
| 18. |
|
|
|
2003TB-SOLAS
|
| 18. |
858618
|
[1] |
Bracket
|
For flywheel casing 858363 and cover 858774., 2002,2002B,2003
|
| 19. |
965179
|
[2] |
Flange screw
|
For fly wheel casing 858196 and cover 858796., M8X50mm
|
| 19. |
946472
|
[2] |
Flange screw
|
For flywheel casing 858363 and cover 858774., M10X30mm
|
| 20. |
961672
|
[2] |
Hose clamp
|
|
| 21. |
853548
|
[2] |
Hose clamp
|
(961668)
|
| 22. |
858778
|
[1] |
Absorber
|
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
| 25. |
|
|
|
Reverse gear-sea water pump, See ''Sea water pump with installation comps.''group 2B
|
| 26. |
846339
|
[2] |
Spacer sleeve
|
For fly wheel casing 858196 and cover 858796.
|
