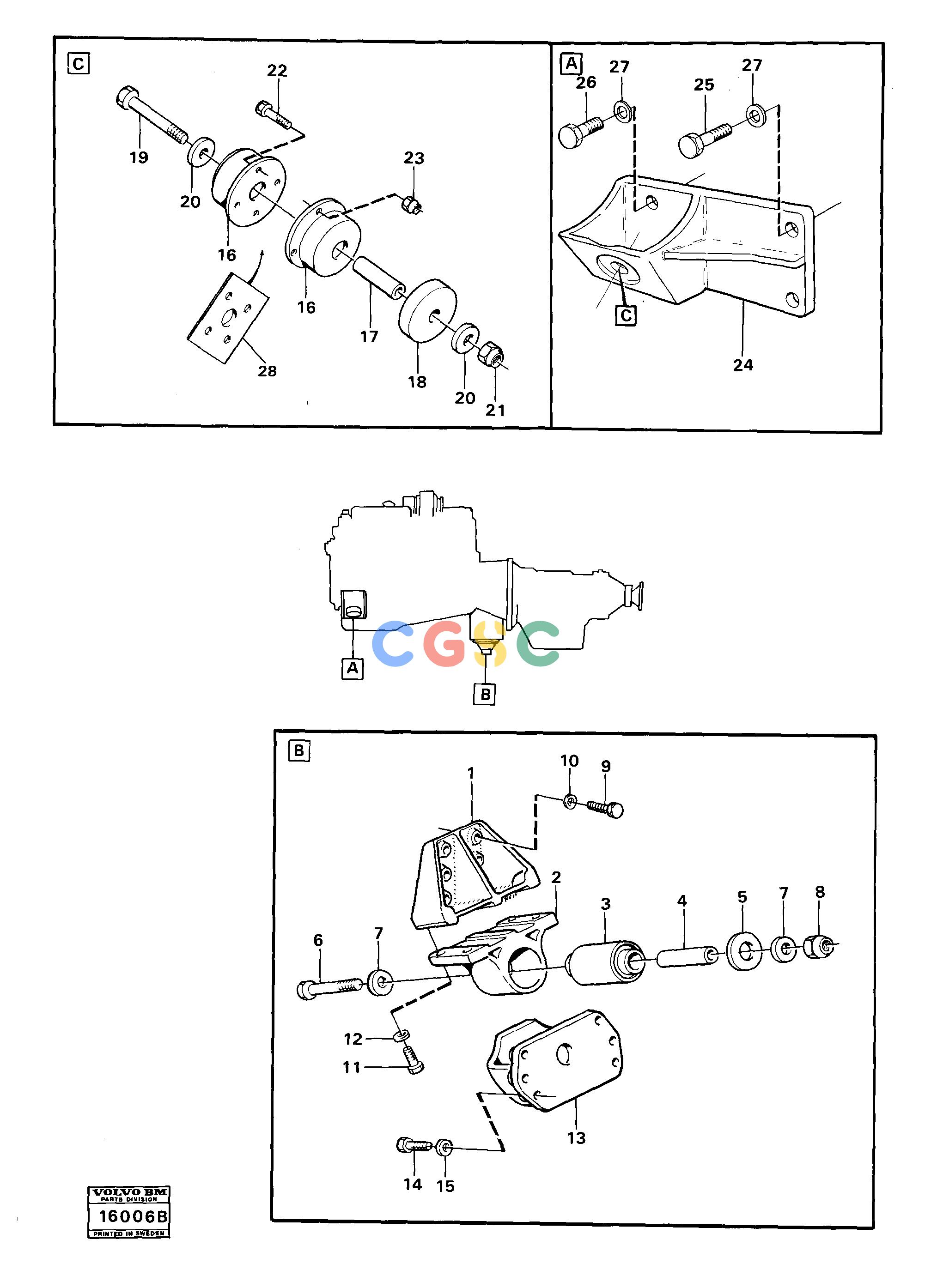

沃尔沃零件查询5350B Engine suspension.Volvo BM 5350B SER NO 2229 - 3999 NoneNoneTD 70 G, TD 71 GAAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
949 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4737260
|
[0002] |
Washer
|
|
| 6. |
VOE955380
|
[0002] |
Hexagon screw
|
|
| 7. |
VOE13955900
|
[0004] |
Washer
|
|
| 8. |
VOE963110
|
[0002] |
Lock nut
|
|
| 9. |
VOE955566
|
[0012] |
Hexagon screw
|
|
| 1. |
VOE4823093
|
[0002] |
Bracket
|
|
| 10. |
VOE60113600
|
[0012] |
Spacer sleeve
|
|
| 11. |
VOE13970971
|
[0008] |
Hexagon screw
|
|
| 12. |
VOE930843
|
[0008] |
Washer
|
SER NO - 2760
|
| |
VOE4737842
|
[0008] |
Washer
|
SER NO 2761 -
|
| 13. |
VOE4823092
|
[0002] |
Bracket
|
|
| 14. |
VOE13970973
|
[0012] |
Hexagon screw
|
|
| 15. |
VOE60110353
|
[0012] |
Washer
|
|
| 16. |
VOE1623745
|
[0004] |
Rubber cushion
|
|
| 17. |
VOE1501002
|
[0002] |
Spacer sleeve
|
|
| 18. |
VOE4737225
|
[0002] |
Plate
|
|
| 2. |
VOE4737142
|
[0002] |
Bracket
|
|
| 19. |
VOE13955378
|
[0002] |
Screw
|
|
| 20. |
VOE13955900
|
[0004] |
Washer
|
|
| 21. |
VOE963110
|
[0002] |
Lock nut
|
|
| 22. |
VOE13945444
|
[0008] |
Screw
|
|
| 23. |
VOE13945408
|
[0008] |
Nut
|
|
| 24. |
VOE4771240
|
[0001] |
Bracket
|
V. SER NO - 2760
|
| |
VOE4771241
|
[0001] |
Bracket
|
H. SER NO - 2760
|
| |
VOE4965045
|
[0002] |
Bracket
|
SER NO 2761 -
|
| 25. |
VOE955566
|
[0004] |
Hexagon screw
|
SER NO - 2760
|
| 26. |
VOE955562
|
[0004] |
Hexagon screw
|
MO - 145589
|
| 3. |
VOE4737289
|
[0001] |
Rubber bushing
|
|
| |
VOE955566
|
[0004] |
Hexagon screw
|
MO 145590 -
|
| |
VOE970978
|
[0007] |
Hexagon screw
|
|
| |
|
|
None
|
SER NO 2761 -
|
| 27. |
VOE940280
|
[0008] |
Spring washer
|
SER NO - 2760
|
| |
VOE60113600
|
[0007] |
Spacer sleeve
|
SER NO 2761 -
|
| |
VOE60110353
|
[0001] |
Washer
|
SER NO 2761 -
|
| |
VOE13970973
|
[0001] |
Hexagon screw
|
|
| |
|
|
None
|
SER NO 2761 -
|
| 28. |
VOE4941846
|
[REQ] |
Plate
|
|
| 4. |
VOE4737838
|
[0002] |
Shaft
|
|
