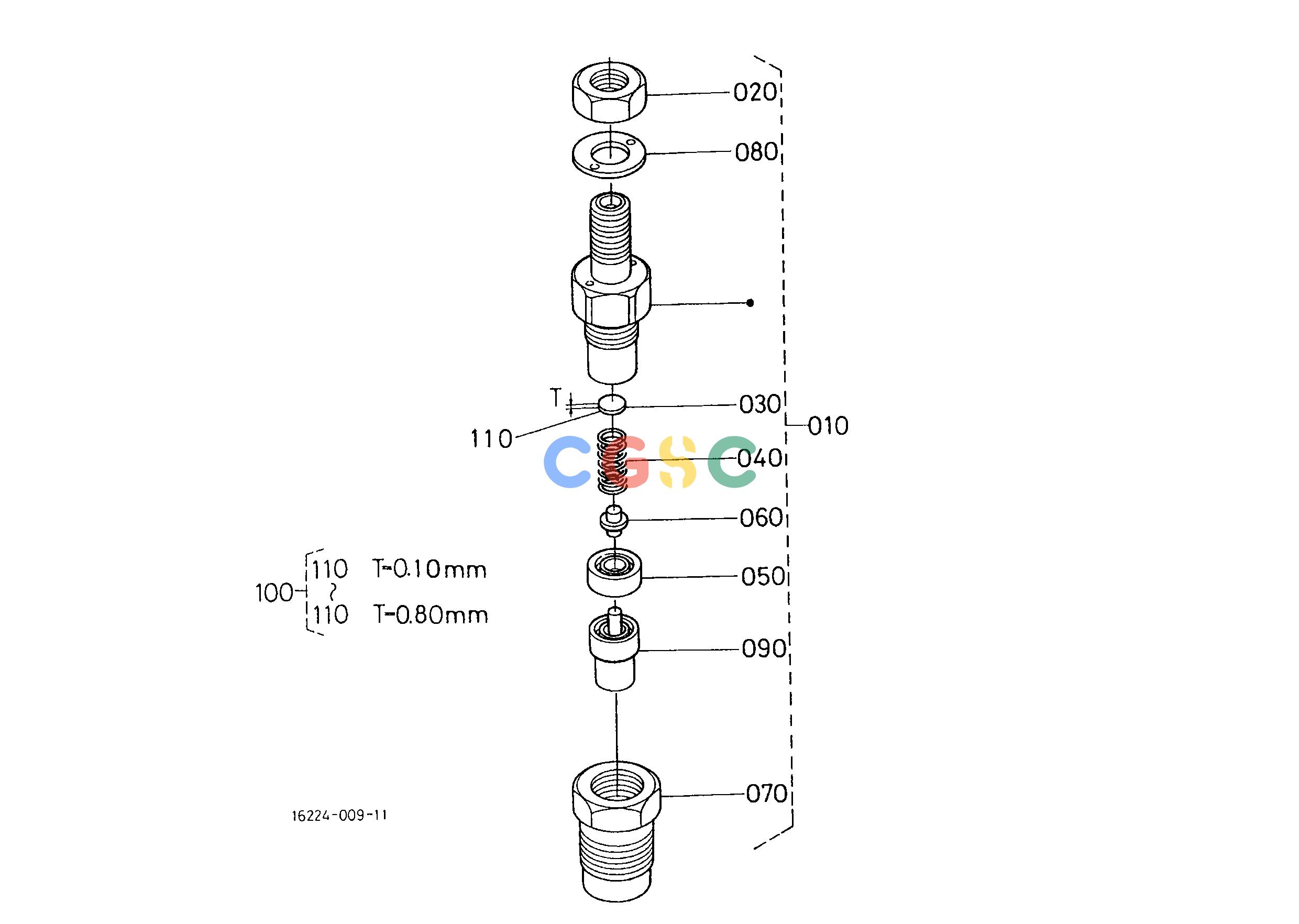

久保田零件查询020700 NOZZLE HOLDER [COMPONENT PARTS] ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
182 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1603253000
|
[3] |
HOLDER,NOZZLE,ASSY
|
0.3080(lbs); 0.140
|
| 010. |
H160153000
|
[3] |
HOLDER,NOZZLE,ASSY
|
0.3080(lbs); 0.140
|
| 020. |
1603292030
|
[3] |
NUT
|
0.0154(lbs); 0.007
|
| 030. |
1603253230
|
[3] |
WASHER,ADJUSTING
|
0.0022(lbs); 0.001
|
| 040. |
1603253170
|
[3] |
SPRING,NOZZLE
|
0.0154(lbs); 0.007
|
| 050. |
1603253350
|
[3] |
SPACER,DISTANCE
|
0.0440(lbs); 0.020
|
| 060. |
1603253160
|
[3] |
PUSH ROD
|
0.0022(lbs); 0.001
|
| 070. |
1603253280
|
[3] |
NUT,NOZZLE
|
0.0814(lbs); 0.037
|
| 080. |
1603294040
|
[3] |
WASHER,PLAIN
|
0.0044(lbs); 0.002
|
| 090. |
1603253610
|
[3] |
PIECE,NOZZLE
|
0.0462(lbs); 0.021
|
| 100. |
1603298100
|
[3] |
ASSY WASHER,ADJUST
|
0.0352(lbs); 0.016
|
| 110. |
1603298500
|
[3] |
WASHER,ADJUSTING
|
0.0022(lbs); 0.001
|
| 110. |
1603298510
|
[3] |
WASHER,ADJUSTING
|
0.0022(lbs); 0.001
|
| 110. |
1603298520
|
[3] |
WASHER,ADJUSTING
|
0.0022(lbs); 0.001
|
| 110. |
1603298530
|
[3] |
WASHER,ADJUSTING
|
0.0022(lbs); 0.001
|
| 110. |
1603298540
|
[3] |
WASHER,ADJUSTING
|
0.0022(lbs); 0.001
|
| 110. |
1603298550
|
[3] |
WASHER,ADJUSTING
|
0.0022(lbs); 0.001
|
| 110. |
1603298560
|
[3] |
WASHER,ADJUSTING
|
0.0022(lbs); 0.001
|
| 110. |
1603298570
|
[3] |
WASHER,ADJUSTING
|
0.0022(lbs); 0.001
|
| 110. |
1603298580
|
[3] |
WASHER,ADJUSTING
|
0.0022(lbs); 0.001
|
| 110. |
1603298590
|
[3] |
WASHER,ADJUSTING
|
0.0022(lbs); 0.001
|
