沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TTransmissionsConnecting Components Sail Boat Drive Unit S120C: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
542 次

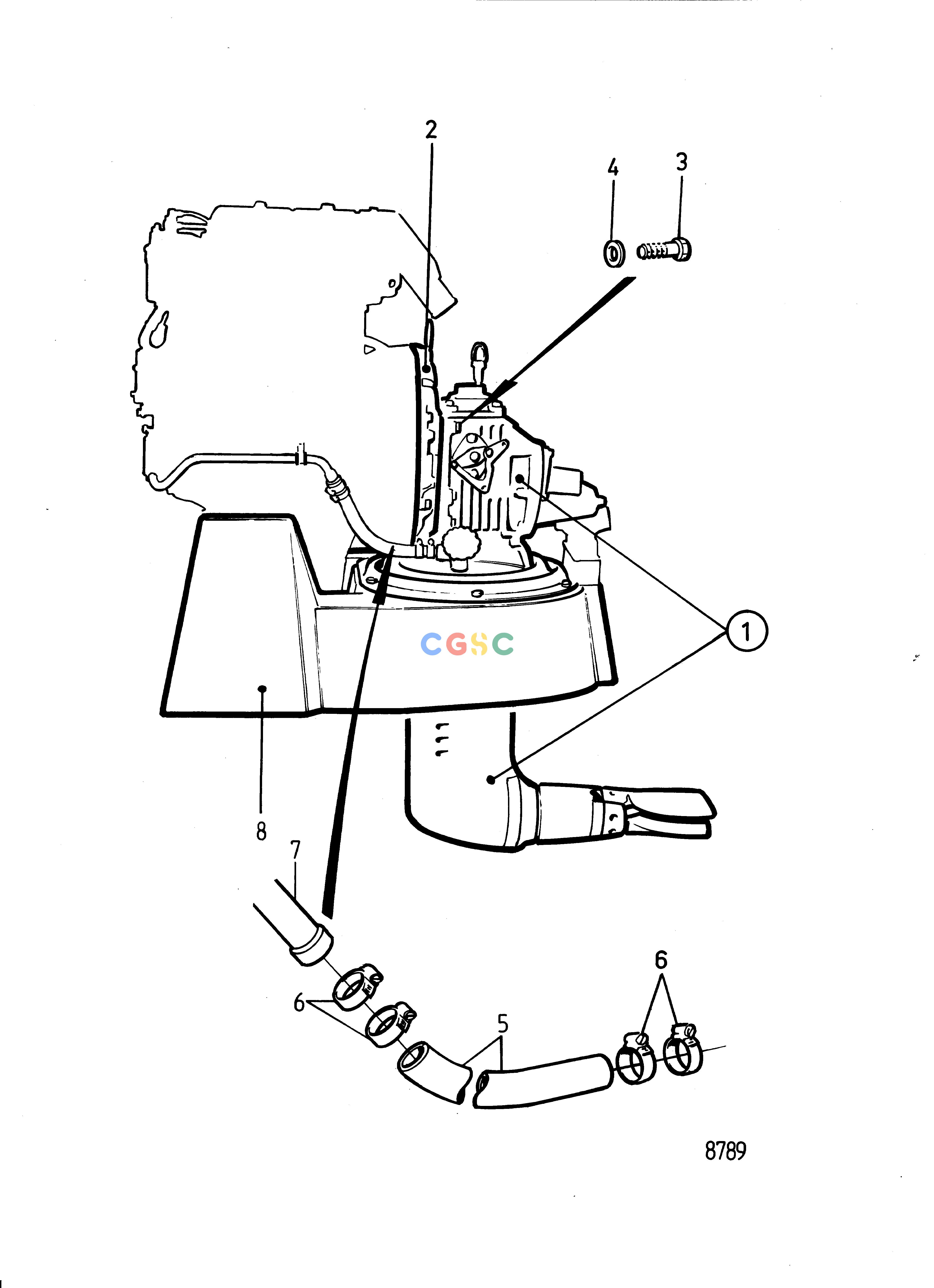

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
853958
|
[1] |
Drive
|
Ratio 2,2:1
|
| 1. |
872806
|
[1] |
Drive
|
Ratio 2,2:1
|
| 2. |
840714
|
[1] |
Flywheel housing
|
See group 2A
|
| 3. |
965185
|
[6] |
Flange screw
|
|
| 4. |
941908
|
[6] |
Spring washer
|
|
| 5. |
952969
|
[1] |
Hose
|
See group 4C
|
| 6. |
961665
|
[4] |
Hose clamp
|
See group 4C
|
| 7. |
840749
|
[1] |
Tube
|
Drive unit-sea water pump, See group 2B
|
| 8. |
852572
|
[1] |
Engine bed
|
See group 2A
|
