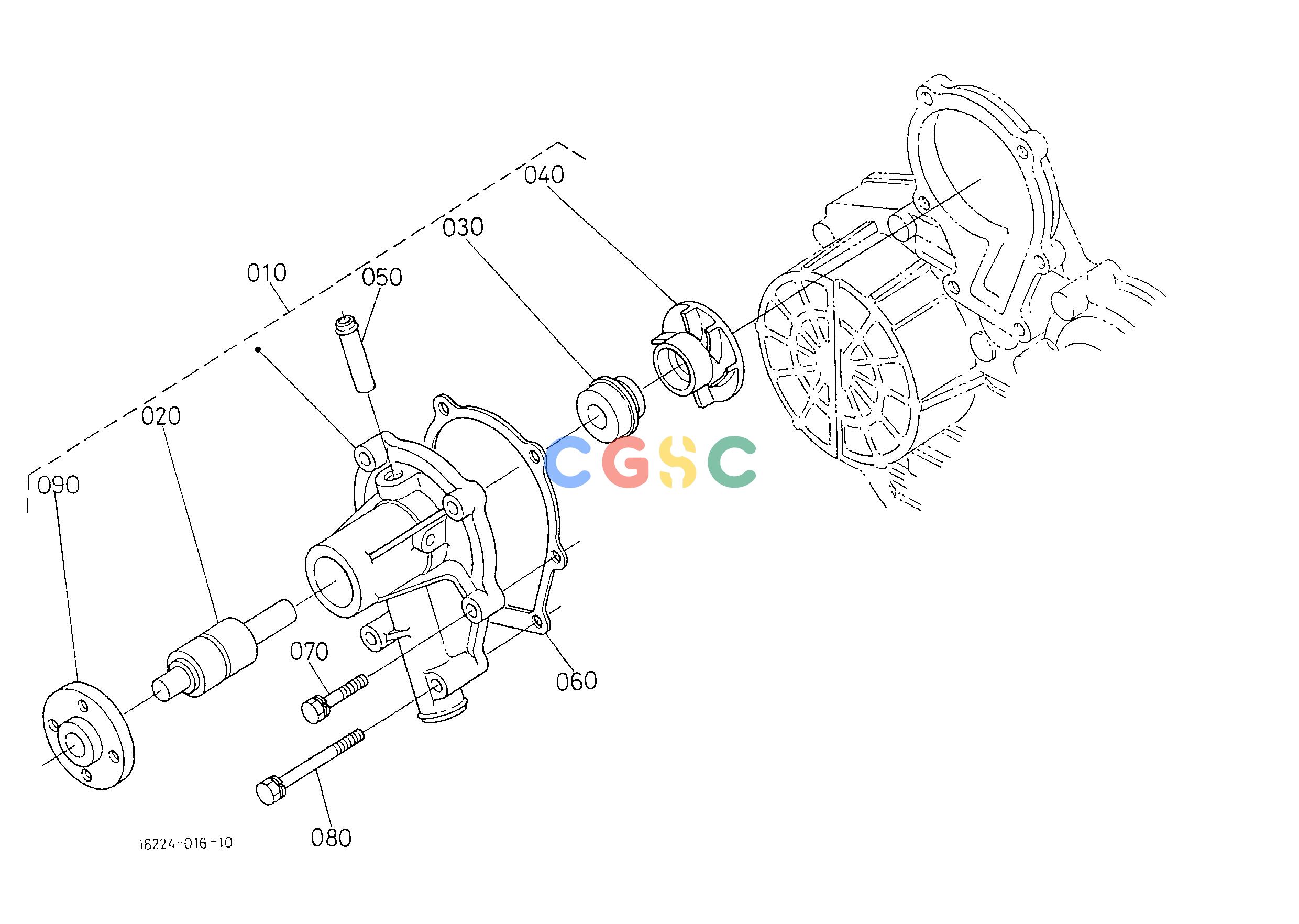

久保田零件查询050100 WATER PUMP ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
671 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1625173031
|
[1] |
PUMP,WATER,ASSY
|
0.0000(lbs); 0.000
|
| 010. |
1625173032
|
[1] |
PUMP,WATER,ASSY
|
1.9800(lbs); 0.900
|
| 020. |
1625973550
|
[1] |
BEARING
|
0.4620(lbs); 0.210
|
| 030. |
1548173050
|
[1] |
ASSY SEAL,MECHANICAL
|
0.0440(lbs); 0.020
|
| 040. |
1625173510
|
[1] |
IMPELLER,WATER PUMP
|
0.1650(lbs); 0.075
|
| 050. |
1624173340
|
[1] |
PIPE,WATER RETURN
|
0.0132(lbs); 0.006
|
| 060. |
1626173431
|
[1] |
GASKET,WATER PUMP
|
0.0000(lbs); 0.000
|
| 060. |
1625173430
|
[1] |
GASKET,WATER PUMP
|
0.0110(lbs); 0.005
|
| 070. |
0102350630
|
[4] |
BOLT,SEMS
|
0.0176(lbs); 0.008
|
| 080. |
0102350685
|
[2] |
BOLT,SEMS
|
0.0396(lbs); 0.018
|
| 090. |
1625973520
|
[1] |
FLANGE,WATER PUMP
|
0.3300(lbs); 0.150
|
