神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (06-004) - EXHAUST MUFFLER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
327 次

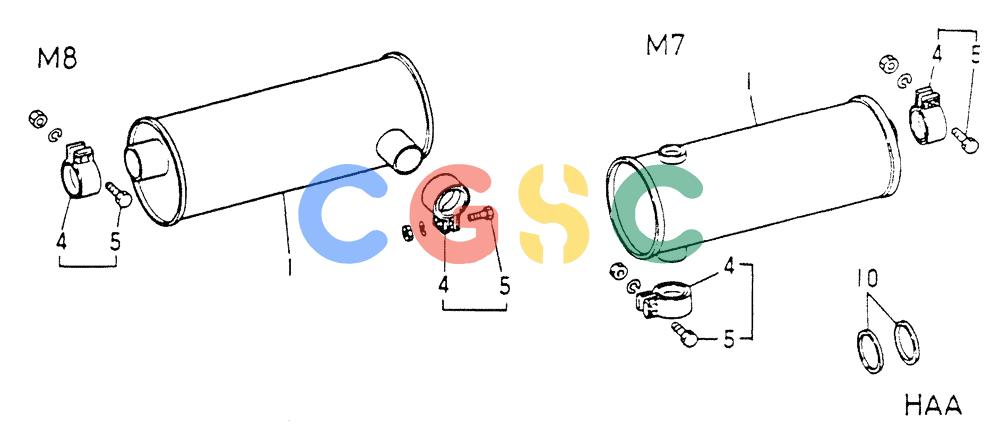

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME038905 | [1] | MUFFLER | KOBMUFFLER 240-645,FOR M7 ONLY |
| 1. | VAME039708 | [1] | MUFFLER | KOBMUFFLER 240-645,FOR M8 ONLY |
| 4-5. | VAME039172 | [2] | CLAMP | KOBCLAMP ASSY 75,FOR M8 ONLY |
| 4. | VAME039173 | [2] | CLAMP,PIPE 75 | |
| 5. | VAMF101314 | [4] | SCREW | KOBBOLT 12X35 Superseded by part number: VAF103512035 |
| 5. | VAMS446185 | [4] | NUT | KOBNUT,FLANGE 12 |
| 10. | VAME013710 | [2] | SEAL RETAINER | KOBRING,SEAL,FOR M7 ONLY |
