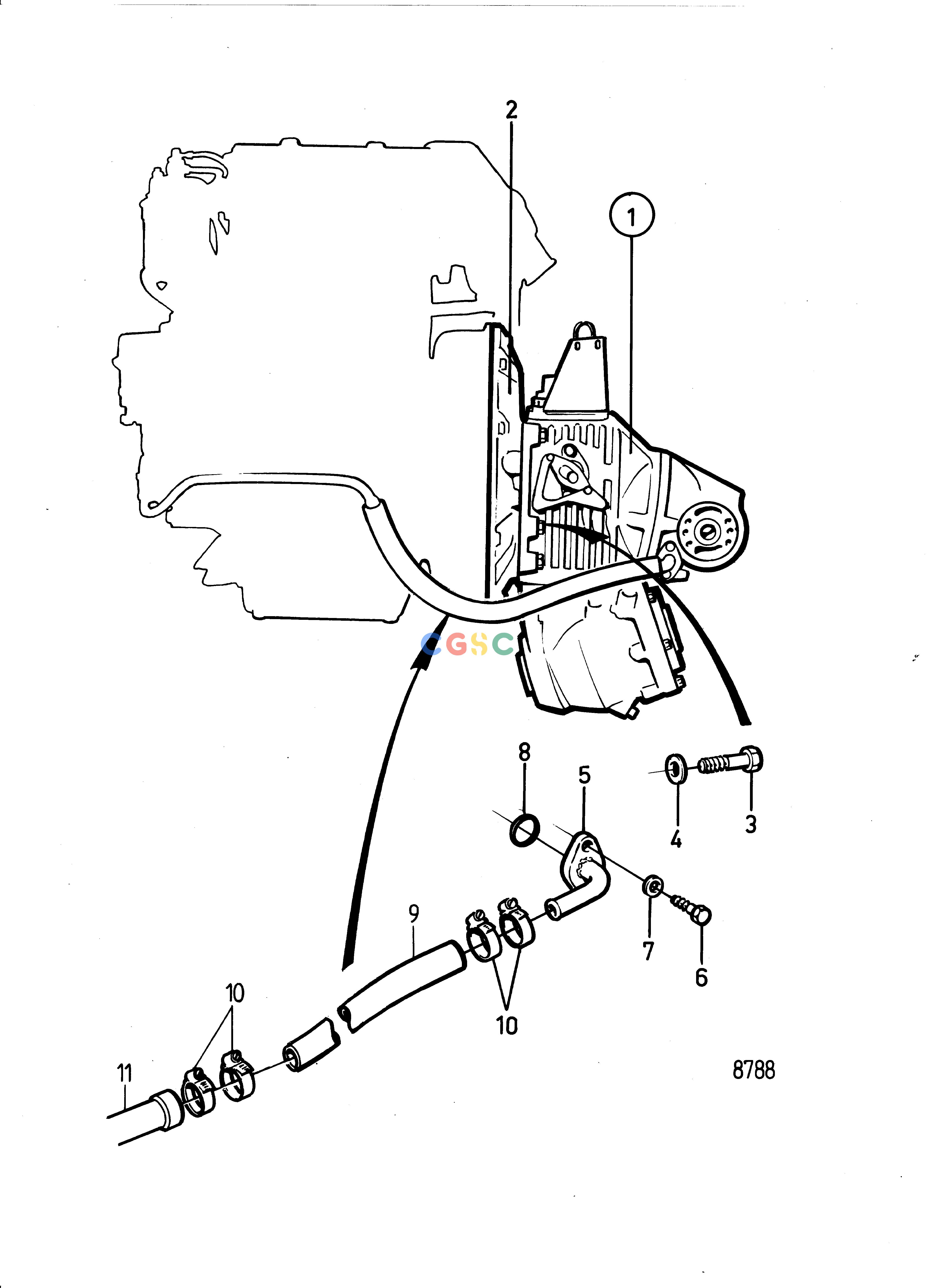

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TTransmissionsConnecting Components V-Drive Unit MS2VEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
292 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
See group 4B
|
| 2. |
840714
|
[1] |
Flywheel housing
|
See group 2A
|
| 3. |
965185
|
[6] |
Flange screw
|
(955320)
|
| 4. |
941908
|
[6] |
Spring washer
|
|
| 5. |
840509
|
[2] |
Hose attachment
|
|
| 6. |
955270
|
[4] |
Hexagon screw
|
|
| 7. |
941906
|
[4] |
Spring washer
|
|
| 8. |
418445
|
[2] |
Sealing ring
|
|
| 9. |
952969
|
[1] |
Hose
|
|
| 10. |
961665
|
[4] |
Hose clamp
|
|
| 11. |
840802
|
[1] |
Sea-water pipe
|
Drive unit-sea water pump, 2001,2001B
|
| 11. |
840749
|
[1] |
Tube
|
Drive unit-sea water pump, 2002,2002B
|
| 11. |
|
|
|
2003,2003B
|
| 11. |
858162
|
[1] |
Sea-water pipe
|
Drive unit-sea water pump, 2003T,2003TB
|
