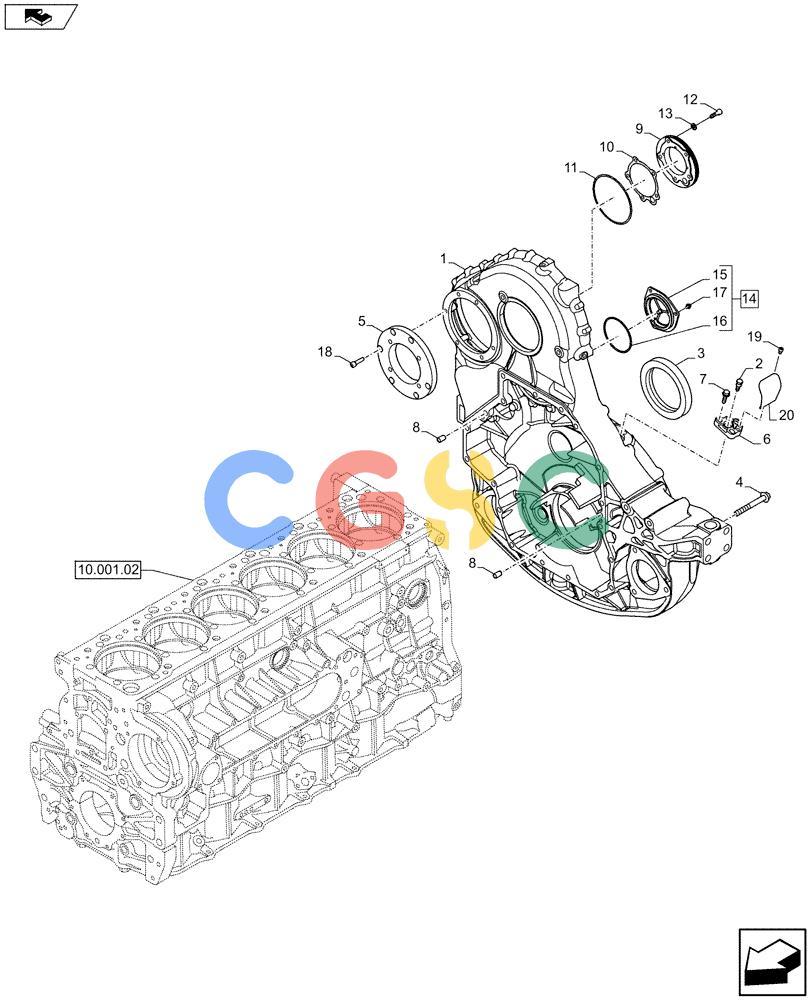

纽荷兰零件查询(F3DFA613B E004) - ENGINE 504384986 - 84550912 W/O BRAKE (10.102.02) - FLYWHEEL CASE (5801441899 - 504386630) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
690 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5801362311 | [1] | | HOUSING |
| 2. | 504087515 | [1] | SCREW | ZEDM8 x 1,25 |
| 3. | 40102693 | [1] | GASKET | TOR Superseded by part number: 5801625924 |
| 4. | 16588125 | [4] | BOLT,M12 x 1.75 x 35mm | TORM12 x 35 |
| 4. | 16593625 | [2] | BOLT,M12 x 1.75 x 120mm | TORM12 x 120 Superseded by part number: 2852324 |
| 4. | 16675835 | [1] | SCREW,M10 x 30mm | TORM10 x 30 |
| 4. | 16600024 | [2] | BOLT,M12 x 160mm | TOR |
| 4. | 16593425 | [10] | BOLT,M12 x 100mm | TORM12 x 100 |
| 4. | 16587125 | [1] | SCREW,M10 | TORM10 x 30 |
| 4. | 2852925 | [1] | SCREW | TORM12 x 130 Superseded by part number: 16599724 |
| 5. | 504383029 | [1] | | FLANGE |
| 6. | 504382560 | [1] | | PLATE |
| 7. | 16673835 | [2] | BOLT,Hex, M8 x 30mm | TOR |
| 8. | 10839810 | [2] | DOWEL,12mm OD x 18mm L | TTF Superseded by part number: 17275610 |
| 8. | 10839610 | [1] | DOWEL,M8 x 12mm | TOR |
| 9. | 500322294 | [1] | PLATE | TOR |
| 10. | 99448739 | [1] | GASKET | TOR |
| 11. | 14466981 | [1] | O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro | BAS |
| 12. | 14306424 | [5] | HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd | LEC |
| 13. | 10519624 | [5] | WASHER,8.15mm ID x 17mm OD x 2mm Thk | TOR |
| 14. | NSS | [1] | NOT SERVICED SEPARATELY | CONASSY Contains Ref.15, 16, 17 |
| 15. | 504068516 | [1] | | COVER |
| 16. | 99435566 | [1] | SEAL | TOR |
| 17. | 16673635 | [3] | BOLT,Hex, M8 x 1.25 x 20mm, Full Thd | TORM8 x 20 Superseded by part number: 16978124 |
| 18. | 14306524 | [6] | HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd | JES |
| 19. | 16688925 | [2] | BOLT,M6 x 10mm | TOR |
| 20. | 504382562 | [1] | | SHIELD |
