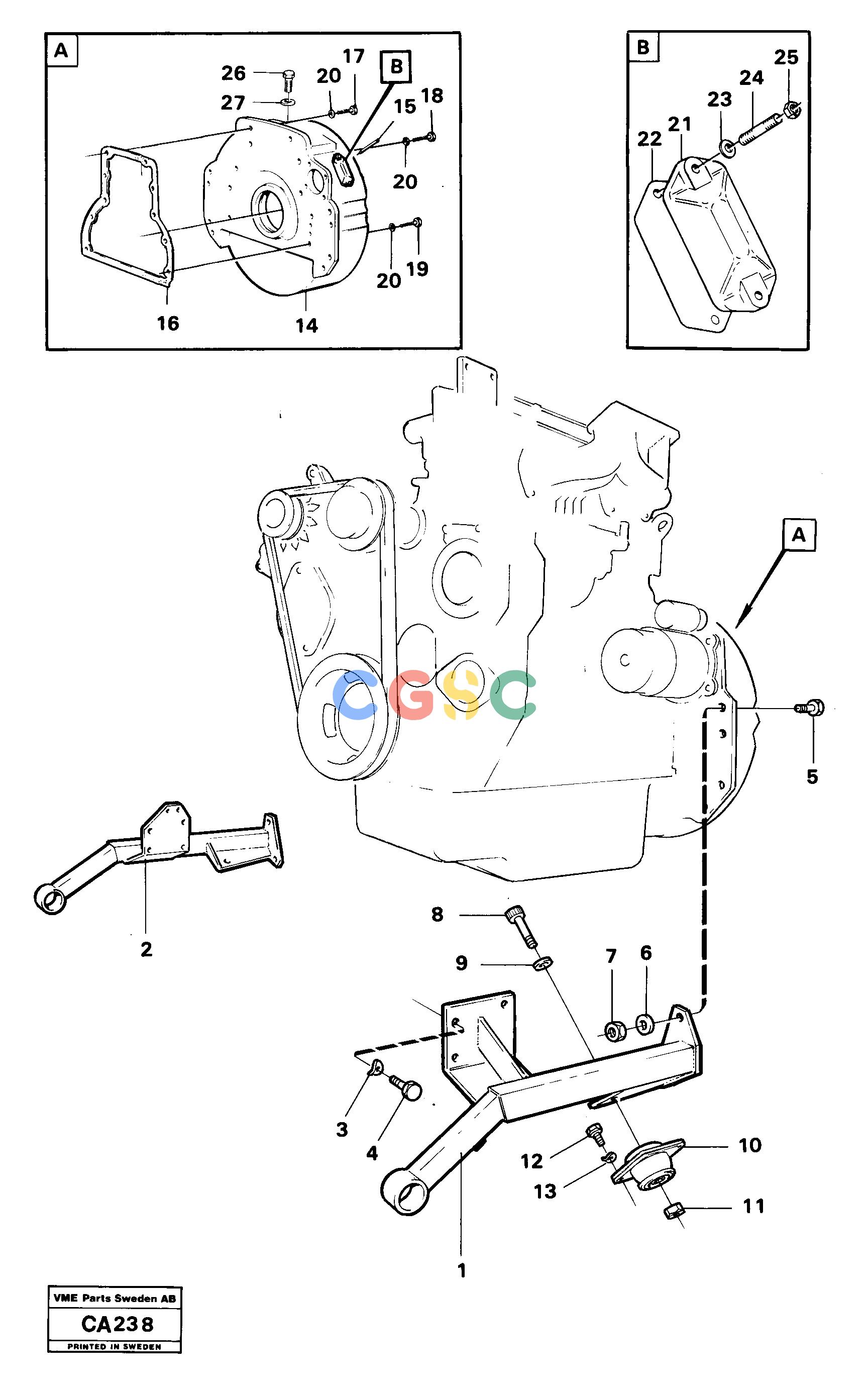

沃尔沃零件查询6300 Engine support and flywheel housing6300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
429 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13955366
|
[0004] |
Screw
|
|
| 6. |
VOE13955900
|
[0004] |
Washer
|
|
| 7. |
VOE945884
|
[0004] |
Lock nut
|
|
| 8. |
VOE959285
|
[0002] |
Allen Hd Screw
|
|
| 9. |
VOE13955900
|
[0004] |
Washer
|
|
| 1. |
VOE4953360
|
[0001] |
Bracket
|
LH
|
| 10. |
VOE4714882
|
[0002] |
Rubber damper
|
|
| 11. |
VOE945884
|
[0002] |
Lock nut
|
|
| 12. |
VOE13970944
|
[0008] |
Hexagon screw
|
|
| 13. |
VOE941908
|
[0008] |
Spring washer
|
|
| 14. |
VOE4804802
|
[0001] |
Flywheel housing
|
|
| 15. |
VOE4804159
|
[0001] |
Setting indicator
|
|
| |
VOE17229696
|
[0001] |
Pipe
|
|
| |
VOE905654
|
[0002] |
Drive screw
|
|
| 16. |
VOE1161277
|
[0001] |
Sealant
|
|
| 17. |
VOE955578
|
[0002] |
Hexagon screw
|
|
| 2. |
VOE4953361
|
[0001] |
Bracket
|
RH
|
| 18. |
VOE955580
|
[0006] |
Hexagon screw
|
|
| 19. |
VOE955583
|
[0002] |
Hexagon screw
|
|
| 20. |
VOE941911
|
[0010] |
Spring washer
|
|
| |
VOE955899
|
[0002] |
Plain washer
|
|
| 21. |
VOE4772168
|
[0001] |
Cover
|
|
| 22. |
VOE4804167
|
[0001] |
Gasket
|
|
| 23. |
VOE955892
|
[0002] |
Plain washer
|
|
| 24. |
VOE924054
|
[0002] |
Stud
|
|
| 25. |
VOE946035
|
[0002] |
Lock nut
|
|
| 26. |
VOE955560
|
[0002] |
Hexagon screw
|
ENG 64062 -
|
| 27. |
VOE60110353
|
[0002] |
Washer
|
ENG 64062 -
|
| 3. |
VOE940280
|
[0008] |
Spring washer
|
|
| 4. |
VOE955561
|
[0008] |
Hexagon screw
|
SER NO - 1074
|
| |
VOE955562
|
[0008] |
Hexagon screw
|
SER NO 1075 -
|
