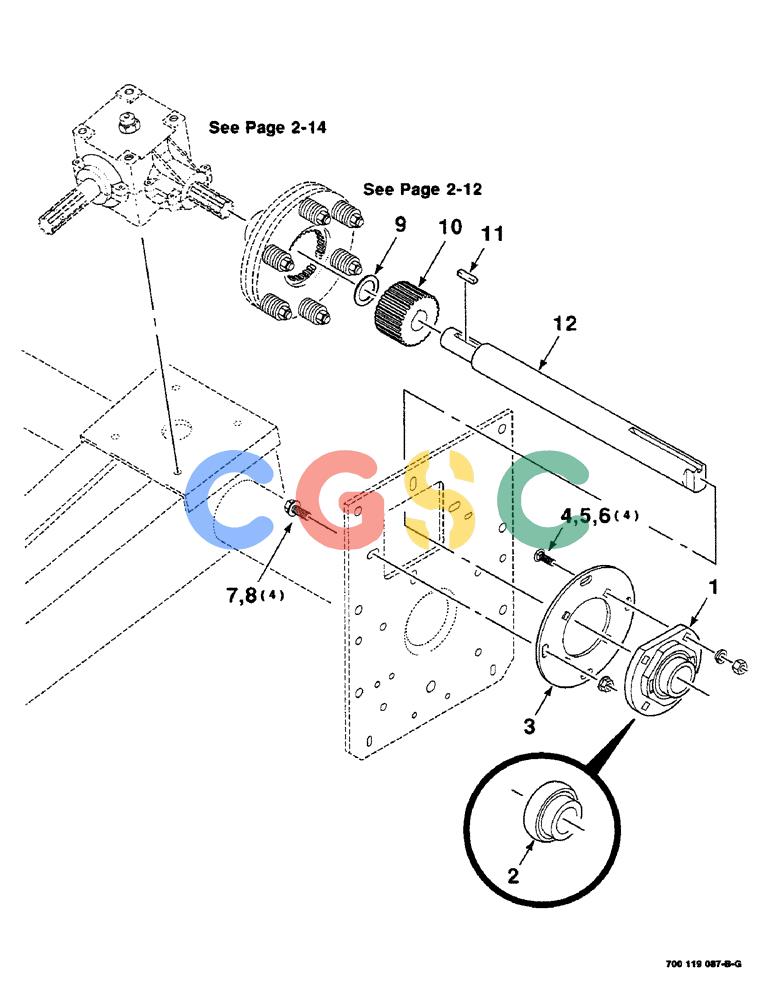

凯斯零件查询(8455) - CASE IH ROUND BALER (STANDARD) (1/92-12/99) (2-08) - DRIVE SHAFT ASSEMBLY (CLUTCH), (S.N. CFH0078656 AND LATER) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
786 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700109753
|
[1] |
BEARING ASSY,97 mm ID x 108 mm OD x 33 mm
|
CAS
BEARING ASSEMBLY (Includes item 2)
|
| 2. |
712158
|
[1] |
SPHERICAL BEARING,2" ID x 100 mm OD
|
L
BEARING Superseded by part number: 47577203
|
| 3. |
700126762
|
[1] |
PLATE
|
HFI
|
| 4. |
433-824
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 x 1-1/2 RHSNB Superseded by part number: 280420, 72187237
|
| 5. |
80679
|
[4] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 6. |
425-108
|
[4] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 7. |
700710984
|
[4] |
SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC
|
CAS
1/2-13 x 1-1/4 HFS GR8
|
| 8. |
231-5148
|
[4] |
FLANGE NUT,Flg, USR, 1/2"-13
|
CAS
Superseded by part number: 72187069, 86512371
|
| 9. |
700713757
|
[1] |
WASHER
|
IH
- nylon
|
| 10. |
700129404
|
[1] |
HUB
|
IH
|
| 11. |
700129407
|
[1] |
BUCKET TOOTH KEY
|
IH
5/16 x 5/16 x 1-1/2 KEY - special
|
| 12. |
700116057
|
[1] |
SHAFT
|
IH
|
