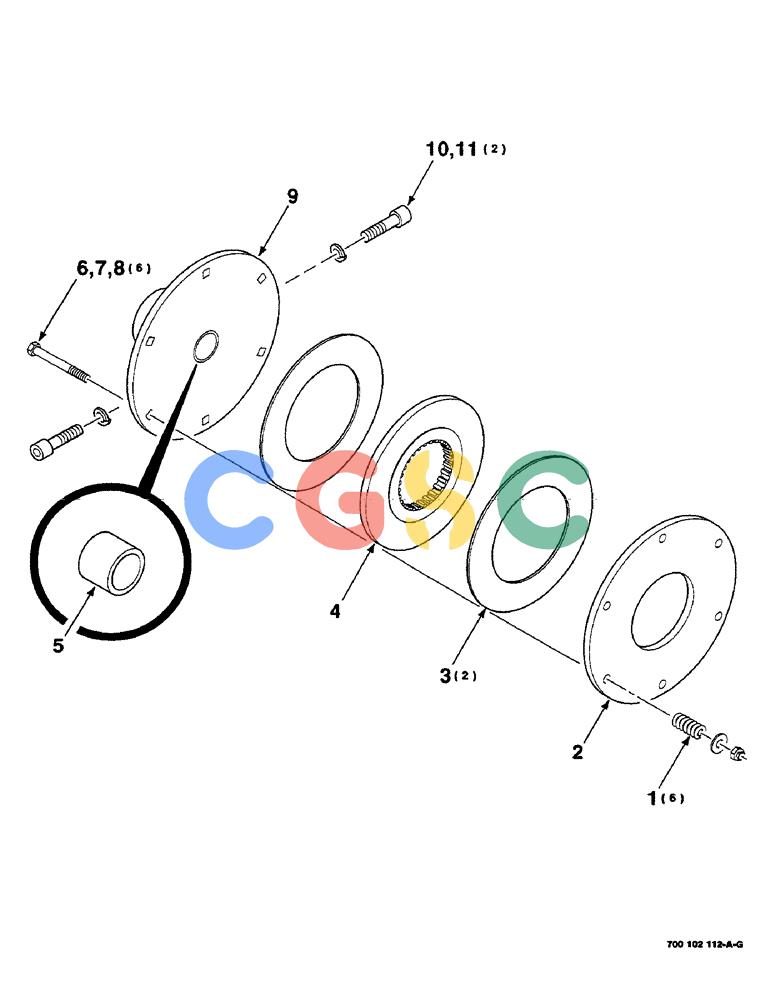

凯斯零件查询(8455) - CASE IH ROUND BALER (STANDARD) (1/92-12/99) (2-12) - SLIP CLUTCH ASSEMBLY, (S.N. CFH0078656 AND LATER) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
513 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
58107
|
[6] |
SPRING
|
IH
- compression
|
| 2. |
6248173
|
[1] |
LARGE PLATE
|
IH
PLATE - pressure
|
| 3. |
700710945
|
[2] |
CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk
|
L
DISC - clutch
|
| 4. |
700129405
|
[1] |
DISC
|
IH
- clutch
|
| 5. |
805580
|
[1] |
BRONZE BUSHING
|
IH
BUSHING - bronze
|
| 6. |
413-652
|
[6] |
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
|
CAS
Superseded by part number: 9637240
|
| 7. |
495-21044
|
[6] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 8. |
231-1406
|
[6] |
LOCK NUT,3/8"-16, GB
|
CAS
3/8-16 LHSN
|
| 9. |
700125029
|
[1] |
DISC
|
CAS
WA (Includes item 5)
|
| 10. |
71142
|
[2] |
HEX SOC SCREW,1/2"-13 x 2"
|
IH
1/2-13 x 2 HSHCS SPL Superseded by part number: 86570628
|
| 11. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
