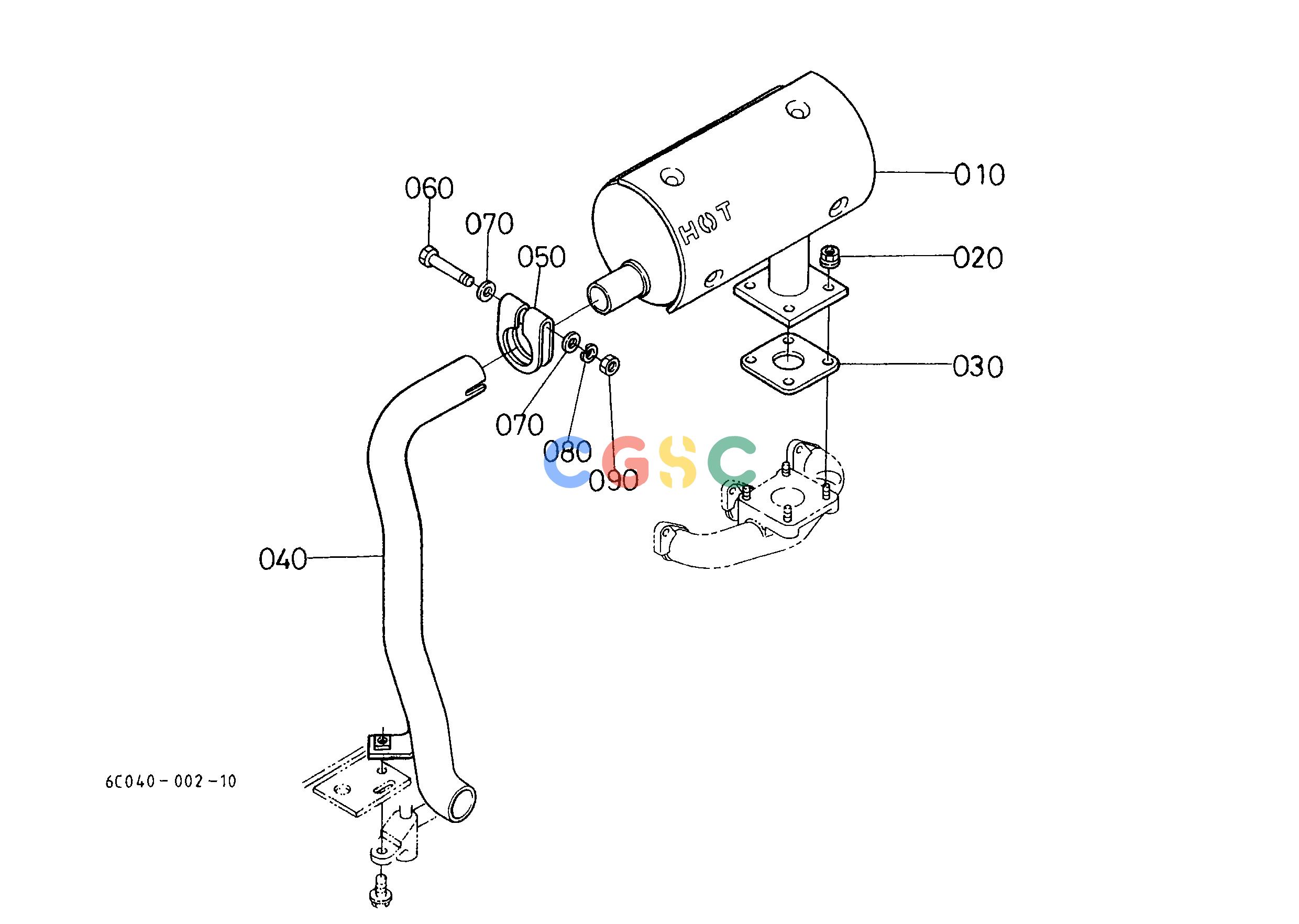

久保田零件查询060500 MUFFLER ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
453 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04058401
|
[1] |
COMP.MUFFLER
|
0.0000(lbs); 0.000
|
| 010. |
6C04058403
|
[1] |
COMP.MUFFLER
|
5.8080(lbs); 2.640
|
| 010. |
6C04058404
|
[1] |
COMP.MUFFLER
|
5.3680(lbs); 2.440
|
| 020. |
0212150080
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 030. |
1526312370
|
[1] |
PACKING,MUFFLER
|
0.0330(lbs); 0.015
|
| 040. |
6C04058421
|
[1] |
PIPE,EXHAUST
|
0.0000(lbs); 0.000
|
| 040. |
6C04058424
|
[1] |
PIPE,EXHAUST
|
1.1440(lbs); 0.520
|
| 050. |
1522112433
|
[1] |
CLAMP,MUFFLER PIPE
|
0.1100(lbs); 0.050
|
| 060. |
0115350865
|
[1] |
HEX.BOLT
|
0.0550(lbs); 0.025
|
| 070. |
0401350080
|
[2] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 080. |
0451250080
|
[1] |
WASHER,SPRING LOCK
|
0.0044(lbs); 0.002
|
| 090. |
0211450080
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
