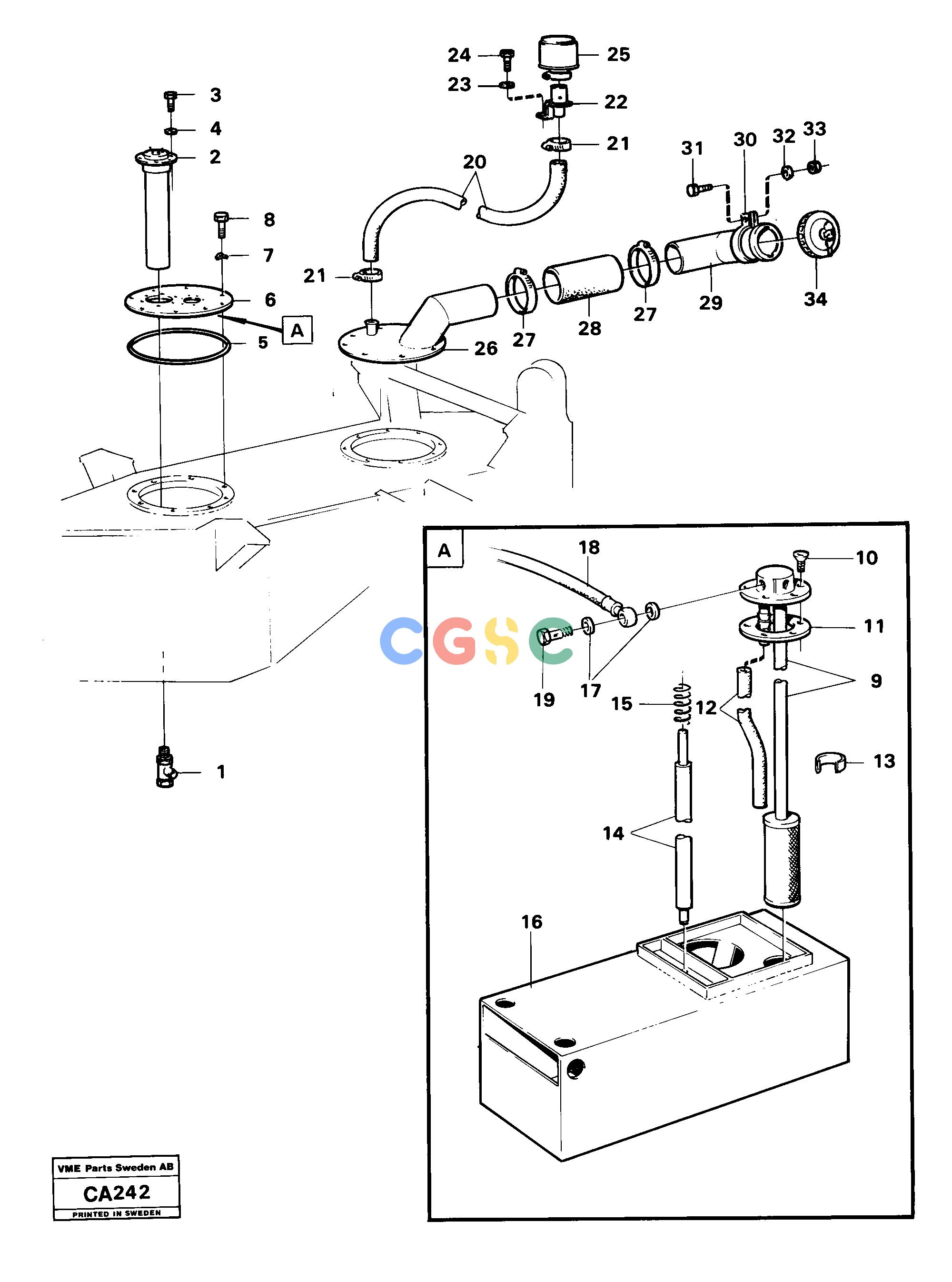

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE957170
|
[0006] |
Gasket
|
|
| 5. |
VOE925284
|
[0002] |
O-ring
|
|
| 6. |
|
[0001] |
Cover
|
|
| 7. |
VOE13941907
|
[0016] |
Washer
|
|
| 8. |
VOE13955295
|
[0016] |
Screw
|
|
| |
|
[0001] |
Fuel tank
|
|
| 9. |
VOE4752944
|
[0001] |
Suction pipe
|
|
| 10. |
VOE956186
|
[0005] |
Cross recessed sunk screw
|
|
| 11. |
VOE7089865
|
[0001] |
Gasket
|
|
| 12. |
VOE13944075
|
[REQ] |
Rubber hose
|
L=320
|
| 13. |
VOE684281
|
[2] |
Clamp
|
|
| 14. |
|
[1] |
Rod
|
|
| 15. |
VOE11008369
|
[1] |
Compression spring
|
|
| 16. |
|
[1] |
Reservoir
|
|
| 1. |
VOE11000127
|
[0001] |
Drain cock
|
|
| 17. |
VOE13947621
|
[4] |
Plane gasket
|
|
| 18. |
VOE4804811
|
[2] |
Fuel hose
|
|
| 19. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 20. |
VOE952970
|
[REQ] |
Hose
|
L = 750
|
| 21. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 22. |
|
[1] |
Holder
|
|
| 23. |
VOE13955894
|
[1] |
Washer
|
|
| 24. |
VOE955297
|
[1] |
Hexagon screw
|
|
| 2. |
VOE4827558
|
[0001] |
Tank unit
|
|
| 25. |
VOE11172907
|
[1] |
Air filter
|
|
| 26. |
|
[1] |
Cover
|
|
| 27. |
VOE930834
|
[2] |
Hose clamp
|
|
| 28. |
VOE11704295
|
[REQ] |
Hose
|
L = 260
|
| 29. |
|
[1] |
Pipe
|
|
| |
VOE4708245
|
[0001] |
Gasket
|
|
| 30. |
VOE4751184
|
[1] |
Clamp
|
|
| 31. |
VOE13970948
|
[1] |
Hexagon screw
|
|
| 32. |
VOE976945
|
[2] |
Washer
|
|
| 33. |
VOE13971083
|
[1] |
Lock nut
|
|
| 34. |
VOE1189577
|
[1] |
Filler cap
|
LÅSBART/LOCKABLE
|
| 3. |
VOE956092
|
[0006] |
Cross recessed screw
|
|
| |
VOE1698164
|
[1] |
Gasket
|
|
| |
VOE11991396
|
[2] |
Key
|
|
