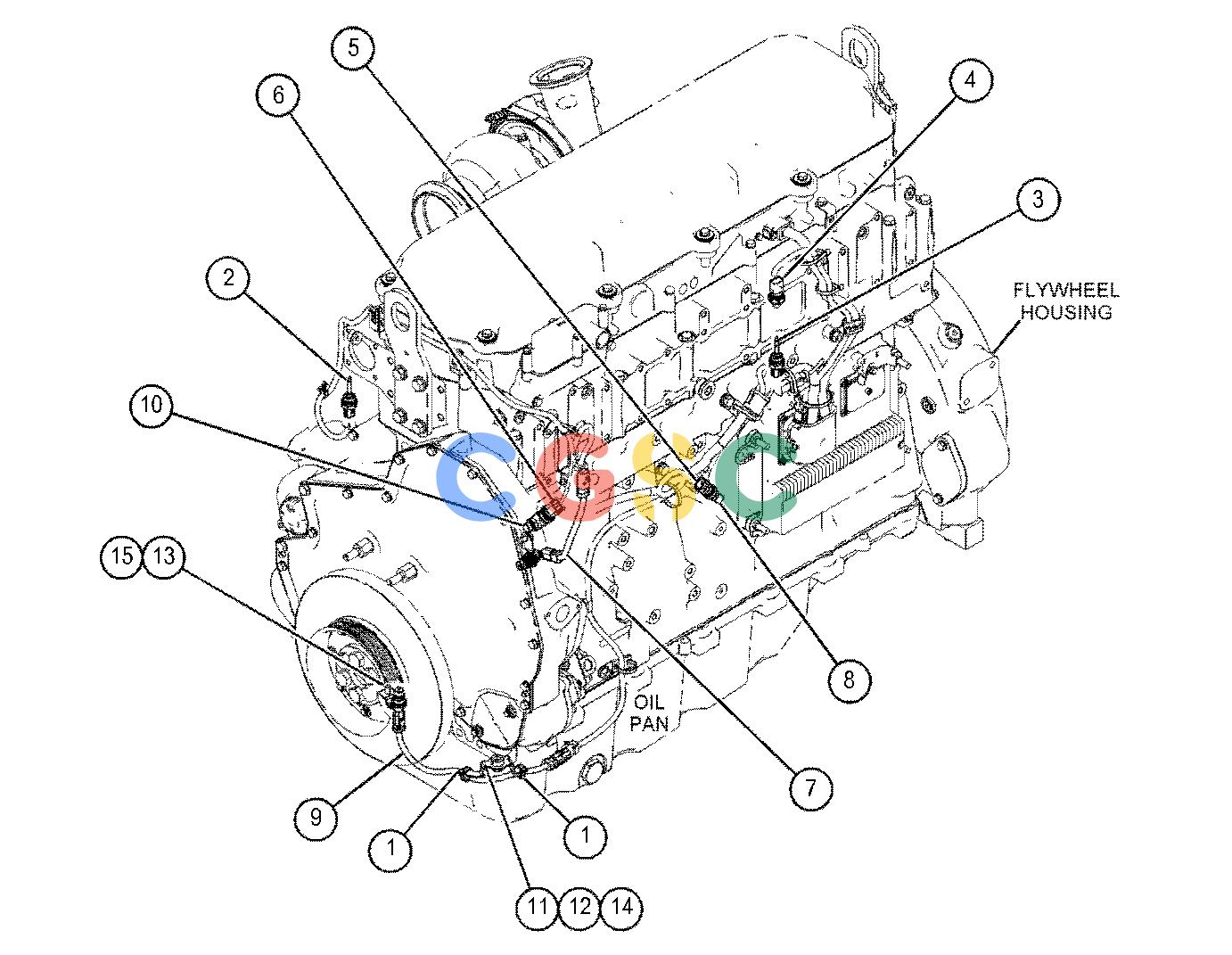

卡特零件查询（725） 528-4093: SENSOR GP-ENGINE
广数供应链运营团队, 14 02月, 2025，浏览：
256 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 234-5012Y | [1] | SENSOR GP-TEMPERATURE(COOLANT TEMPERATURE) | |
| 3. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(INTAKE AIR MANIFOLD) | |
| 4. | 249-0096Y | [1] | SENSOR GP-PRESSURE(INTAKE AIR) | |
| 5. | 274-6719 | [1] | SENSOR GP-PRESSURE(OIL PRESSURE) | |
| 6. | 276-8548Y | [1] | SENSOR GP-PRESSURE(ATMOSPHERIC PRESSURE) | |
| 7. | 300-9806Y | [1] | SENSOR GP-SPEED(TIMING, CAMSHAFT) | |
| 8. | 364-8174 | [1] | ELBOW AS | |
| | 117-0067 | [1] | ELBOW | |
| | 214-7566 | [2] | SEAL-O-RING | |
| 9. | 384-1836Y | [1] | SENSOR GP-SPEED(CRANKSHAFT) | |
| 10. | 389-3713 | [1] | ELBOW AS | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 234-4355 | [1] | ADAPTER-O-RING | |
| 11. | 443-4151 | [1] | BRACKET | |
| 12. | 2Y-5829M | [1] | NUT(M10X1.5-THD) | |
| 13. | 6V-5215M | [2] | BOLT(M8X1.25X16-MM) | |
| 14. | 7W-9094 | [1] | SPACER(10.5X20X9-MM THK) | |
| 15. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
