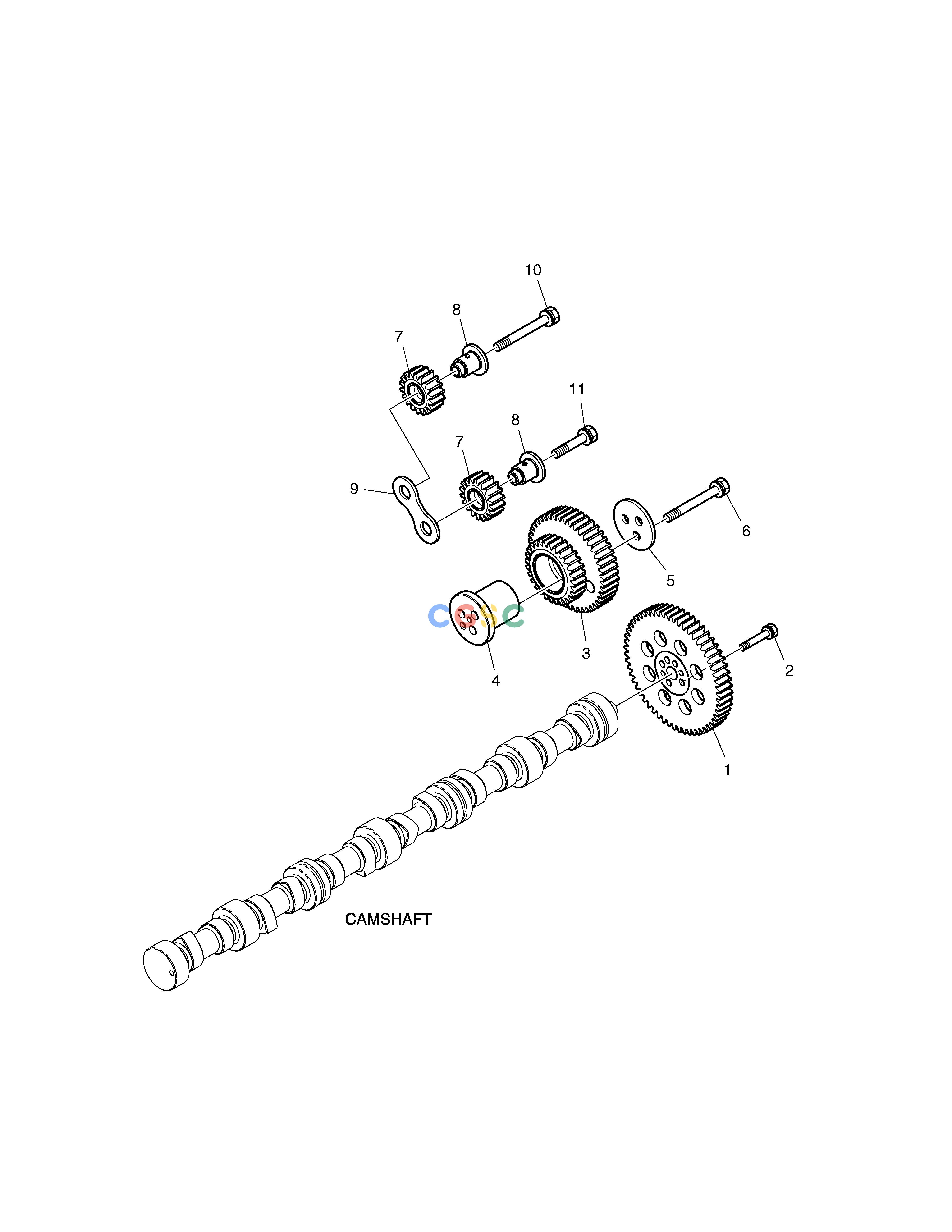

斗山零件查询CAM SHAFT DRIVE DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
284 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.04501-0017
|
[1] |
GEAR;CAM SHAFT
|
|
| 10. |
65.90020-0118
|
[1] |
BOLT;COLLARED HEX
|
|
| 11. |
65.90020-0119
|
[1] |
BOLT;COLLARED HEX
|
|
| 2. |
65.90020-0117
|
[4] |
BOLT;COLLARED HEX
|
|
| 3. |
65.04505-5018
|
[1] |
GEAR;IDLE
|
|
| 4. |
65.04506-0016
|
[1] |
PIN;IDLE GEAR
|
|
| 5. |
65.90720-0034B
|
[1] |
WASHER;THRUST
|
|
| 6. |
65.90020-0118
|
[3] |
BOLT;COLLARED HEX
|
|
| 7. |
65.11301-5002
|
[2] |
GEAR;DRIVE
|
|
| 8. |
65.04506-0015
|
[2] |
PIN;IDLE GEAR
|
|
| 9. |
65.90720-0033A
|
[1] |
WASHER;THRUST
|
|
