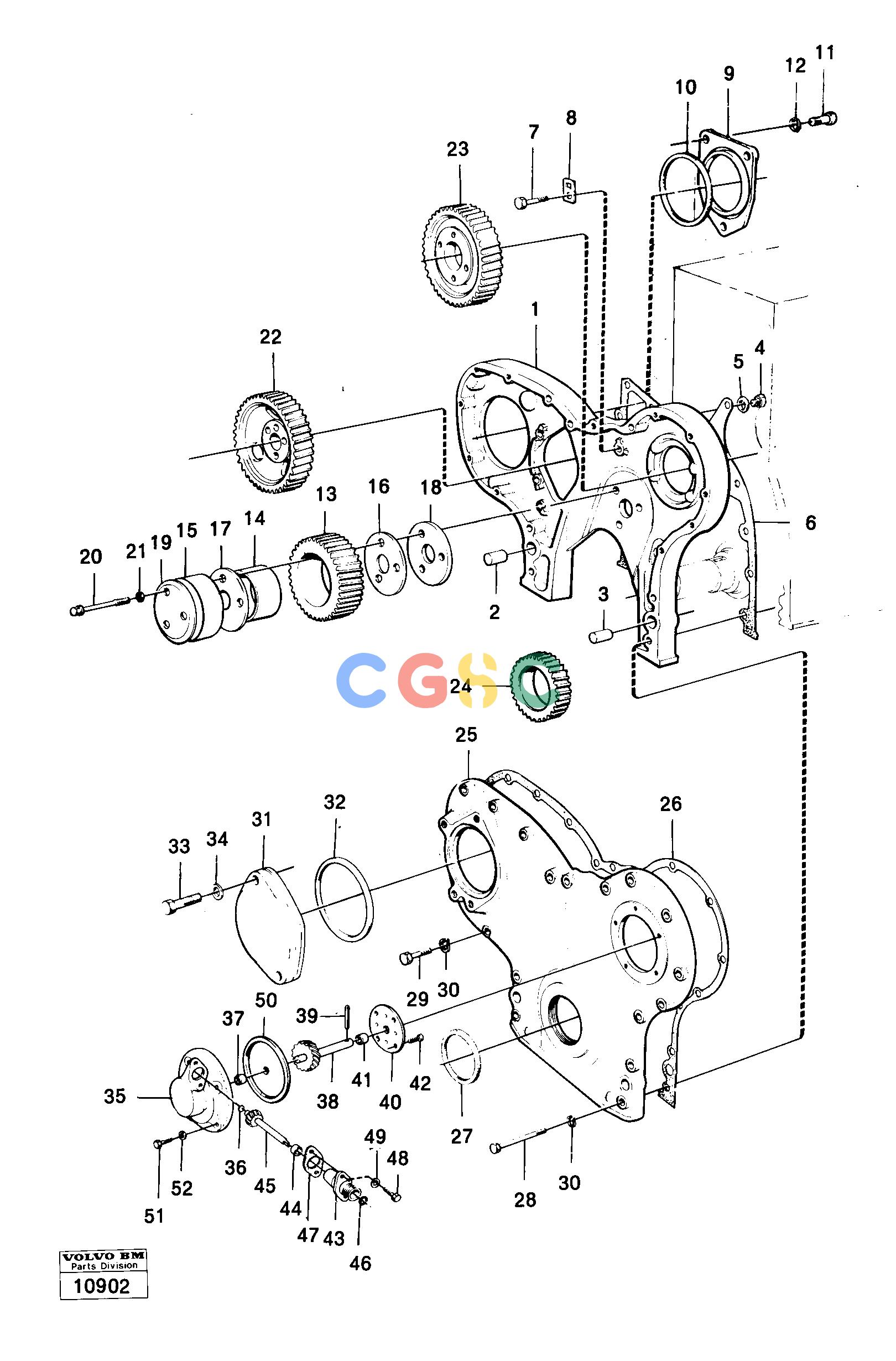

沃尔沃零件查询861 Timing gear casing,timinggears and engine-speed Indicator861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
695 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE925059
|
[0001] |
O-ring
|
|
| 46. |
VOE925054
|
[1] |
O-ring
|
|
| 47. |
VOE422130
|
[1] |
Gasket
|
|
| 48. |
VOE940100
|
[2] |
Hexagon screw
|
|
| 49. |
VOE13941906
|
[0002] |
Washer
|
|
| 50. |
VOE423123
|
[1] |
Sealing ring
|
|
| 51. |
VOE940094
|
[5] |
Hexagon screw
|
|
| 52. |
VOE13941906
|
[5] |
Washer
|
|
| 6. |
VOE421057
|
[1] |
Gasket
|
|
| 7. |
VOE955525
|
[5] |
Hexagon screw
|
|
| 8. |
VOE941571
|
[5] |
Lock washer
|
|
| 9. |
VOE420178
|
[1] |
Cover
|
|
| 1. |
VOE465257
|
[1] |
Timing gear casing
|
|
| 10. |
VOE13975610
|
[1] |
O-ring
|
|
| 11. |
VOE955576
|
[0003] |
Hexagon screw
|
|
| 12. |
VOE941911
|
[3] |
Spring washer
|
|
| 13. |
VOE4774662
|
[1] |
Idler gear
|
|
| 14. |
VOE786666
|
[1] |
Bushing
|
|
| 15. |
VOE786626
|
[1] |
Pin
|
|
| 16. |
VOE478951
|
[1] |
Thrust washer
|
|
| 17. |
VOE786628
|
[1] |
Washer
|
|
| 18. |
VOE467528
|
[1] |
Bearing shield
|
INRE/INNER
|
| 19. |
VOE4773507
|
[1] |
Bearing shield
|
YTTRE/OUTER
|
| 2. |
VOE13941510
|
[1] |
Pin
|
|
| 20. |
VOE955556
|
[3] |
Hexagon screw
|
|
| 21. |
VOE942180
|
[3] |
Disc spring
|
|
| 22. |
|
[1] |
Camshaft gear
|
|
| 23. |
|
[1] |
Gear
|
SEGRUPP23
|
| 24. |
|
[1] |
Oil-pump gear
|
|
| 25. |
VOE4773503
|
[1] |
Cover
|
|
| 26. |
VOE465056
|
[1] |
Gasket
|
|
| 27. |
VOE477118
|
[1] |
Sealing ring
|
|
| |
VOE477118
|
[1] |
Sealing ring
|
|
| 28. |
VOE955530
|
[7] |
Hexagon screw
|
|
| 3. |
VOE13941511
|
[1] |
Pin
|
|
| 29. |
VOE940186
|
[7] |
Hexagon screw
|
|
| |
VOE955526
|
[1] |
Hexagon screw
|
|
| 30. |
VOE13941907
|
[0015] |
Washer
|
|
| 31. |
VOE465057
|
[1] |
Cover
|
|
| 32. |
VOE925094
|
[1] |
O-ring
|
|
| 33. |
VOE955535
|
[1] |
Hexagon screw
|
|
| |
VOE955539
|
[1] |
Hexagon screw
|
|
| 34. |
VOE13942336
|
[2] |
Spring washer
|
|
| |
|
[1] |
Indicator
|
|
| 35. |
VOE420141
|
[1] |
Housing
|
|
| 4. |
VOE943681
|
[1] |
Plug
|
|
| 36. |
VOE7420143
|
[1] |
Washer
|
|
| 37. |
VOE7191776
|
[1] |
Bushing
|
|
| 38. |
VOE4773738
|
[1] |
Shaft
|
|
| 39. |
VOE951968
|
[1] |
Spring pin
|
|
| 40. |
VOE420147
|
[1] |
Bearing shield
|
|
| 41. |
VOE7191776
|
[1] |
Bushing
|
|
| 42. |
VOE950021
|
[0004] |
Cross recessed screw
|
|
| 43. |
VOE422128
|
[1] |
Bearing housing
|
|
| 44. |
VOE7191776
|
[2] |
Bushing
|
|
| 45. |
VOE422125
|
[1] |
Axle shaft
|
|
