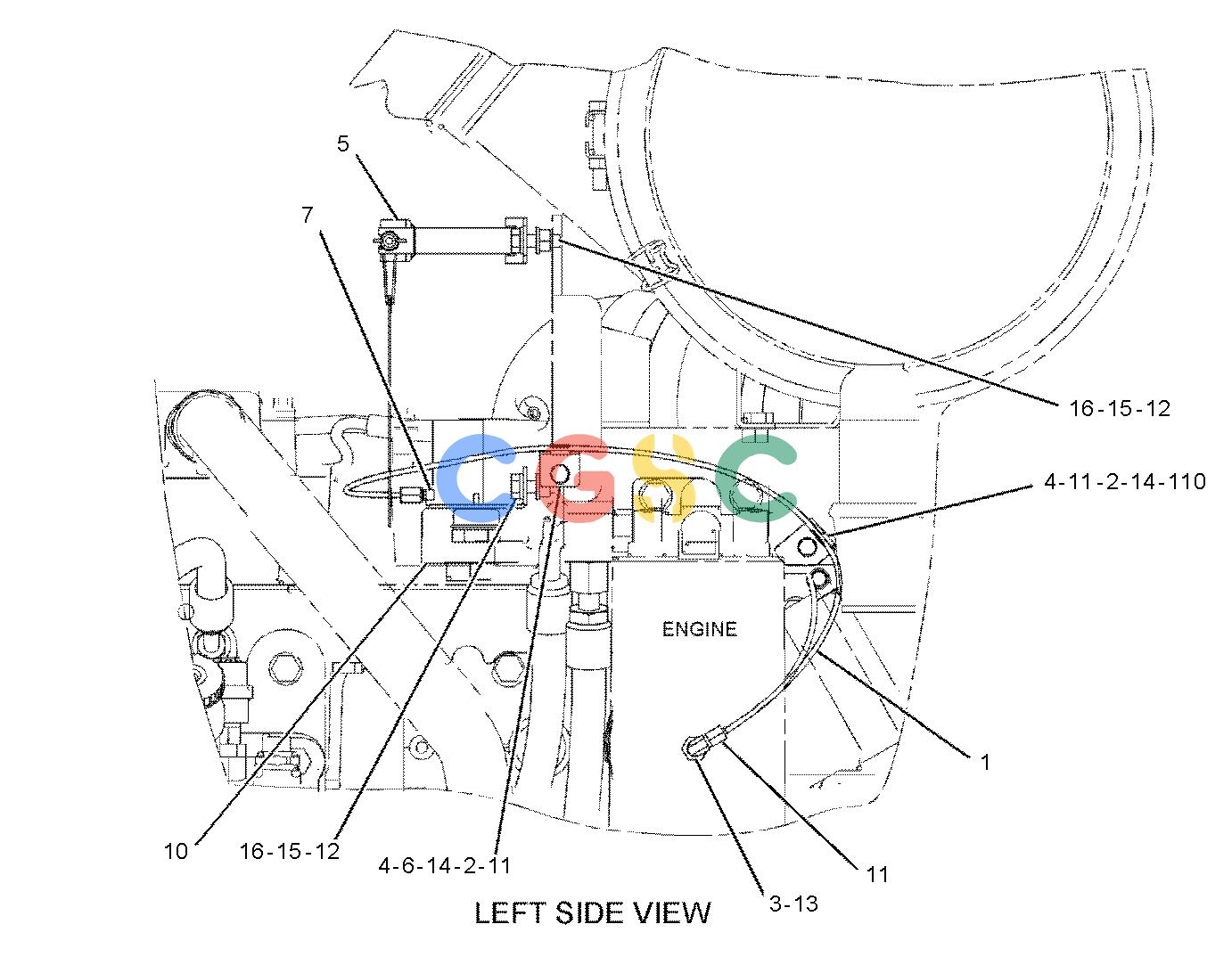

卡特零件查询（725） 246-3094: STARTING AID GP-ETHER
广数供应链运营团队, 14 02月, 2025，浏览：
286 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-4223 | [1] | TUBE | |
| 2. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 3. | 5P-5528 | [1] | BUSHING-REDUCER | |
| 4. | 5U-6502 | [2] | CLIP | |
| 5. | 7N-2059 | [1] | CLAMP AS(CYLINDER) | |
| 6. | 202-8563 | [1] | BRACKET-ANGLE | |
| 7. | 230-0917 | [1] | FITTING AS | |
| | 236-4545 | [1] | NUT-SLEEVE(5/16-24-THD) | |
| 8. | 239-1134Y | [1] | VALVE GP-ETHER STARTING(24-VOLT) | |
| 9. | 252-1607 | [1] | ATOMIZER AS | |
| | 236-4545 | [1] | NUT-SLEEVE(5/16-24-THD) | |
| 10. | 263-1252 | [1] | BRACKET-ANGLE | |
| 11. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 12. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 13. | 6V-5048 | [1] | SEAL-O-RING | |
| 14. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 15. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
