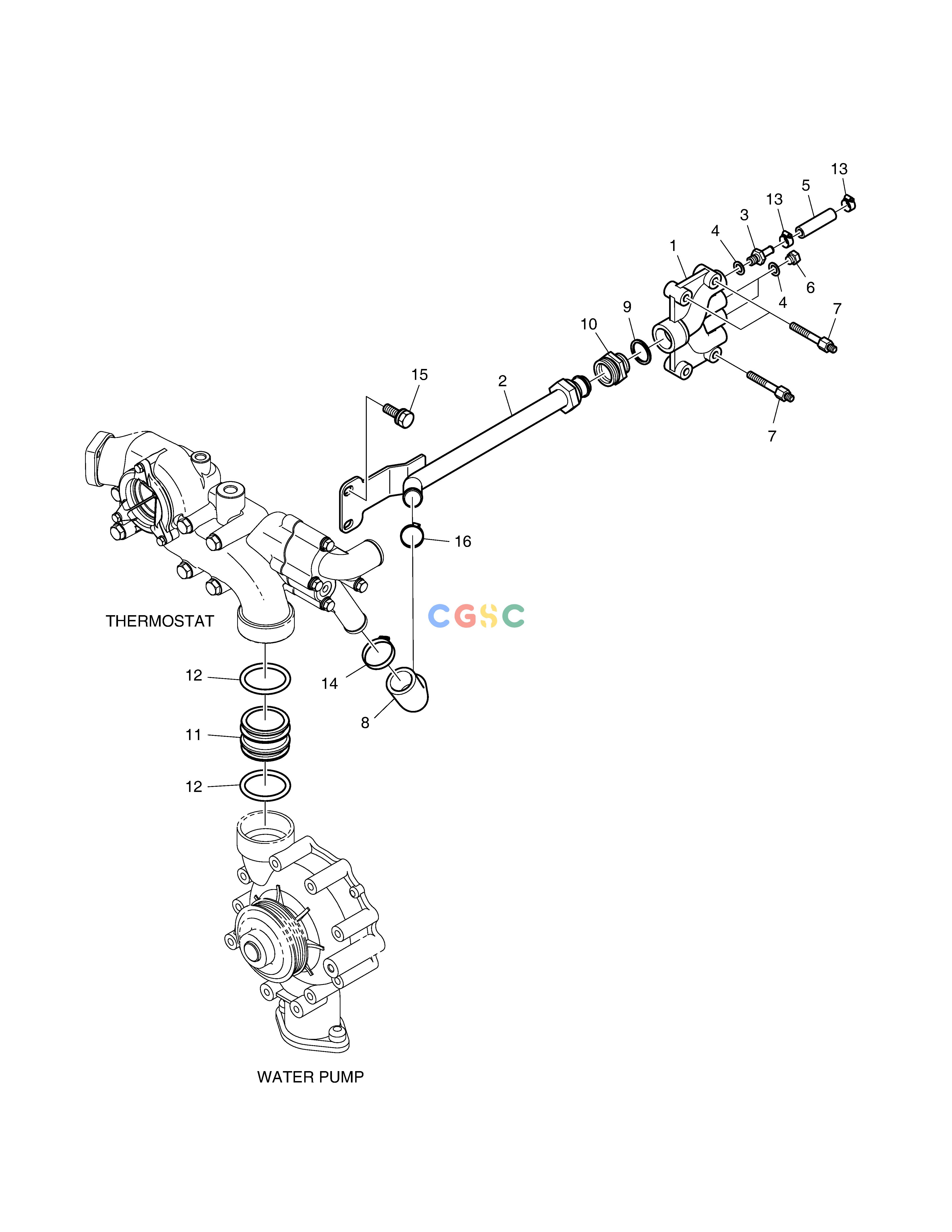

斗山零件查询COOLING WATER PIPE DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
205 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
600102-00001
|
[1] |
|
|
| 10. |
65.98130-0068
|
[1] |
NIPPLE
|
|
| 11. |
65.06301-0219A
|
[1] |
PIPE;COOLING WATER
|
|
| 12. |
65.96501-0089A
|
[2] |
O-RING
|
|
| 13. |
65.97440-0045
|
[2] |
CLAMP
|
|
| 14. |
120202-00232
|
[1] |
CLAMP,HOSE
|
120202-00370
|
| 14. |
120202-00370
|
[1] |
|
|
| 14. |
06.67020-0105
|
[1] |
CLAMP
|
|
| 15. |
06.01923-3214
|
[2] |
BOLT;HEX. M10X22
|
|
| 16. |
120202-00379
|
[1] |
|
|
| 16. |
06.67020-0104
|
[1] |
CLAMP;HOSE
|
|
| 16. |
120202-00232
|
[1] |
CLAMP,HOSE
|
120202-00379
|
| 2. |
420211-00039A
|
[1] |
|
|
| 3. |
65.98130-0143
|
[1] |
|
|
| 4. |
06.56180-0716
|
[3] |
. RING;SEAL
|
|
| 5. |
420101-00256
|
[1] |
|
|
| 6. |
06.08092-2402
|
[2] |
SCREW;PLUG M10X1.25
|
|
| 7. |
120122-00003
|
[3] |
|
120122-00003A
|
| 7. |
120122-00003A
|
[3] |
|
|
| 8. |
420108-00280
|
[1] |
|
|
| 9. |
06.56190-0728
|
[1] |
RING;SEAL
|
|
