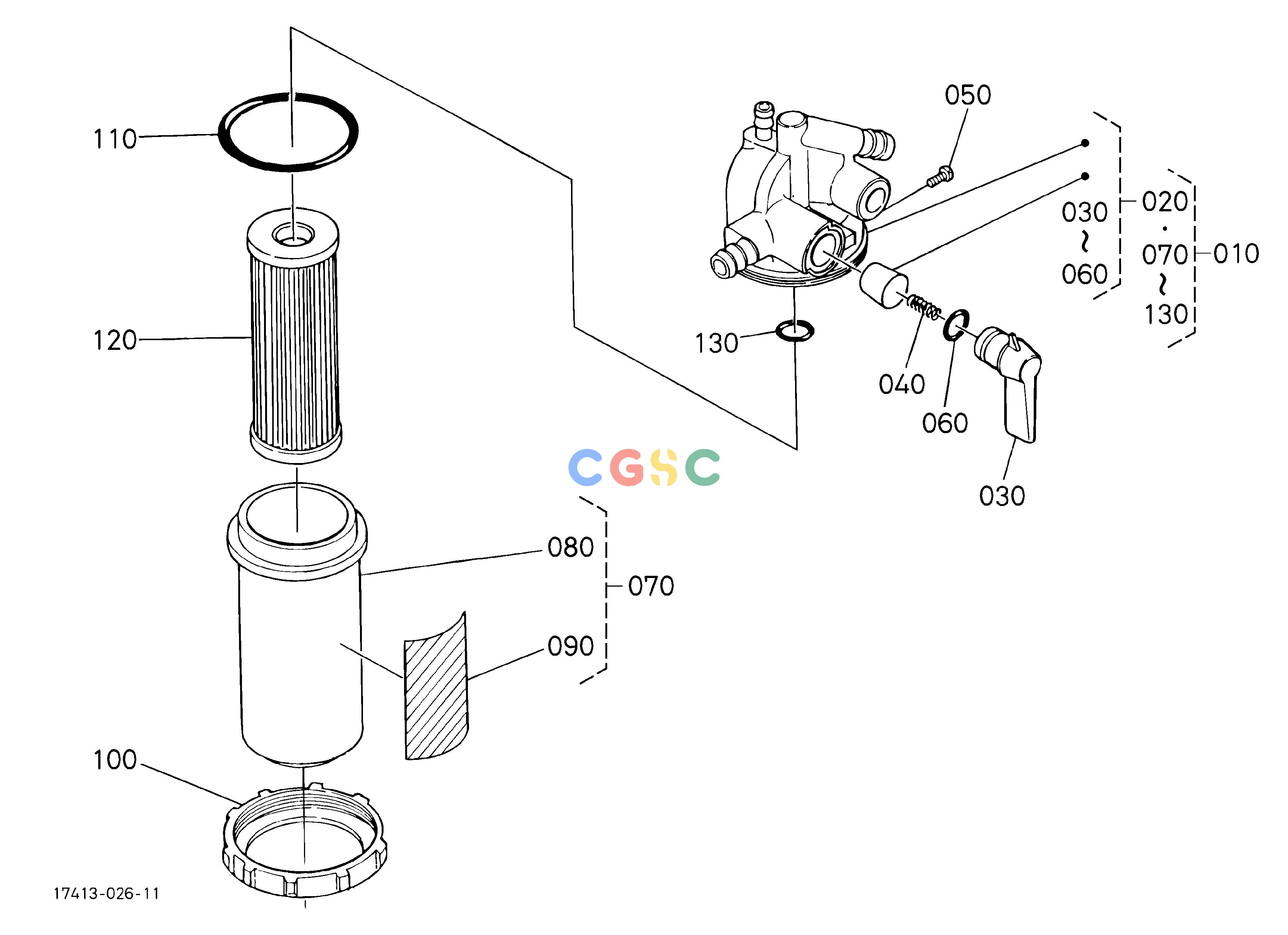

久保田零件查询A13000 FUEL FILTER [COMPONENT PARTS] FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
852 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1575143010
|
[1] |
FILTER,ASSY(FUEL)
|
0.9020(lbs); 0.410
|
| 020. |
1553143110
|
[1] |
COMP.BODY,COCK
|
0.5610(lbs); 0.255
|
| 030. |
1430143522
|
[1] |
LEVER,COCK
|
0.0528(lbs); 0.024
|
| 040. |
1430143820
|
[1] |
SPRING,VALVE
|
0.0022(lbs); 0.001
|
| 050. |
1430143830
|
[1] |
SCREW,LEVER
|
0.0022(lbs); 0.001
|
| 060. |
1430143840
|
[1] |
ORING,LEVER
|
0.0022(lbs); 0.001
|
| 070. |
1920443100
|
[1] |
ASSY CUP,FILTER
|
0.0440(lbs); 0.020
|
| 080. |
1T02143580
|
[1] |
CUP,FILTER
|
0.0880(lbs); 0.040
|
| 090. |
1668988430
|
[1] |
LABEL(FUEL)
|
0.0022(lbs); 0.001
|
| 100. |
1T02143590
|
[1] |
RING,RETAINING
|
0.1452(lbs); 0.066
|
| 110. |
0481600390
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 120. |
1T02143560
|
[1] |
ASSY ELEMENT
|
0.0440(lbs); 0.020
|
| 130. |
1430143570
|
[1] |
O RING,FILTER
|
0.0022(lbs); 0.001
|
