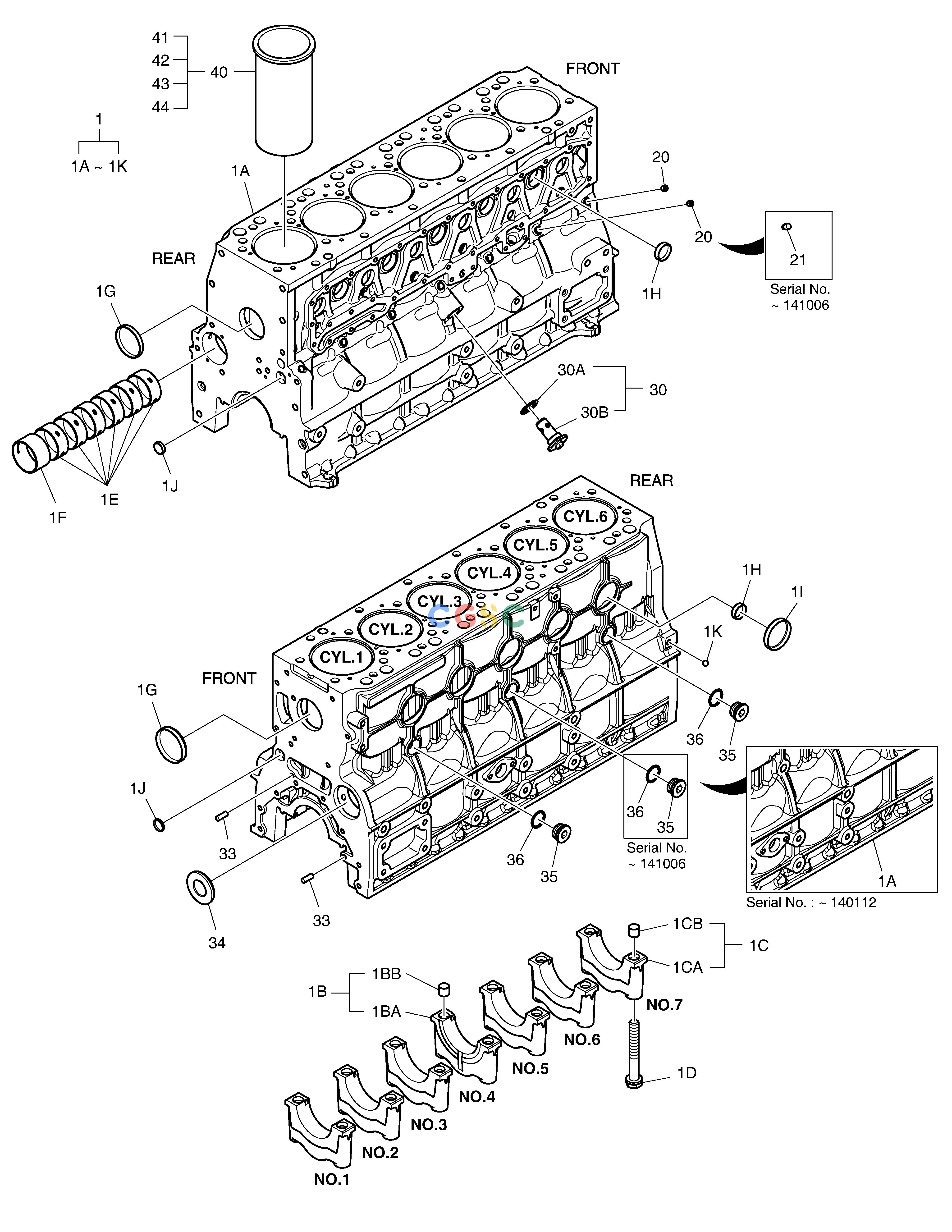

斗山零件查询CYLINDER BLOCK DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
831 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150102-00004C
|
[1] |
|
150102-00004D
|
| 1. |
150102-00004D
|
[1] |
BLOCK ASS`Y,CYLINDER
|
|
| 1. |
150102-00004A
|
[1] |
|
|
| 1A. |
150102-00005B
|
[1] |
|
|
| 1A. |
150102-00005C
|
[1] |
. BLOCK,CYLINDER
|
|
| 1A. |
150102-00005A
|
[1] |
|
|
| 1B. |
140202-00016
|
[1] |
. THRUST BEARING CAP ASS`Y
|
|
| 1BA. |
140202-00017
|
[1] |
.. BEARING CAP;THRUST
|
|
| 1BB. |
65.91710-0001
|
[2] |
.. RING;STOPPER
|
|
| 1C. |
140202-00018
|
[6] |
. BEARING CAP ASS`Y
|
|
| 1CA. |
140202-00019
|
[1] |
.. BEARING CAP
|
|
| 1CB. |
65.91710-0001
|
[2] |
.. RING;STOPPER
|
|
| 1D. |
120112-01340
|
[14] |
. BOLT
|
|
| 1D. |
65.90020-0066A
|
[14] |
. BOLT;BRG CAP
|
120112-01340
|
| 1E. |
65.04410-0021A
|
[6] |
. BUSH;CAMSHAFT
|
|
| 1F. |
65.04410-0022
|
[1] |
. BUSH;CAMSHAFT
|
|
| 1G. |
65.90302-0009
|
[2] |
. PLUG;CORE
|
|
| 1H. |
65.90302-0042
|
[8] |
. PLUG;CORE
|
|
| 1I. |
65.90302-0034
|
[5] |
. PLUG;CORE
|
|
| 1J. |
65.91606-0041
|
[2] |
. PLUG;CORE
|
|
| 1K. |
06.31641-0618
|
[1] |
. BALL;STEEL
|
|
| 20. |
65.90320-0022
|
[7] |
PLUG SCREW
|
|
| 20. |
65.90320-0022
|
[1] |
PLUG SCREW
|
|
| 21. |
65.91001-0013A
|
[6] |
PIN;CORE
|
|
| 30. |
410127-00088
|
[1] |
RELIEF VALVE ASS`Y
|
|
| 30A. |
06.56021-0102
|
[1] |
. O-RING
|
|
| 30B. |
65.05401-5002G
|
[1] |
. RELIEF VALVE
|
|
| 33. |
06.22022-1063
|
[2] |
PIN
|
|
| 34. |
65.91605-0002
|
[1] |
COVER;CORE HOLE
|
|
| 35. |
65.90310-0134
|
[3] |
SCREW;PLUG
|
|
| 35. |
65.90310-0134
|
[2] |
SCREW;PLUG
|
|
| 35. |
06.08041-2211
|
[2] |
SCREW,PLUG
|
|
| 35. |
65.90310-0134
|
[2] |
SCREW;PLUG
|
|
| 36. |
06.56190-0732
|
[2] |
SEAL;RING
|
|
| 36. |
06.56190-0732
|
[3] |
SEAL;RING
|
|
| 36. |
06.56190-0732
|
[2] |
SEAL;RING
|
|
| 40. |
65.01201-0075A
|
[6] |
CYLINDER LINER
|
|
| 41. |
65.01201-0076
|
[6] |
LINER;CYLINDER-1A
|
|
| 42. |
65.01201-0077
|
[6] |
LINER;CYLINDER-1B
|
|
| 43. |
65.01201-0078
|
[6] |
LINER;CYLINDER-2A
|
|
| 44. |
65.01201-0079
|
[6] |
LINER;CYLINDER-2B
|
|
