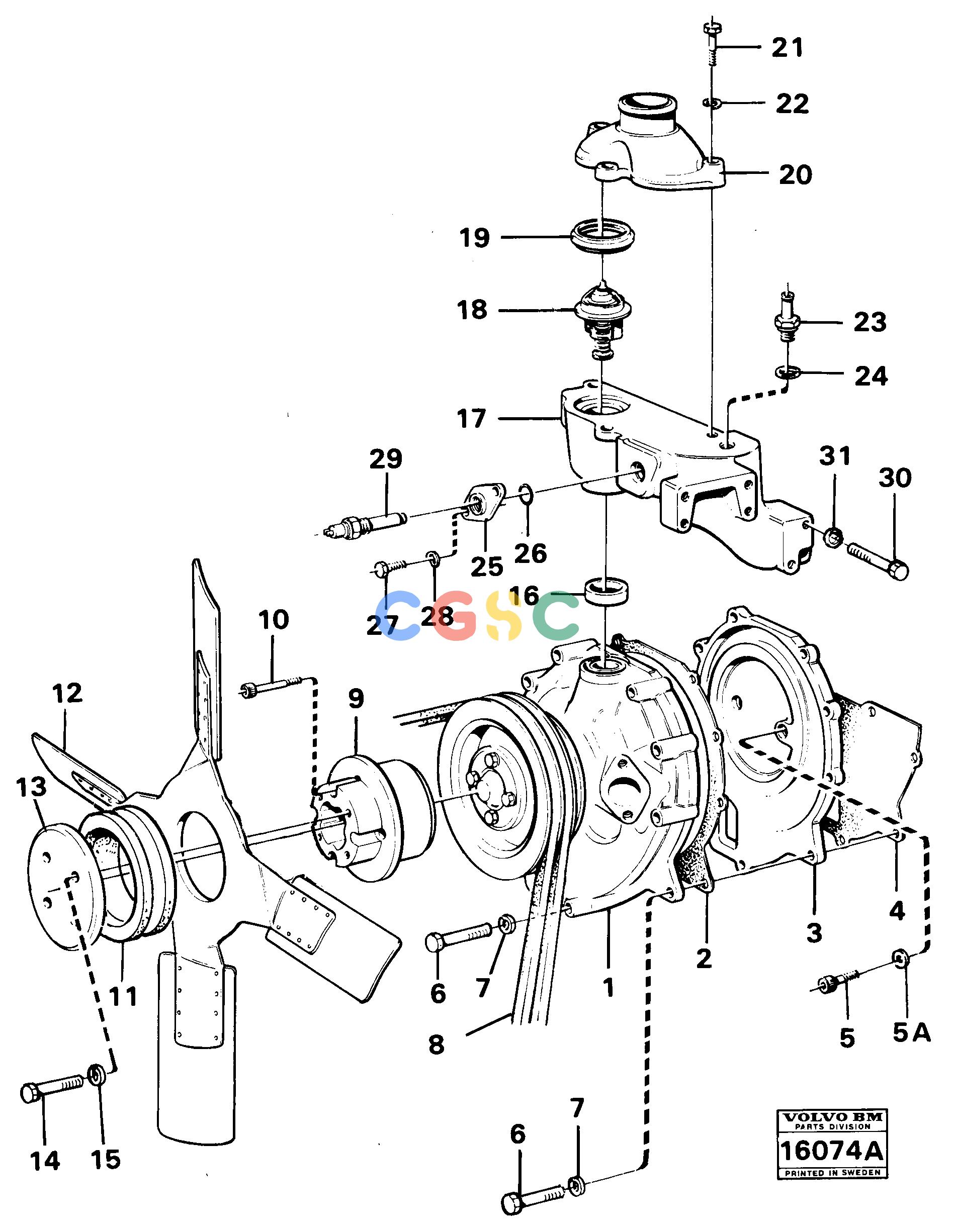

沃尔沃零件查询861 Water pump with fitting parts861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
164 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE956569
|
[0002] |
Hex. socket screw
|
|
| 5A. |
VOE947620
|
[0002] |
Gasket
|
|
| 6. |
VOE940161
|
[0006] |
Hexagon screw
|
L=45MM
|
| |
VOE940186
|
[0001] |
Hexagon screw
|
L=38MM
|
| |
VOE955526
|
[0001] |
Hexagon screw
|
L=51MM
|
| 1. |
|
[0001] |
Water pump
|
|
| |
VOE13940136
|
[0001] |
Screw
|
L=64MM
|
| 7. |
VOE13941907
|
[0009] |
Washer
|
|
| 8. |
VOE967204
|
[0001] |
V-belt set
|
SER NO -57369
|
| |
|
|
None
|
|
| 9. |
VOE4773663
|
[0001] |
Hub
|
SER NO -58684,
|
| |
VOE4773663
|
[0001] |
Hub
|
|
| |
VOE422493
|
[0001] |
Hub
|
|
| |
|
|
None
|
SER NO 58685-
|
| 10. |
VOE956576
|
[0004] |
Hex. socket screw
|
SER NO -58684,
|
| |
VOE956576
|
[0004] |
Hex. socket screw
|
|
| 11. |
VOE1661361
|
[0001] |
Rubber spacer
|
|
| |
|
|
None
|
SER NO -58684,
|
| |
VOE1661361
|
[0001] |
Rubber spacer
|
|
| 12. |
VOE476716
|
[0001] |
Fan
|
|
| |
|
|
None
|
SER NO -58684
|
| |
VOE4774885
|
[0001] |
Fan
|
SER NO 58685-
|
| 2. |
VOE4773570
|
[0001] |
Gasket
|
|
| 13. |
VOE4773693
|
[0001] |
Washer
|
SER NO -58684,
|
| |
VOE4773693
|
[0001] |
Washer
|
|
| 14. |
VOE955297
|
[0004] |
Hexagon screw
|
SER NO -58684,
|
| |
VOE955297
|
[0004] |
Hexagon screw
|
|
| |
VOE955525
|
[0004] |
Hexagon screw
|
SER NO 58685-
|
| 15. |
VOE13955894
|
[0004] |
Washer
|
SER NO -58684
|
| |
VOE13955894
|
[0008] |
Washer
|
SER NO 58685-
|
| 16. |
VOE420162
|
[0001] |
Sealing ring
|
|
| 17. |
VOE465052
|
[0001] |
Thermostat housing
|
|
| 18. |
VOE1544097
|
[0002] |
Thermostat
|
|
| |
VOE1544098
|
[0002] |
Thermostat
|
|
| 19. |
VOE416033
|
[0002] |
Gasket
|
|
| 3. |
VOE4773467
|
[0001] |
Plate
|
|
| 20. |
VOE420155
|
[0001] |
Tube
|
|
| 21. |
VOE13940162
|
[0003] |
Screw
|
|
| 22. |
VOE13942336
|
[0003] |
Spring washer
|
|
| 23. |
VOE4773655
|
[0001] |
Nipple
|
|
| 24. |
VOE957179
|
[0001] |
Gasket
|
|
| 25. |
VOE4770109
|
[0001] |
Flange
|
|
| 26. |
VOE949658
|
[0001] |
O-ring
|
|
| 27. |
VOE955524
|
[0002] |
Hexagon screw
|
|
| 28. |
VOE13941907
|
[0002] |
Washer
|
|
| 29. |
VOE4780329
|
[0001] |
Temperature sensor
|
|
| 4. |
VOE4773571
|
[0001] |
Gasket
|
|
| 30. |
VOE955539
|
[0002] |
Hexagon screw
|
|
| 31. |
VOE13942336
|
[0002] |
Spring washer
|
|
| |
VOE6630830
|
[0001] |
Repair kit
|
|
