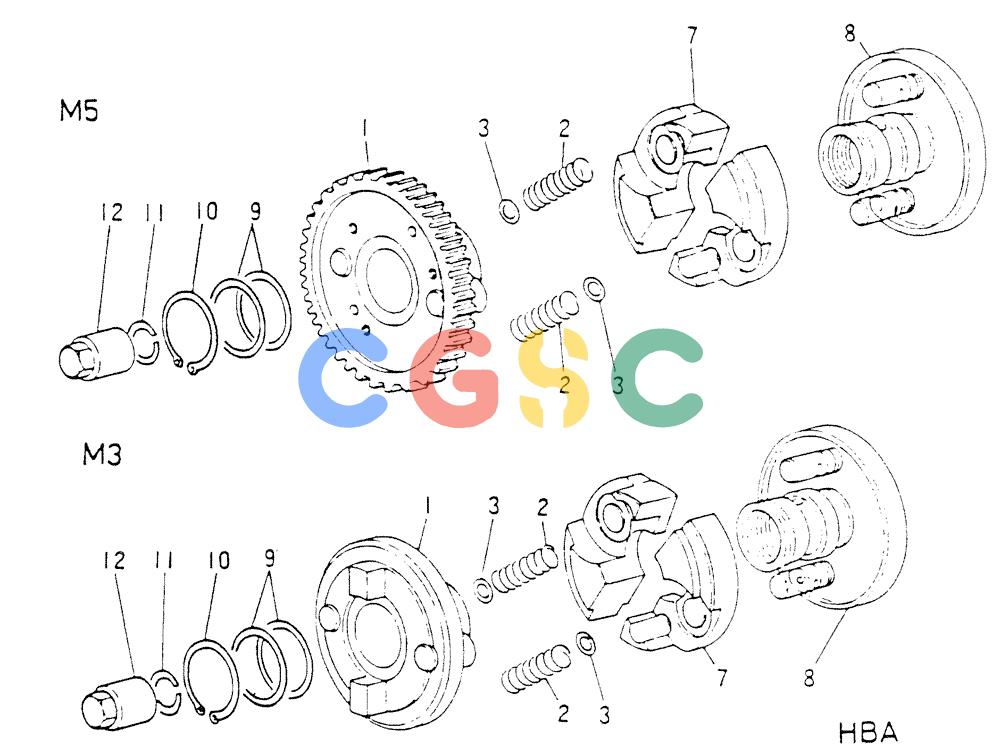

神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (03-014) - AUTOMATIC TIMER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
215 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-12. | VAME032899 | [1] | AUTOMATIC T AUTOMATIC TIMER ASSY SBZ TYPE,FOR M3 ONLY | AUTOMATIC T AUTOMATIC TIMER ASSY SBZ TYPE,FOR M3 ONLY |
| . . | VAME032828 | [1] | AUTOMATIC TIMER ASSY SBZ TYPE,FOR M5 ONLY | |
| 1. | VAME705076 | [1] | GEAR,FOR M5 ONLY | |
| 1. | VAME717614 | [1] | FLANGE,FOR M3 ONLY | |
| 2. | VAME716560 | [2] | SPRING,TIMER,FOR M3 ONLY | |
| 2. | VAME716561 | [1] | FOR M3 ONLY | |
| 2. | VAME716562 | [1] | FOR M3 ONLY | |
| 2. | VAME716671 | [2] | SPRING,TIMER,FOR M5 ONLY | |
| 3. | VAME705363 | [1] | SHIM T=0.1 | |
| 3. | VAME705364 | [1] | SHIM T=0.2 | |
| 3. | VAME705365 | [1] | SHIM T=0.3 | |
| 3. | VAME705366 | [1] | SHIM T=0.5 | |
| 3. | VAME705367 | [1] | SHIM T=0.6 | |
| 3. | VAME705368 | [1] | SHIM T=1.0 | |
| 7. | VAME716563 | [2] | FLYWEIGHT,FOR M3 ONLY | |
| 7. | VAME717694 | [2] | FLYWEIGHT,FOR M5 ONLY | |
| 8. | VAME705096 | [1] | HOLDER,FLYWEIGHT,FOR M5 ONLY | |
| 8. | VAME716564 | [1] | HOLDER,FLYWEIGHT,FOR M3 ONLY | |
| 9. | VAME705369 | [1] | SHIM T=0.6 | |
| 9. | VAME705370 | [1] | SHIM T=0.7 | |
| 9. | VAME705371 | [1] | SHIM T=0.8 | |
| 9. | VAME705372 | [1] | SHIM T=0.9 | |
| 9. | VAME705373 | [1] | SHIM T=1.0 | |
| 9. | VAME705374 | [1] | SHIM T =1.1 | |
| 10. | VAME705375 | [1] | RING,SNAP | |
| 11. | VAME705376 | [1] | WASHER,SPG | |
| 12. | VAME705078 | [1] | NUT | |
