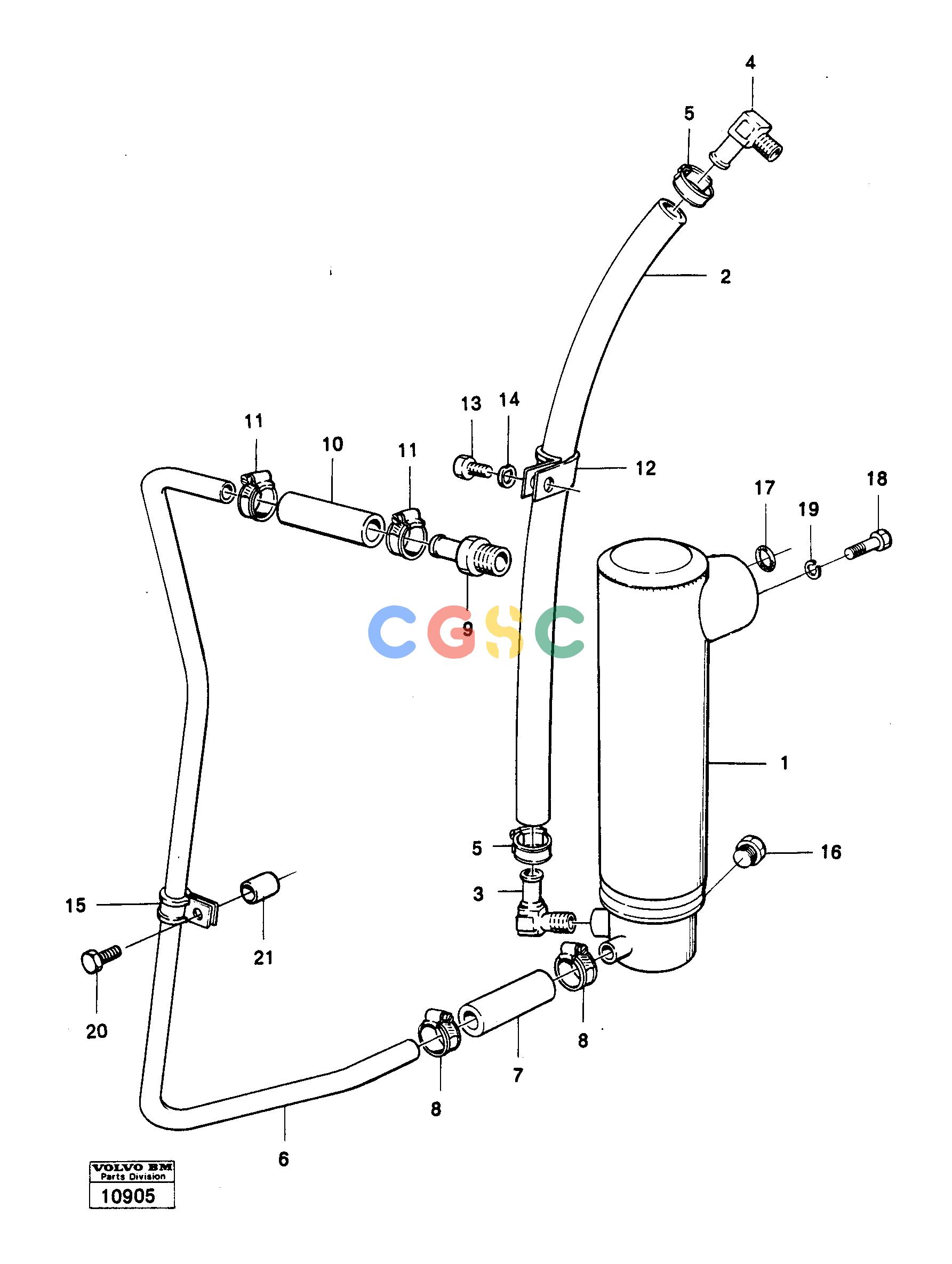

沃尔沃零件查询861 Oil cooler861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
832 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13943474
|
[2] |
Hose clamp
|
MO - 62362
|
| |
VOE13943474
|
[0002] |
Hose clamp
|
MO 62363 -
|
| 6. |
VOE4774495
|
[0001] |
Tube
|
|
| 7. |
VOE943368
|
[REQ] |
Hose
|
L=65
|
| 8. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 9. |
VOE13961657
|
[1] |
Nipple
|
MO - 33068
|
| |
VOE4774695
|
[1] |
Elbow nipple
|
MO 33069 -
|
| 1. |
VOE4773089
|
[1] |
Oil cooler
|
MO - 62362
|
| 10. |
VOE943368
|
[REQ] |
Hose
|
L=65
|
| 11. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 12. |
VOE7018366
|
[1] |
Clamp
|
MO - 62362
|
| |
VOE4775021
|
[0001] |
Oil cooler
|
MO 62363 -
|
| 13. |
VOE13940133
|
[1] |
Screw
|
MO - 62362
|
| 14. |
VOE13942336
|
[1] |
Spring washer
|
MO - 62362
|
| 15. |
VOE13949747
|
[1] |
Clamp
|
|
| 16. |
VOE479955
|
[1] |
Plug
|
|
| 17. |
VOE926036
|
[2] |
O-ring
|
|
| 18. |
VOE955540
|
[2] |
Hexagon screw
|
|
| 19. |
VOE13942336
|
[2] |
Spring washer
|
|
| 2. |
VOE943368
|
[REQ] |
Hose
|
L=540 MO - 62362
|
| 20. |
VOE955528
|
[1] |
Hexagon screw
|
|
| 21. |
VOE807250
|
[1] |
Spacer sleeve
|
|
| |
VOE943369
|
[0001] |
Hose
|
L=270 MO 62363 -
|
| 3. |
VOE961606
|
[1] |
Elbow nipple
|
MO - 62362
|
| |
VOE961610
|
[0001] |
Elbow nipple
|
MO 62363 -
|
| 4. |
VOE13961607
|
[0001] |
Nipple
|
MO - 62362
|
| |
VOE961610
|
[0001] |
Elbow nipple
|
MO 62363 -
|
