纽荷兰零件查询(F3DFA613B E004) - ENGINE 504384986 - 84550912 W/O BRAKE (10.254.01) - AIR LINES (5801380339 - 5801379212) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
160 次

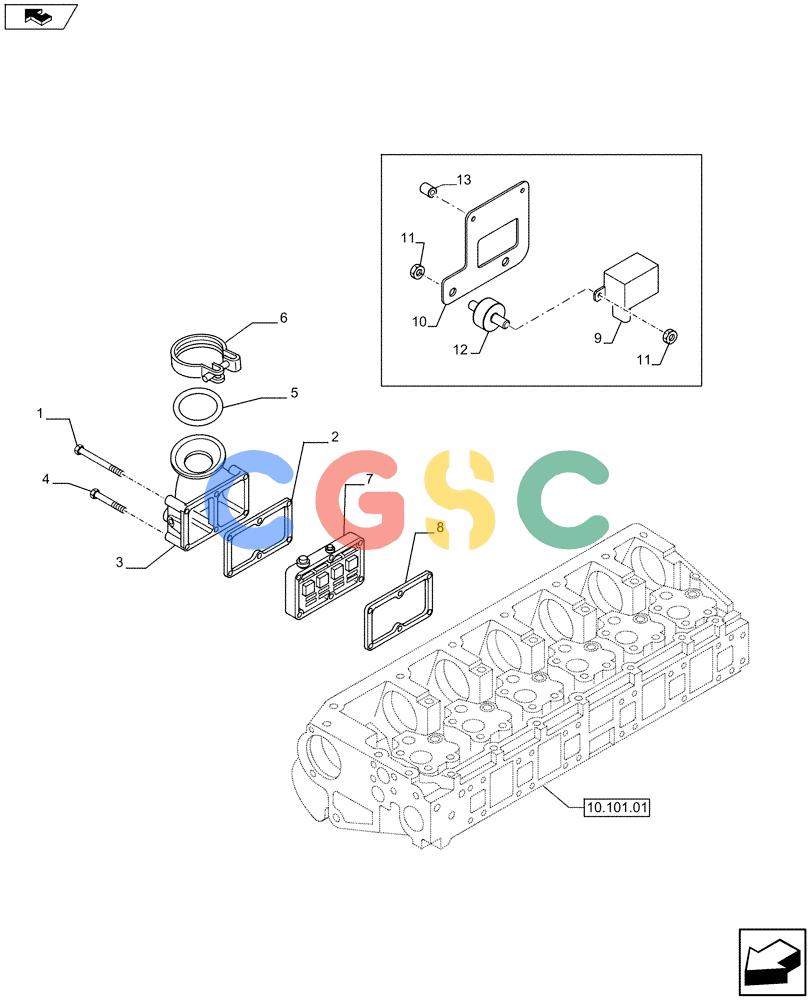

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852286 | [2] | BOLT,Flng, M10 x 1.5 x 130mm | TOR Superseded by part number: 16599125 |
| 1. | 16599325 | [1] | SCREW,M10 x 150mm | ASTM10 X 150 |
| 2. | 504375264 | [1] | GASKET,0.3mm Thk | TOR |
| 3. | 504074687 | [1] | MANIFOLD | TOR |
| 4. | 16593125 | [5] | BOLT,M10 x 100mm | TORM10 x 100 |
| 5. | 17291281 | [1] | GASKET | ZEDM94.84 x 3.53 Superseded by part number: 70934883 |
| 6. | 99435103 | [1] | COLLAR CLAMP | TOR |
| 7. | 504154987 | [1] | HEATER | TOR |
| 9. | 86619908 | [1] | RELAY,12V, 150A | ZED |
| 10. | 504385714 | [1] | | BRACKET, SUPPORTING |
| 11. | 15896221 | [4] | NUT,Hex, M6, 5.20mm High, Cl 10 | ZEDM6X16 Superseded by part number: 86500688 |
| 12. | 504090550 | [2] | | LUG |
| 13. | 61320836 | [2] | | SPACER |
