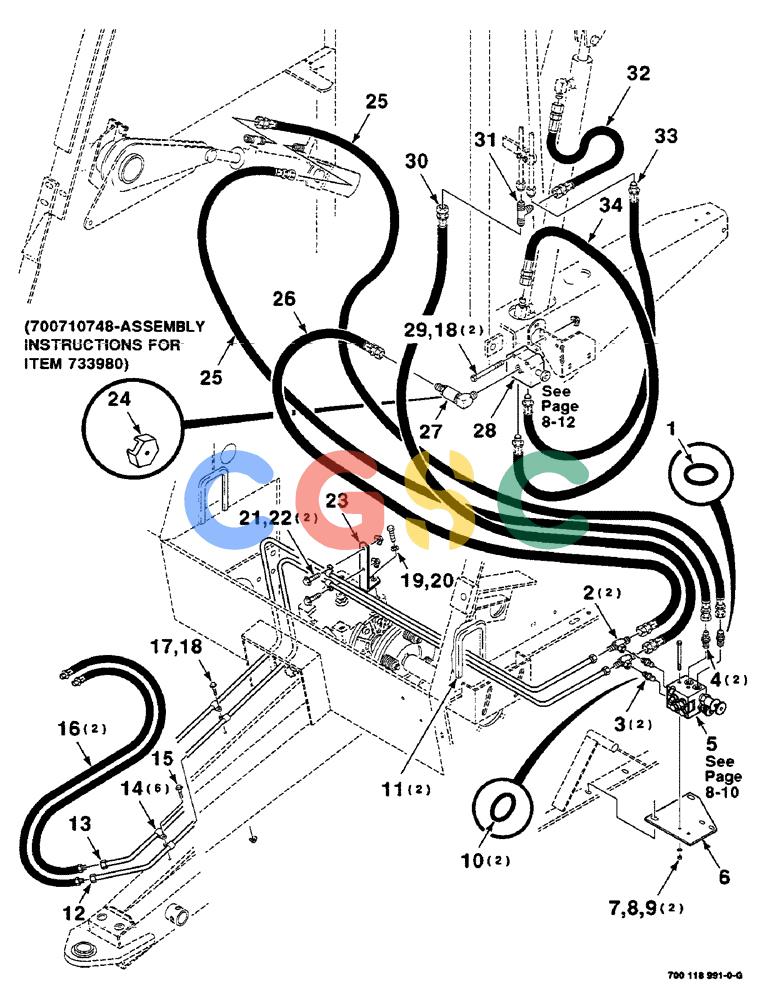

| 1. |
738468
|
[1] |
O-RING
|
IH
|
| 2. |
218-840
|
[2] |
TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br
|
CAS
- swivel, branch Superseded by part number: 86513015
|
| 3. |
218-5059
|
[2] |
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
|
CAS
FLARED CONNECTOR (Incl. item 10) Superseded by part number: 128818
|
| 4. |
218-5057
|
[2] |
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
|
CAS
FLARED CONNECTOR (Incl. item 1) Superseded by part number: 76350
|
| 5. |
700708923
|
[1] |
VALVE
|
CAS
ASSEMBLY - bale tension
|
| 6. |
700118983
|
[1] |
SUPPORT
|
HFI
- valve
|
| 7. |
873018
|
[2] |
BOLT,5/16" - 18 x 3 3/4", Gr 5
|
HFI
5/16-18 x 3-3/4 C
|
| 8. |
492-11031
|
[2] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 9. |
425-105
|
[2] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 10. |
237-6008
|
[2] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
CAS
8-1, 90 Duro, .644" ID x .087" Thk Superseded by part number: 128825
|
| 11. |
700117735
|
[2] |
ADHESIVE STRIP
|
CAS
TRIM
|
| 12. |
700708920
|
[1] |
TUBE
|
CAS
LINE - hydraulic
|
| 13. |
700708919
|
[1] |
TUBE
|
CAS
LINE - hydraulic
|
| 14. |
515-25127
|
[6] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Line 1/2", Insul, 1/2" Bolt Superseded by part number: 86632595
|
| 15. |
7702012
|
[1] |
SELF-TAP SCREW,3/8" - 16 x 1"
|
CAS
3/8-16 x 1 HWHTCTS
|
| 16. |
7072135
|
[2] |
HYDRAULIC HOSE,0.50" ID x 58.00", SAE 100R2
|
IH
HOSE - hydraulic
|
| 17. |
121-108
|
[1] |
BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr
|
CAS
5/16-18 x 1 HWHMS
|
| 18. |
231-5145
|
[3] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 19. |
413-812
|
[1] |
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5
|
CAS
1/2-13 x 3/4 C Superseded by part number: 9627879
|
| 20. |
80679
|
[1] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 21. |
409-7612
|
[2] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 x 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 22. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 23. |
700118994
|
[1] |
STRAP
|
HFI
|
| 24. |
733980
|
[1] |
ORIFICE
|
CAS
- .0935 inch (Extra)
|
| 25. |
1270453C1
|
[2] |
HYDRAULIC HOSE
|
IH
HOSE - hydraulic
|
| 26. |
700705745
|
[1] |
FLEXIBLE HOSE
|
CAS
HOSE - hydraulic
|
| 27. |
700119132
|
[1] |
ORIFICE
|
CAS
ASSEMBLY (Includes .125 inch orifice)
|
| 28. |
700704264
|
[1] |
VALVE
|
CAS
ASSEMBLY - hydraulic, shutoff
|
| 29. |
413-528
|
[2] |
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 9707515, 72187200
|
| 30. |
700708928
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 970.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 970.00 mm, SAE 100R2
|
| 31. |
218-594
|
[1] |
TEE,3/4"-16, 37 Degree
|
CAS
- flared Superseded by part number: 72187027, 128996
|
| 32. |
700708926
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 600.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 600.00 mm, SAE 100R2
|
| 33. |
700708929
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 1040.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 1040.00 mm, SAE 100R2
|
| 34. |
700708927
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 850.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 850.00 mm, SAE 100R2
|
