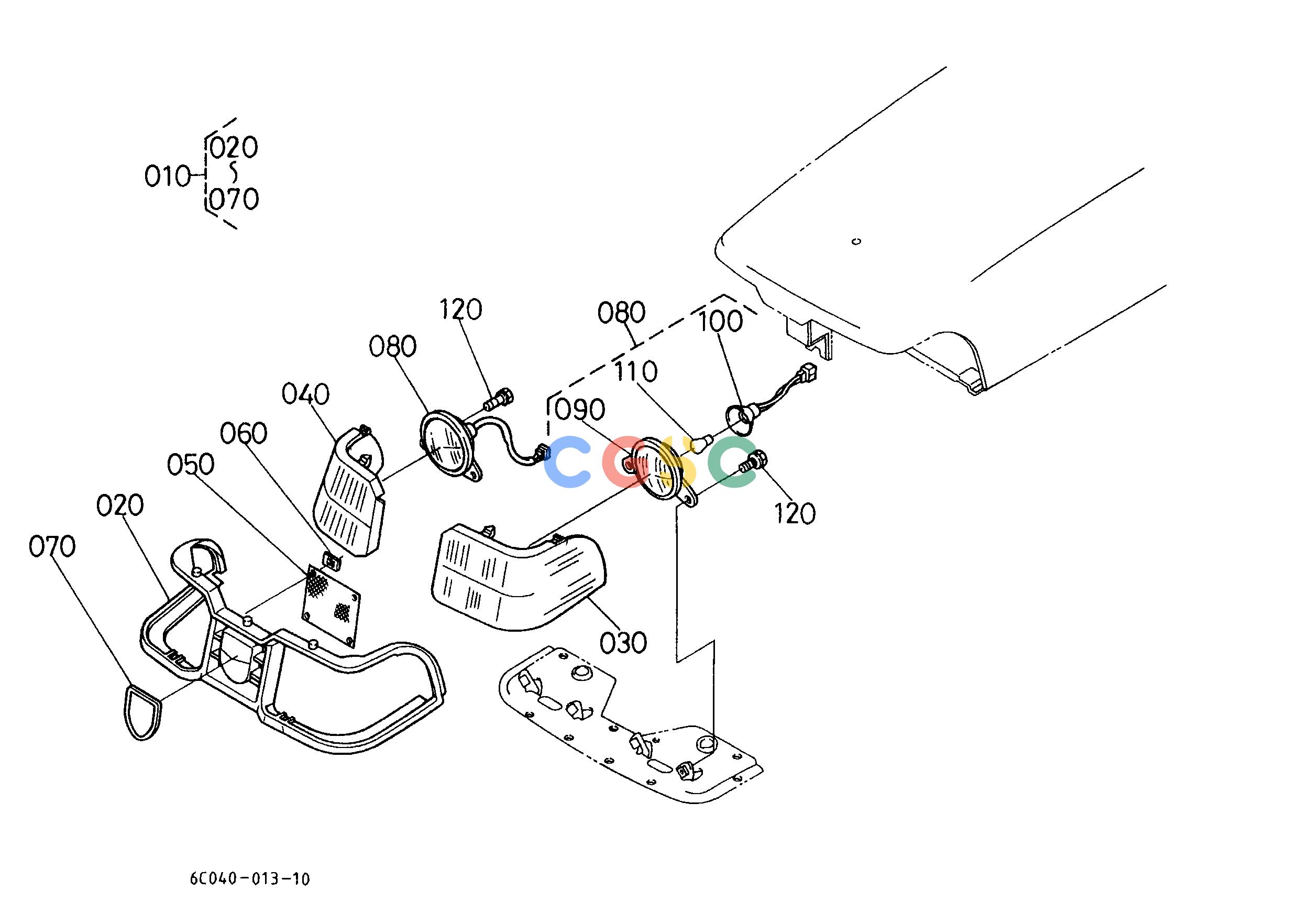

久保田零件查询B30100 HEAD LIGHT ELECTRICAL SYSTEMEPC Kubota online

广数供应链运营团队, 14 02月, 2025，浏览： 198 次

Pos.	Part No	Qty	Parts name	Comments
010.	6C04054132	[1]	ASSY GRILLE,LIGHT	; <=50286 0.2200(lbs); 0.100
010.	6C04054134	[1]	ASSY GRILLE,LIGHT	; >=50287 1.0120(lbs); 0.460
020.	6C04054171	[1]	GRILLE,HEAD LIGHT	; <=50441 0.0000(lbs); 0.000
020.	6C04054173	[1]	GRILLE,HEAD LIGHT	; >=50442 0.3300(lbs); 0.150
030.	6C04054181	[1]	COVER,HEAD LIGHT LH	; <=50286 0.0000(lbs); 0.000
030.	6C04054183	[1]	COVER,HEAD LIGHT LH	; >=50287 0.2882(lbs); 0.131
040.	6C04054191	[1]	COVER,HEAD LIGHT RH	; <=50286 0.0000(lbs); 0.000
040.	6C04054193	[1]	COVER,HEAD LIGHT RH	; >=50287 0.0660(lbs); 0.030
050.	6C04054240	[1]	NET	0.0374(lbs); 0.017
060.	5561144190	[2]	NUT	0.0088(lbs); 0.004
070.	6C04054290	[1]	MARK,MASCOT	0.0176(lbs); 0.008
080.	6C04055610	[2]	ASSY LIGHT,HEAD	0.3300(lbs); 0.150
090.	6C04055620	[2]	COMP.LENS,HEAD LIGHT	0.2464(lbs); 0.112
100.	6C04055630	[2]	COMP.SOCKET	0.0418(lbs); 0.019
110.	6659155630	[2]	BULB,LAMP	0.0176(lbs); 0.008
120.	0102950616	[4]	BOLT,W SEMS(WAVE SPRING)	0.0132(lbs); 0.006
