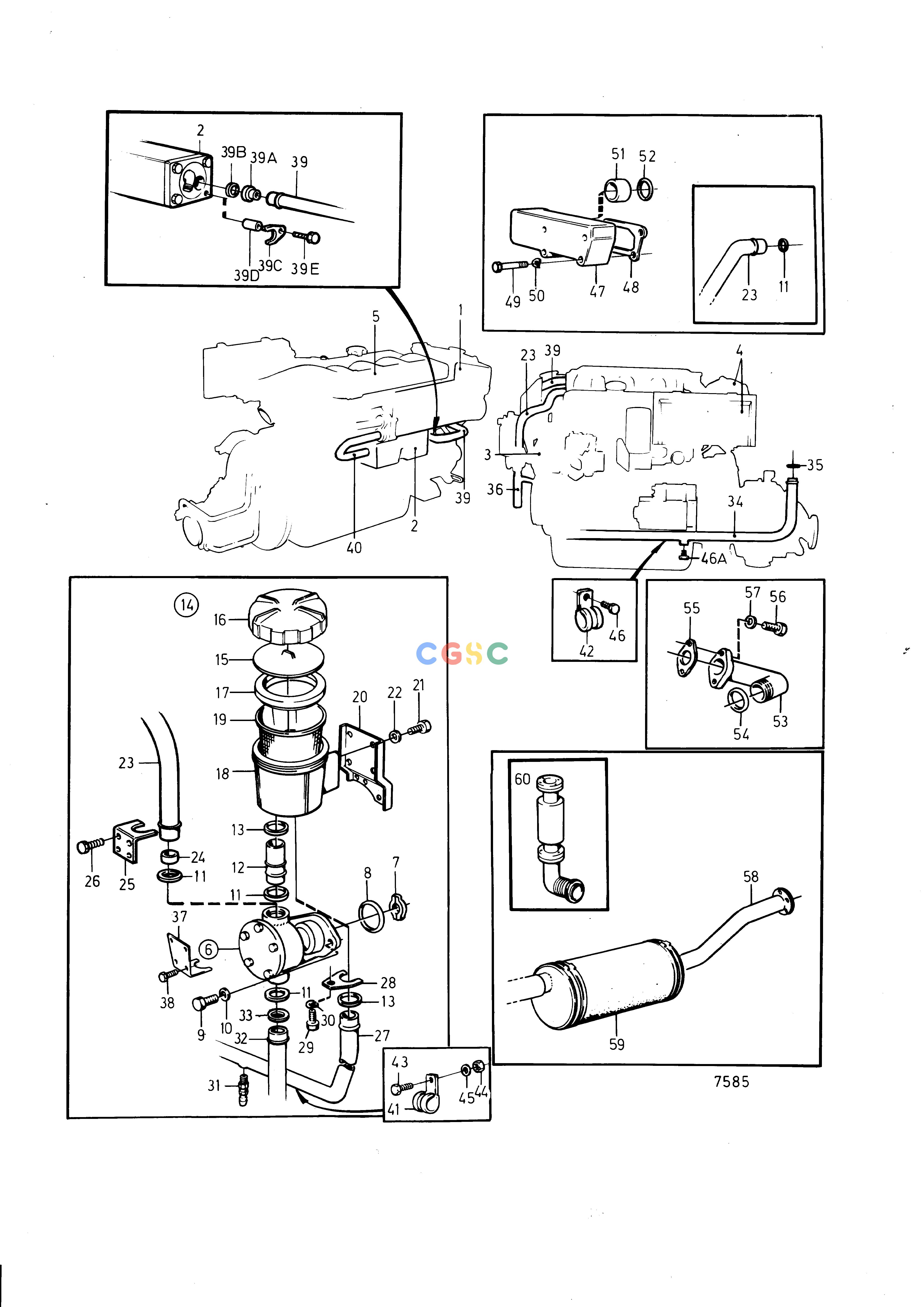

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Cooling SystemCooling System Induction and Exhaust Manifold: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
431 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7744050_018
|
|
after- cooler and thermostat with installation comps
|
|
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
7744050_019
|
|
circulation pump with installation comps
|
|
| 3. |
|
|
|
|
| 4. |
7744050_024
|
|
turbo and air filter with installation comps
|
|
| 4. |
|
|
|
|
| 5. |
7744050_028
|
|
induction- and exhaust manifold with installation comps
|
|
| 5. |
|
|
|
|
| 6. |
842843
|
[1] |
Sea water pump
|
|
| 7. |
829433
|
[1] |
Dog
|
|
| 8. |
947314
|
[1] |
O-ring
|
|
| 9. |
955295
|
[2] |
Hexagon screw
|
|
| 10. |
941907
|
[2] |
Spring washer
|
|
| 11. |
949658
|
[3] |
O-ring
|
(925061)
|
| 23. |
838976
|
[1] |
Coolant pipe
|
(846053) MO 5312-
|
| 24. |
847108
|
[1] |
Pipe retainer
|
MO 5312-
|
| 25. |
847107
|
[1] |
Lock brace
|
MO 5312-
|
| 26. |
963545
|
[2] |
Hexagon screw
|
MO 5312-
|
| 32. |
847105
|
[1] |
Pipe
|
|
| 33. |
847108
|
[1] |
Pipe retainer
|
|
| 36. |
847105
|
[1] |
Pipe
|
|
| 37. |
847107
|
[1] |
Lock brace
|
|
| 38. |
963545
|
[2] |
Hexagon screw
|
|
| 39. |
838975
|
[1] |
Coolant pipe
|
(846054) MO 5312-
|
| 39A. |
847108
|
[1] |
Pipe retainer
|
MO 5312-
|
| 39B. |
949658
|
[1] |
O-ring
|
(925061) MO5312-
|
| 39C. |
838970
|
[1] |
Brace
|
MO 5312-
|
| 39D. |
807182
|
[1] |
Spacer sleeve
|
MO 5312-
|
| 39E. |
955299
|
[1] |
Hexagon screw
|
MO 5312-
|
| 40. |
846046
|
[1] |
Coolant pipe
|
|
| 41. |
952634
|
[3] |
Clamp
|
|
| 43. |
955271
|
[2] |
Hexagon screw
|
|
| 44. |
955781
|
[1] |
Hexagon nut
|
|
| 45. |
955892
|
[3] |
Washer
|
|
| 46. |
955269
|
[1] |
Hexagon screw
|
|
| 47. |
842697
|
[1] |
Pipe elbow
|
|
| 48. |
1542187
|
[1] |
Gasket
|
|
| 49. |
955305
|
[1] |
Hexagon screw
|
L=75mm
|
| 49. |
955306
|
[3] |
Hexagon screw
|
L=80mm
|
| 50. |
941907
|
[4] |
Spring washer
|
|
| 51. |
842965
|
[1] |
Pipe
|
|
| 52. |
925067
|
[2] |
O-ring
|
|
| 53. |
842614
|
[1] |
Tube
|
|
| 54. |
925065
|
[1] |
O-ring
|
|
| 55. |
843042
|
[1] |
Gasket
|
|
| 56. |
955275
|
[2] |
Hexagon screw
|
|
| 57. |
941906
|
[2] |
Spring washer
|
|
| 58. |
|
|
|
|
| 59. |
|
|
|
|
| 60. |
|
|
|
See group 9
|
