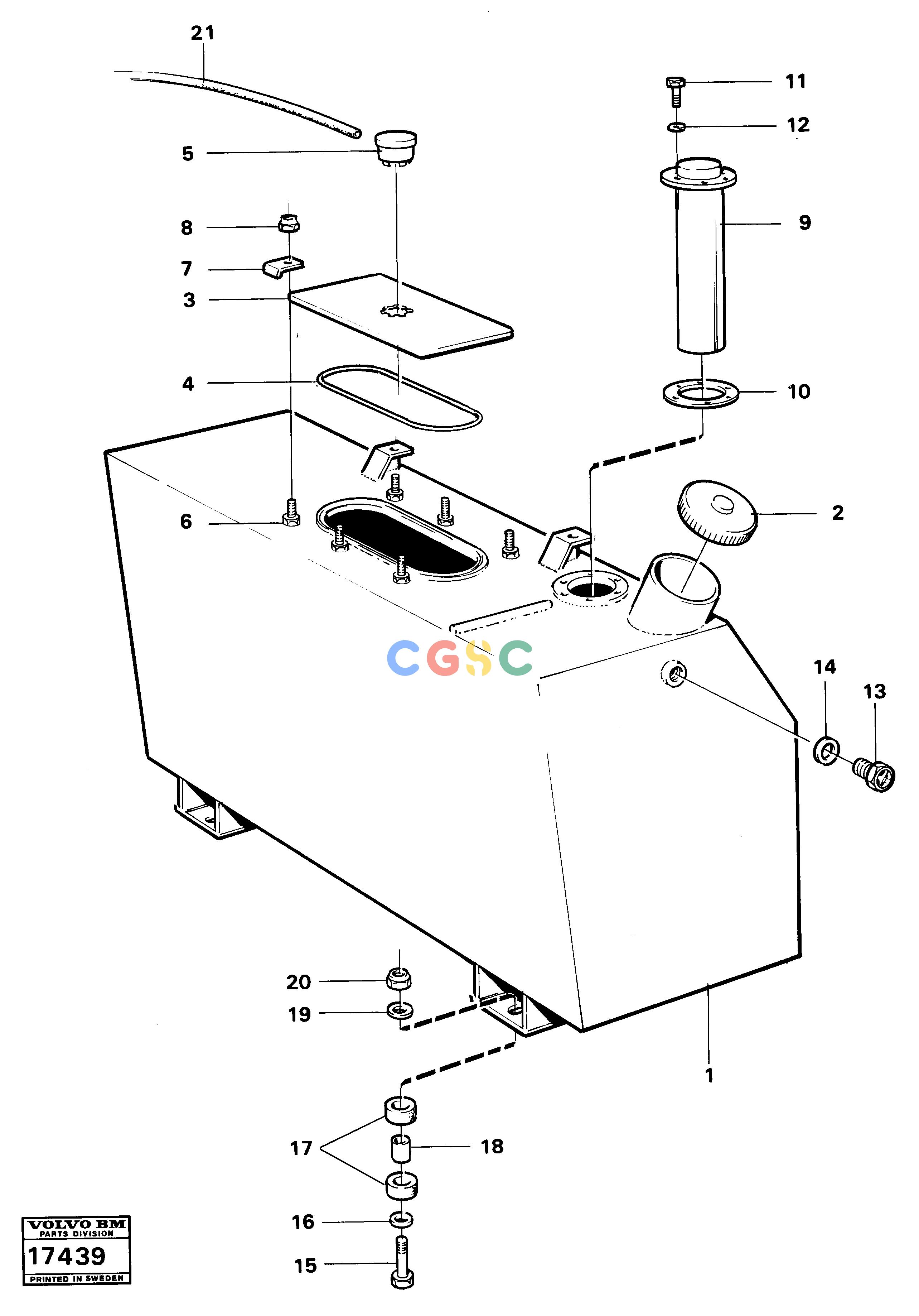

沃尔沃零件查询861 Fuel tank tillv nr 59472-861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
434 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4940398
|
[0001] |
Cover
|
|
| 6. |
VOE955297
|
[0006] |
Hexagon screw
|
|
| 7. |
VOE11018449
|
[0006] |
Clamp
|
|
| 8. |
VOE963106
|
[0006] |
Lock nut
|
|
| 9. |
VOE795584
|
[0001] |
Tank unit
|
|
| 1. |
|
[0001] |
Tank
|
|
| 10. |
VOE4708245
|
[0001] |
Gasket
|
|
| 11. |
VOE955273
|
[0006] |
Hexagon screw
|
|
| 12. |
VOE7011991
|
[0006] |
Gasket
|
|
| 13. |
VOE11063114
|
[0001] |
Level Inspection Glass
|
|
| 14. |
VOE349477
|
[0001] |
Gasket
|
|
| 15. |
VOE13970975
|
[0004] |
Hexagon screw
|
|
| 16. |
|
[0004] |
Washer
|
|
| 17. |
|
[0008] |
Rubber spacer
|
|
| 18. |
|
[0004] |
Bushing
|
|
| 19. |
VOE60110353
|
[0004] |
Washer
|
|
| 2. |
VOE1189577
|
[0001] |
Filler cap
|
LÅSBART/LOCKABL
|
| 20. |
VOE13971090
|
[0004] |
Lock nut
|
|
| 21. |
VOE192034
|
[0800] |
Rubber hose
|
|
| |
VOE1698164
|
[0001] |
Gasket
|
|
| |
VOE11991396
|
[0002] |
Key
|
|
| 3. |
|
[0001] |
Cover
|
|
| 4. |
VOE6626911
|
[0001] |
Sealing ring
|
|
